Tractor · 1997Unverified

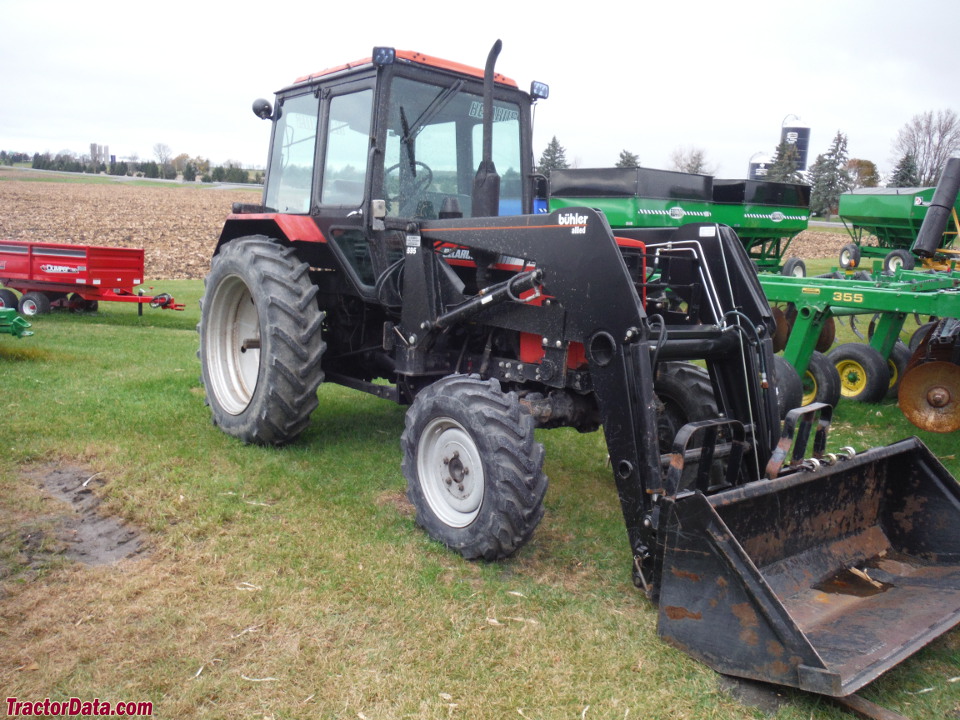

Belarus 5360
Belarus 5360 · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
7150 to 7870 pounds
Hover a source tag to verify
Overview
ManufacturerBelarusReference
Four-wheel driveReference
Differential lockhydraulic rear lockReference
Steeringhydrostatic powerReference
Mechanical dry disc brakesReference
ROPS. Cab optional.Reference
Variants
536018-speedReference
5360S9-speed shuttleReference
Engine
Belarus 4.8L 4-cyl dieselReference
Belarus D242Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.8 LReference
Bore/Stroke110 x 125 mmReference
Fuel systemdirect injectionReference
Compression16:1Reference
Rated RPM1800Reference
Idle RPM600-1930Reference
StarterelectricReference
Starter volts24Reference
Oil capacity9.9 LReference
Coolant capacity19.0 LReference
Transmission
18-speedReference
9-speed shuttleReference
Gears18 forward and 4 reverseReference
Clutchdry discReference
Oil capacity33.3 LReference
TypeshuttleReference
Gears9 forward and reverseReference
PTO & Hydraulics
PTO (claimed)48.5 kWReference
Hydraulic system18.2 LReference
Typelive open centerReference
Capacity18.2 LReference
Valves2Reference
Rear TypeIIReference
Rear lift1599 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Capacities
Fuel108.3 LReference
Dimensions
Wheelbase245 cmReference
Weight7150 to 7870 poundsReference
Front tire11.2x20Reference
Rear tire15.5x38Reference
Standard tires (ag)Front: 11.2x20. Rear: 15.5x38Reference
Length394 cmReference
Width197 cmReference
Height (hood)162 cmReference
Height (cab)276 cmReference
Shipping weight3243 kgReference
Shipping weight3569 kgReference
Ground clearance46 cmReference
Front tread145 to 180 cmReference
Rear tread145 to 210 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
