Tractor · 2011Unverified
Belarus 5530
Belarus 5530 — Compact Utility tractor · 36 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
1528 kg
Hover a source tag to verify
Overview
ManufacturerBelarusReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockrear mechanicalReference
Steeringhydrostatic powerReference
Mechanical wet disc brakesReference
Cab with heater.Reference
Engine
1.6L 3-cyl dieselReference
Fuel tank32.2 LReference
Engine26.8 kWReference
LDW 1603/B3Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke83 x 89 mmReference
Power26.8 kWReference
Rated RPM3000Reference
Transmission
16-speedReference
Gears16 forward and 8 reverseReference
Clutchdry discReference
Four gears (1-4) in two ranges (I-II) plus reverse (R) with high/low range.Reference

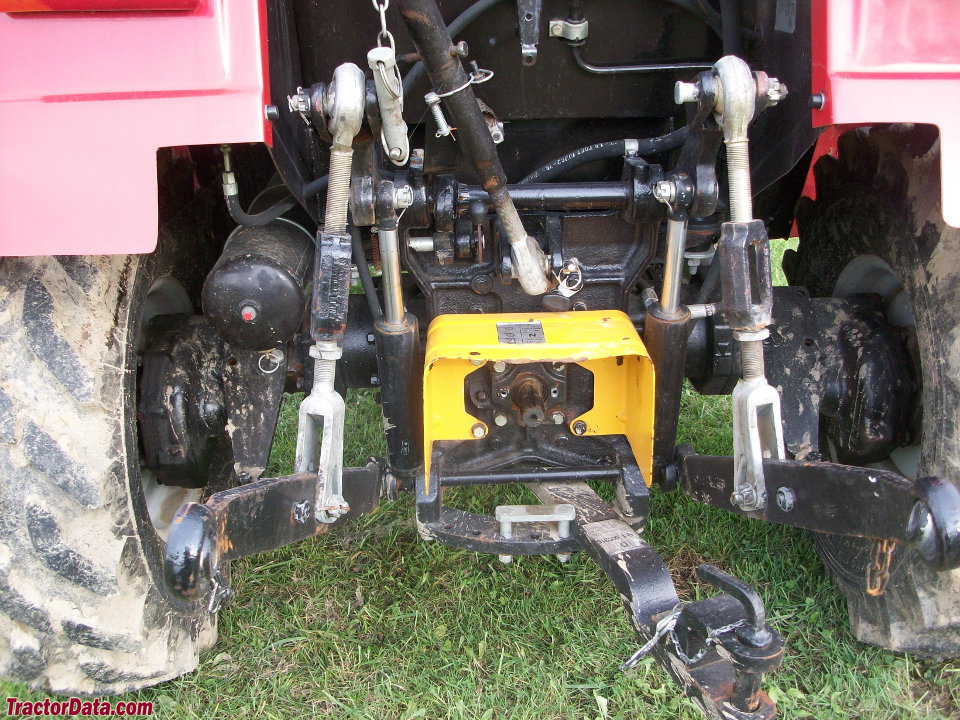

PTO & Hydraulics
Pump flow16.3 lpmReference
Rear TypeIReference
Rear lift (at ends)749 kgReference
Rear PTO Type540/1000Reference
Engine RPM540@2850Reference
Engine RPM1000@2850Reference
Dimensions
Wheelbase170 cmReference
Weight1528 kgReference
Front tire7.50x16Reference
Rear tire12.4x16Reference
Standard tires (ag)Front: 7.50x16. Rear: 12.4x16Reference
Length325 cmReference
Width169 cmReference
Height (cab)215 cmReference
Ground clearance33 cmReference
Belarus 5530 attachments

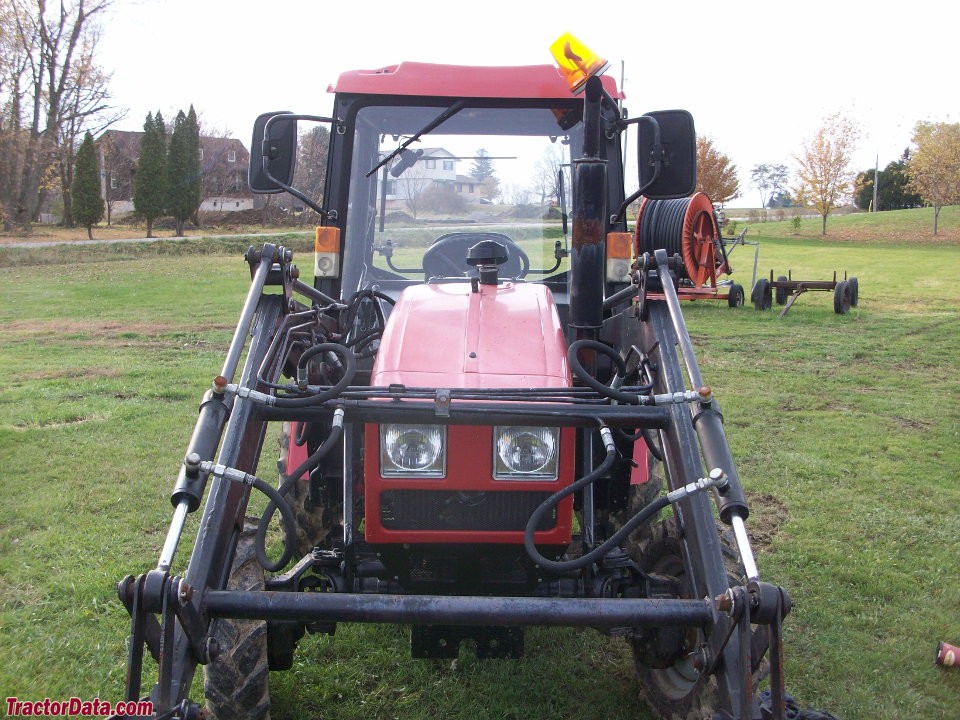

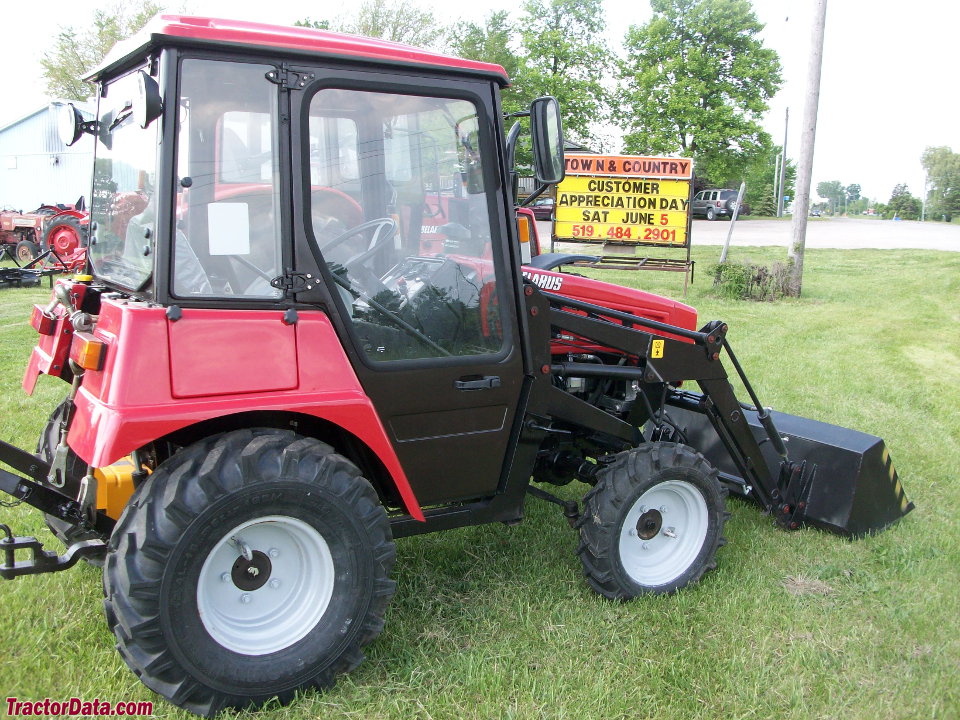

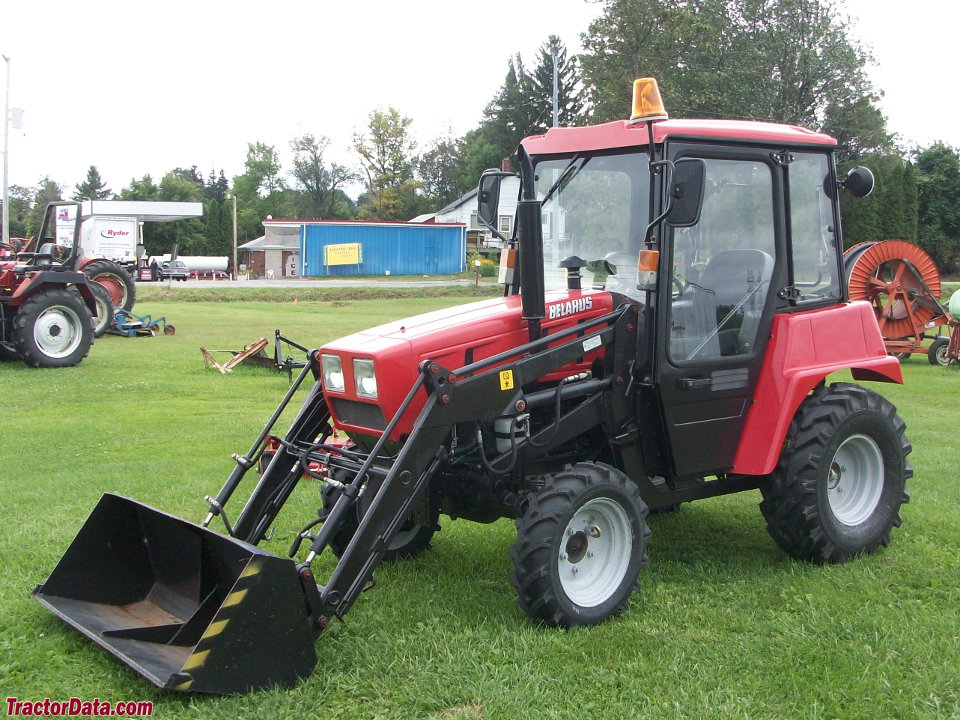

front-end loaderReference
Speeds
With 12.4Lx16 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
