Tractor · 1992Unverified

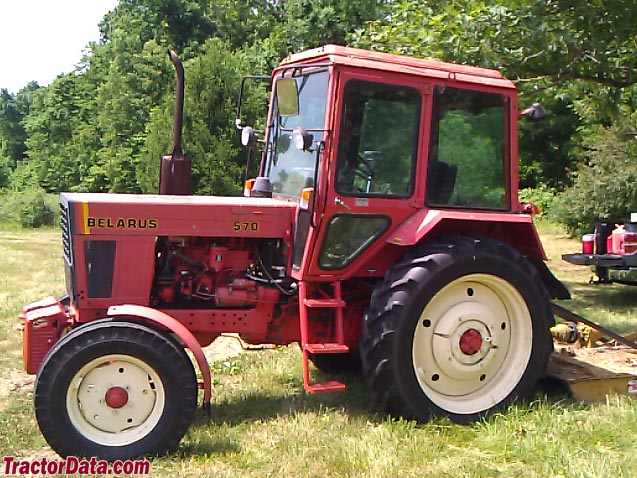

Belarus 570
Belarus 570 · 61 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
61 hp
Max power
39.9 kW
Weight
3855 kg
Hover a source tag to verify
Overview
ManufacturerBelarusReference
Built in Minsk, BelarusReference
Original price$17,000 (1996)Reference
Two-wheel driveReference
Cab with heat.Reference
Variants
5702WDReference
5724WDReference
Engine
Belarus 4.8L 4-cyl dieselReference
Drawbar (tested)39.9 kWReference
Belarus D-242Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.8 LReference
Bore/Stroke110 x 125 mmReference
Compression16:1Reference
Rated RPM1800Reference
Coolant capacity20.0 LReference
Power at rated engine speed45.7 kWReference
Max power39.9 kWReference
Transmission
18-speedReference
9-speedReference
Gears18 forward and 4 reverseReference
Gears9 forward and 2 reverseReference
PTO & Hydraulics
PTO (tested)45.7 kWReference
Hydraulic system20.4 LReference
TypeopenReference
Capacity20.4 LReference
Valves2Reference
Total flow38.6 lpmReference
Rear TypeIIReference
Rear lift1980 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Power at rated PTO speed44.3 kWReference
Capacities
Fuel129.8 LReference
Dimensions
Wheelbase237 cmReference
Weight3855 kgReference
Front tire7.50-20Reference
Rear tire15.5-38Reference
Ag front7.50-20Reference
Ag rear15.5-38Reference
Length382 cmReference
Width197 cmReference
Height (cab)277 cmReference
Test results
Diesel 18-speed 4WDOctober 16 - 25, 1991Link: Nebraska Tractor Test 1655 fileReference
PTO performanceReference
Fuel use13.6 l/hourReference
Fuel use12.9 l/hourReference
Drawbar performanceReference
Fuel use13.2 l/hourReference
Gear 5H used for power test.Reference
Max pull4228 kgReference
Gear 2H used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
