Tractor · 1997Unverified

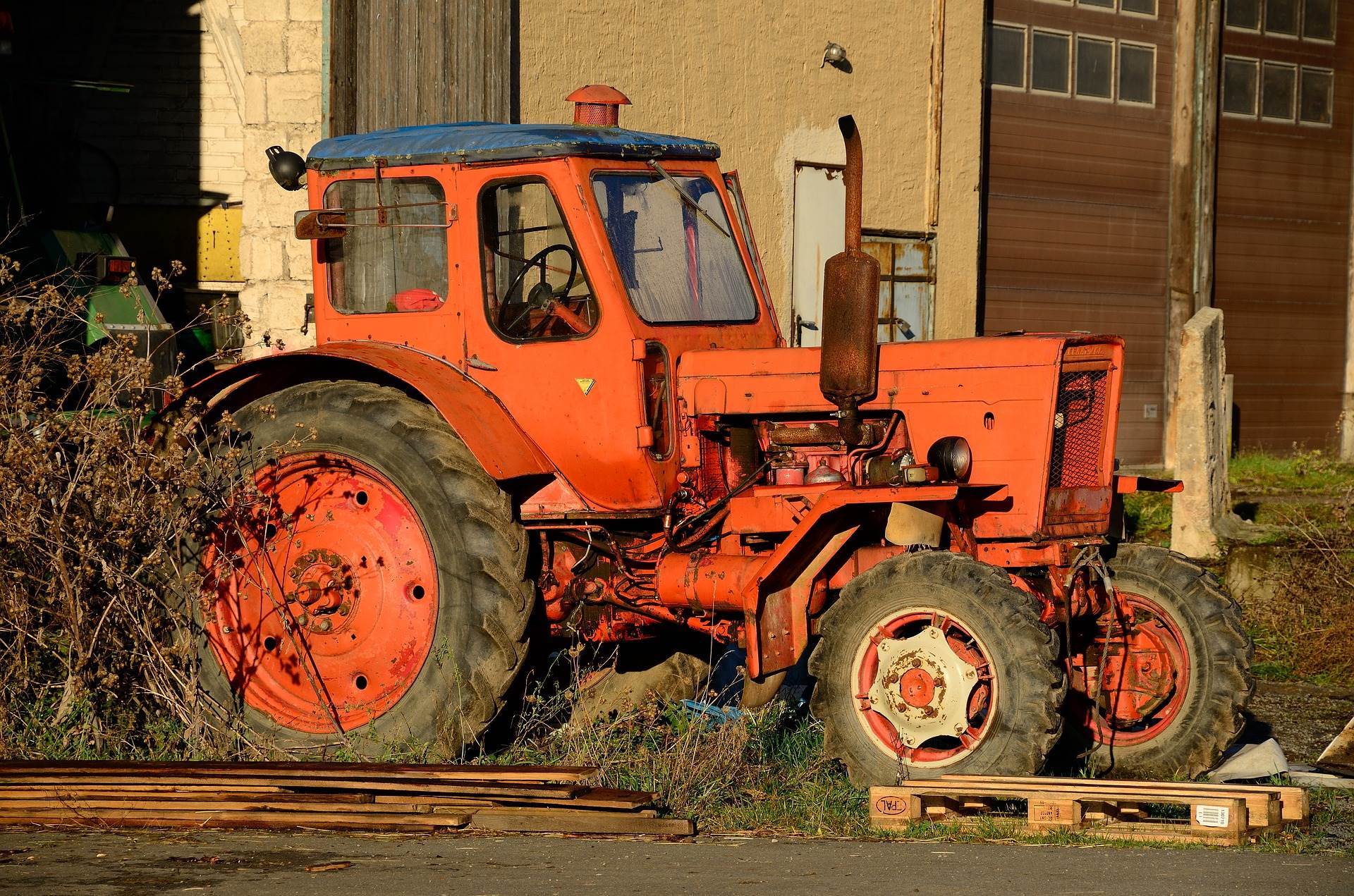

Belarus 9045
Belarus 9045 — Row-Crop tractor · 93 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
93 hp
Max power
60.7 kW
Weight
3764 kg
Hover a source tag to verify
Overview
ManufacturerBelarusReference
Row-Crop tractorReference
Built in Minsk, BelarusReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Dry disc brakesReference
ROPS.Reference
Engine
Belarus 4.7L 4-cyl dieselReference
Engine73.1 kWReference
Drawbar (tested)60.7 kWReference
Belarus D245.5Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.7 LReference
Bore/Stroke110 x 125 mmReference
Power73.1 kWReference
Air cleaneroil bathReference
Compression16:1Reference
Rated RPM1800Reference
Starter volts24Reference
Oil capacity15.1 LReference
Coolant capacity18.9 LReference
Power at rated engine speed69.6 kWReference
Max power60.7 kWReference
Transmission
14-speed partially synchronizedReference
Typepartially synchronizedReference
Gears14 forward and 4 reverseReference
Clutchdry discReference
Oil capacity39.7 LReference
Seven gears (1-7) in two ranges (low/high). Synchronized shifting in gears three to seven. Lower gear, range, and shuttle shifting is not synchronized.Reference
PTO & Hydraulics
PTO (claimed)55.9 kWReference
PTO (tested)69.6 kWReference
Hydraulic system21.8 LReference
TypeopenReference
Capacity21.8 LReference
Valves2Reference
Pump flow45.4 lpmReference
Rear TypeIIReference
Rear lift (at ends)1980 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1632Reference
Engine RPM1000@1673Reference
Power at rated PTO speed66.2 kWReference
Capacities
Fuel128.7 LReference
Dimensions
Wheelbase243 cmReference
Weight3764 kgReference
Front tire14.2-20Reference
Rear tire16.9-38Reference
Ag front14.2-20Reference
Ag rear16.9-38Reference
Test results
Diesel 14-speed 4WDOctober 28 - November 7, 1997Link: OCED Tractor Test 1743 fileReference
PTO performanceReference
Fuel use22.0 l/hourReference
Fuel use20.4 l/hourReference
Drawbar performanceReference
Gear 6L used for power test.Reference
Max pull3753 kgReference
Gear 3L used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
