Tractor · 1984Unverified

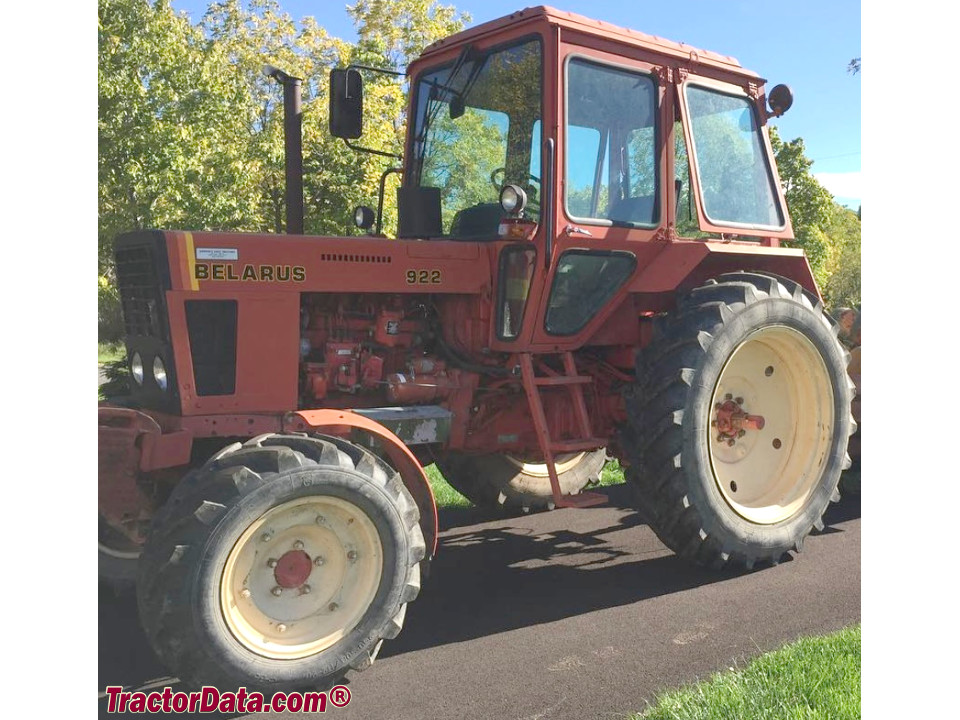

Belarus 922
Belarus 922 — Row-Crop tractor · 88 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
88 hp
Weight
3569 kg
Hover a source tag to verify
Overview
ManufacturerBelarusReference
Row-Crop tractorReference
Built in Minsk, BelarusReference
Original price was $23,000 in 1993Reference
Two-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Disc brakesReference
Cab standard with heat.Reference
Engine
Belarus 4.7L 4-cyl dieselReference
Engine74.6 kWReference
BelarusReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.7 LReference
Bore/Stroke110 x 125 mmReference
Power74.6 kWReference
Air cleaneroil bathReference
Compression16:1Reference
Rated RPM2200Reference
Torque267.1 NmReference
Torque RPM1000Reference
StarterelectricReference
Starter volts24Reference
Oil capacity15.0 LReference
Coolant capacity20.0 LReference
Transmission
18-speed gearReference
TypegearReference
Gears18 forward and 4 reverseReference
Clutch325.1mm dry discReference
Oil capacity39.9 LReference
PTO & Hydraulics
PTO (claimed)65.6 kWReference
Hydraulic system20.4 LReference
Typeopen centerReference
Capacity20.4 LReference
Pressure156.8 barReference
Valves2Reference
Pump flow44.7 lpmReference
Steering cap.6.0 LReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)1995 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2068Reference
Engine RPM1000@2158Reference
Capacities
Fuel129.8 LReference
Steering6.0 LReference
Dimensions
Wheelbase245 cmReference
Weight3569 kgReference
Front tire11.2-20Reference
Rear tire15.5-38Reference
Ag front11.2-20Reference
Ag rear15.5-38Reference
Ag rear15x30Reference
Shipping weight3569 kgReference
Front tread119 to 180 cmReference
Rear tread119 to 180 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
