Tractor · 2004Unverified

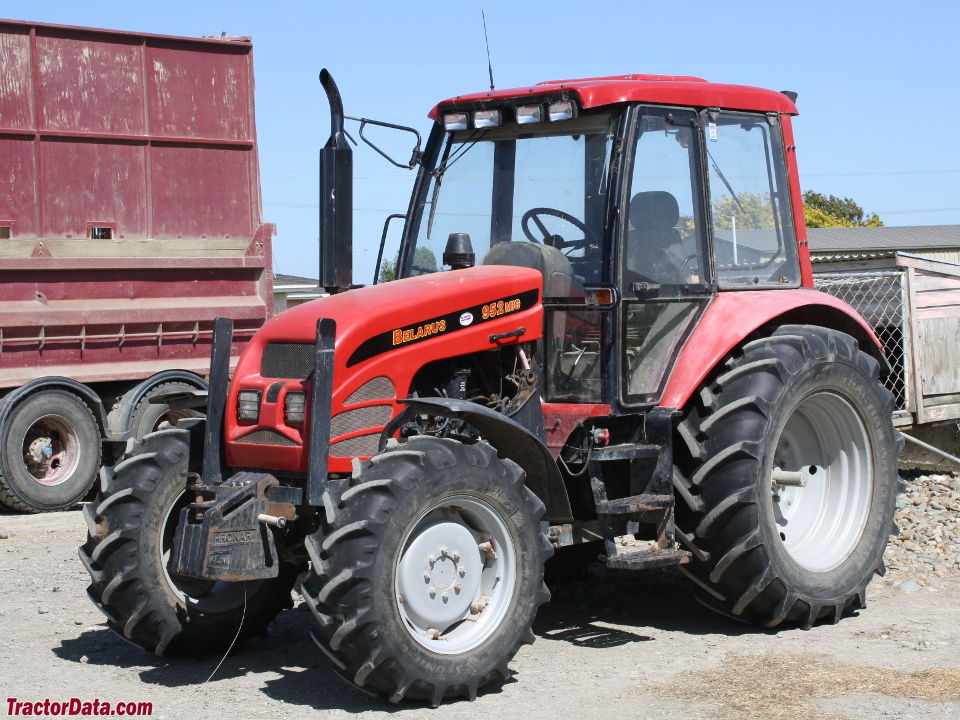

Belarus 952 MIG
Belarus 952 MIG — MIG Series · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
4010 kg
Hover a source tag to verify
Overview
DistributorBelarusReference
ManufacturerPronarReference
Utility tractorReference
Built in PolandReference
Differential lockhydraulicReference
Power steeringReference
Dry disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Belarus 4.8L 4-cyl dieselReference
Engine78.3 kWReference
Belarus D-245.5cReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.8 LReference
Bore/Stroke110 x 125 mmReference
Power78.3 kWReference
Fuel systemdirect injectionReference
Rated RPM1800Reference
StarterelectricReference
Starter volts24Reference
Oil capacity14.0 LReference
Coolant capacity20.0 LReference
Transmission
9-speed synchromeshReference
14-speedReference
TypesynchromeshReference
Gears9 forward and 8 reverseReference
Clutchdry discReference
Oil capacity40.0 LReference
Gears14 forward and 4 reverseReference
Capacities
Fuel129.8 LReference
PTO & Hydraulics
Hydraulic system22.0 LReference
Typeopen centerReference
Capacity22.0 LReference
Valves3Reference
Pump flow48.1 lpmReference
Rear TypeIIReference
Rear lift3700 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Weight4010 kgReference
Front tire360/70R24Reference
Rear tire480/70R34Reference
Ag front360/70R24Reference
Ag rear480/70R34Reference
Length409 cmReference
Width197 cmReference
Height279 cmReference
Clearance (front axle)44 cmReference
Clearance (rear axle)38 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
