Tractor · 1968Unverified

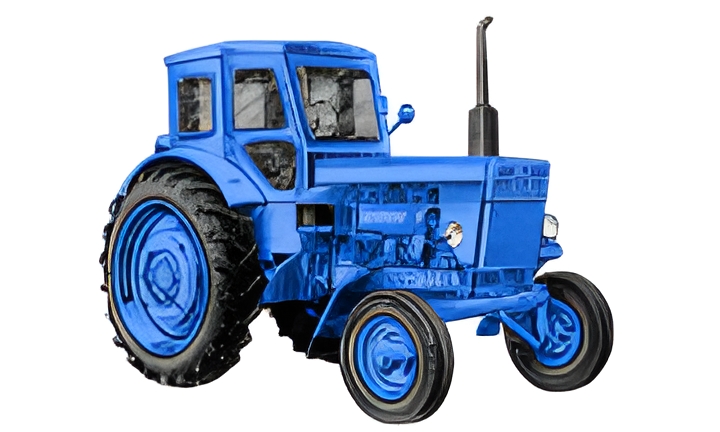

Belarus LTZ-40

Name: Belarus LTZ-40
Brand: Belarus

Belarus LTZ-40 — Row-Crop tractor · 50 hp. Reference specifications; pending source verification.

The Belarus LTZ-40 is a tractor with a rated power of 50 hp, situated at the lighter end of its class. It was manufactured between 1968 and 1973. The tractor is equipped with a 4-cylinder diesel air-cooled engine and features four-wheel drive with a 7-speed gearbox. Its operating weight ranges from 5623 to 6064 pounds, suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

50 hp

Weight

5623 to 6064 pounds

Catalogue coverage

Variants represented

Richest spec table

42 rows

Recorded power

50 hp

Recorded weight

2550 kg

Transmissions

7-speed gear

Production years

1968-1973

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerBelarusReference

Row-Crop tractorReference

Built in Lipetsk, RussiaReference

Marketed as "Belarus LTZ-40" in the West, the T-40M was the successor to the original Lipetsk-built T-40 offering the D-144 engine and a new hood. In some markets, the T-40AM was sold as the T-40A Super.Reference

Two- or four-wheel driveReference

Steeringpower assistReference

Band brakesReference

Cab standard.Reference

Variants

T-40M2WDReference

T-40AM4WDReference

Engine

Vladimir 4.1L 4-cyl dieselReference

Fuel tank74.2 LReference

Engine37.3 kWReference

Vladimir D-144Reference

dieselReference

4-cylinderReference

air-cooledReference

Displacement4.1 LReference

Bore/Stroke105 x 120 mmReference

Power37.3 kWReference

Rated RPM1800Reference

Torque219.0 NmReference

Torque RPM1050Reference

Transmission

7-speed gearReference

TypegearReference

Gears7 forward and 1 reverseReference

Seven gears, plus reverse, with creeper range. The two highest gears should not be used in creeper range. Russian literature refers to the lowest gear as "slow" and the next gear as "first".Reference

PTO & Hydraulics

Total flow43.1 lpmReference

Rear lift2000 kgReference

Rear PTO Type540/groundReference

Dimensions

Wheelbase227 cmReference

Weight5623 to 6064 poundsReference

Front tire6.50-16Reference

Rear tire13.6-38Reference

Ag front6.50-16Reference

Ag rear13.6-38Reference

Ag front8.00-20Reference

Length384 cmReference

Width210 cmReference

Height (cab)236 cmReference

2WD Weight2550 kgReference

4WD Weight2750 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
