Tractor · 1984Unverified

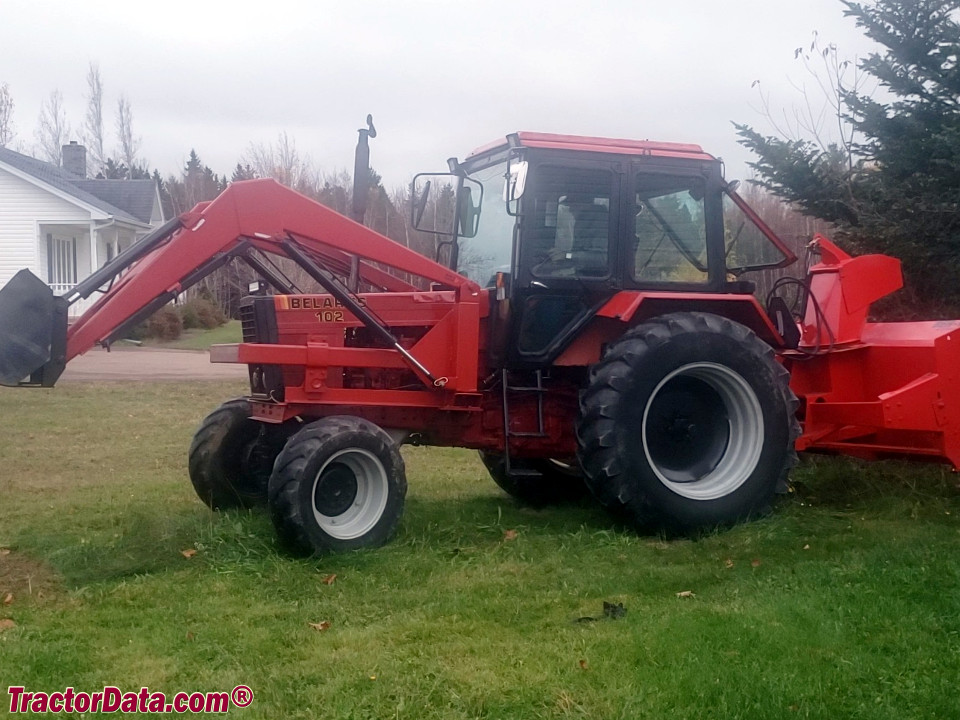

Belarus MTZ-102
Belarus MTZ-102 — Row-Crop tractor · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
8580 to 9020 pounds
Hover a source tag to verify
Overview
ManufacturerBelarusReference
Row-Crop tractorReference
Built in Minsk, BelarusReference
Two- or four-wheel driveReference
Differential lockhydraulic rearReference
Power steeringReference
Mechanical dry disc brakesReference
Variants
MTZ-1002WDReference
Engine
Belarus 4.8L 4-cyl dieselReference
BelarusReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.8 LReference
Bore/Stroke110 x 125 mmReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Compression16:1Reference
Rated RPM2200Reference
Idle RPM600-2385Reference
StarterelectricReference
Starter volts24Reference
Oil capacity15.0 LReference
Coolant capacity19.0 LReference
Transmission
24-speedReference
Gears24 forward and 8 reverseReference
Clutchdry discReference
Oil capacity40.0 LReference
Four gears in six ranges, plus two reverse ranges.Reference
PTO & Hydraulics
PTO (claimed)74.6 kWReference
Hydraulic system22.0 LReference
Typeopen centerReference
Capacity22.0 LReference
Pressure182.0 barReference
Valves3Reference
Pump flow62.8 lpmReference
Rear TypeIIReference
Rear lift2993 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Capacities
Fuel155.9 LReference
Dimensions
2WD Wheelbase249 cmReference
4WD Wheelbase257 cmReference
Weight8580 to 9020 poundsReference
Front tire9.00-20Reference
2WD Rear tire18.4-34Reference
2WD Standard tires (ag)Front: 9.00-20. Rear: 18.4-34Reference
4WD Standard tires (ag)Front: 13.6-20. Rear: 18.4-34Reference
Ag rear15.5-38Reference
2WD Ag rear18.4-38Reference
4WD Ag rear15.5-38Reference
2WD Length411 cmReference
4WD Length420 cmReference
Width196 cmReference
2WD Weight3891 kgReference
4WD Weight4091 kgReference
Ground clearance46 cmReference
2WD Front tread124 to 184 cmReference
4WD Front tread134 to 180 cmReference
Rear tread139 to 210 cmReference
Electrical
Charging systemalternatorReference
Belarus MTZ-102 Height
2WD Hood165 cmReference
4WD Hood168 cmReference
Cab278 cmReference
Speeds
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
