Tractor · 1962Unverified

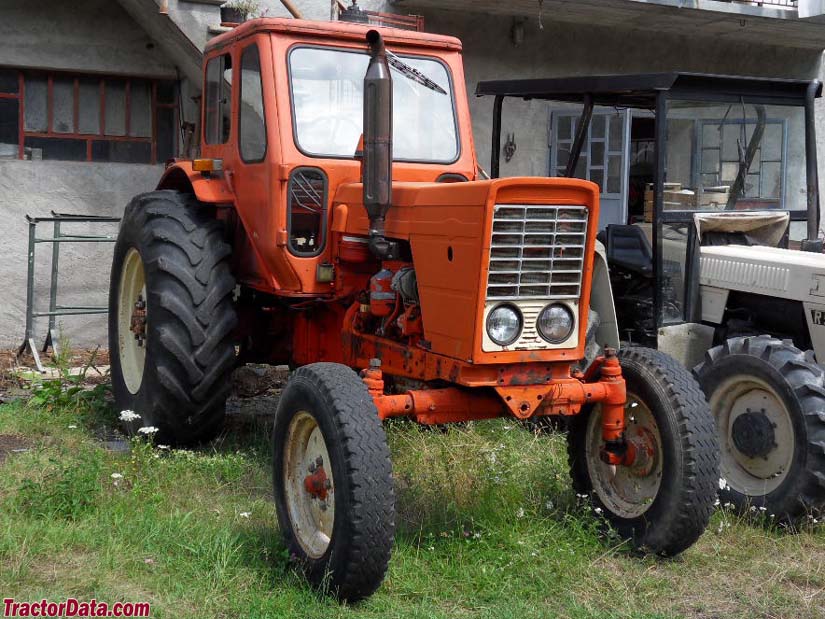

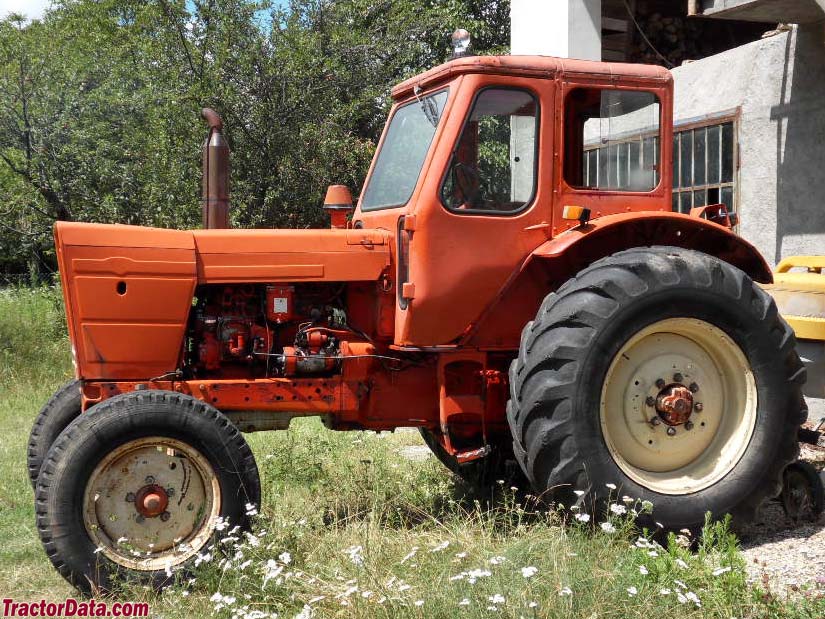

Belarus MTZ-50
Belarus MTZ-50 — Row-Crop tractor · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
2790 kg
Hover a source tag to verify
Overview
ManufacturerBelarusReference
Row-Crop tractorReference
Built in Minsk, BelarusReference
Two-wheel driveReference
Steeringpower assistReference
Disc brakesReference
Cab standard.Reference
Variants
MTZ-502WDReference
MTZ-524WDReference
Engine
Belarus 4.7L 4-cyl dieselReference
Fuel tank99.9 LReference
Engine41.0 kWReference
Belarus D50Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.7 LReference
Bore/Stroke110 x 125 mmReference
Power41.0 kWReference
Compression16:1Reference
Rated RPM1700Reference
Torque255.1 NmReference
Torque RPM1100Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starterpony motorReference
Starter volts12Reference
Oil capacity12.0 LReference
Coolant capacity20.0 LReference
Coolant capacity22.1 LReference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 2 reverseReference
Clutchdry discReference
Oil capacity39.9 LReference
PTO & Hydraulics
Typeopen centerReference
Total flow45.0 lpmReference
Rear lift2000 kgReference
Rear PTO Type540/groundReference
Dimensions
Wheelbase236 cmReference
Weight2790 kgReference
Front tire7.5-16Reference
Rear tire13.6/12-38Reference
Ag front7.5-16Reference
Ag rear13.6/12-38Reference
Length381 cmReference
Width197 cmReference
Height (cab)248 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
