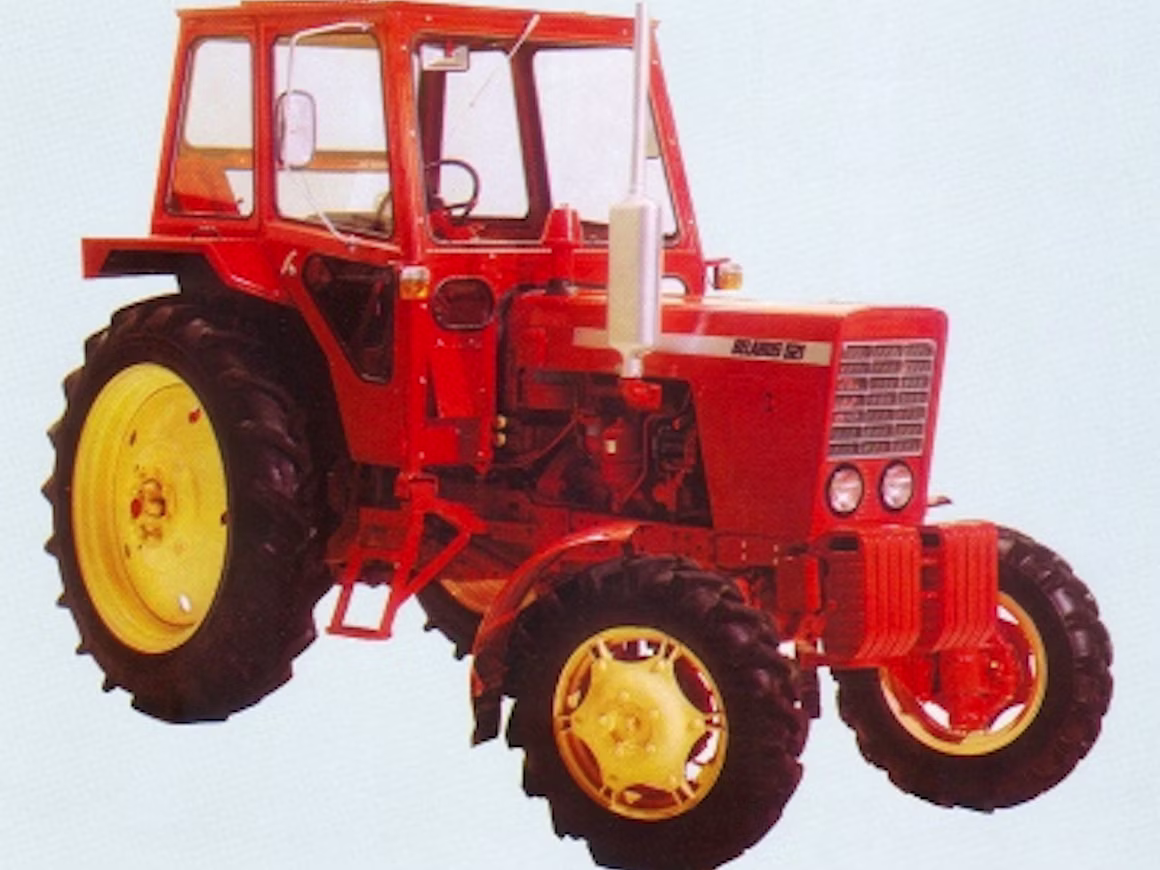

The Belarus MTZ-505 is a tractor with a rated output of 67 hp, placing it within the mid-range of its class in terms of power. It was manufactured from 1977 to 1983. The tractor features a 4-cylinder engine, coupled with a hydrostatic transmission and four-wheel drive, and has a listed weight of 3450 kg. It is designed for use on plots of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
67 hp
Weight
3450 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
67 hp
Recorded weight
3450 kg
Transmissions
9-speed
Production years
1977-1983
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerBelarusReference
Two-wheel driveReference
Steeringhydrostatic powerReference
Disc brakesReference
standardReference
Variants
MTZ-5254WDReference
Engine
4.7L 4-cylReference
Fuel tank110.1 LReference
Engine50.0 kWReference
D60Reference
4-cylinderReference
Displacement4.7 LReference
Bore/Stroke110 x 125 mmReference
Power50.0 kWReference
Rated RPM1800Reference
Torque262.1 NmReference
Torque RPM1100Reference
Transmission
9-speedReference
Gears9 forward and 2 reverseReference
PTO & Hydraulics
Total flow50.0 lpmReference
Rear lift2700 kgReference
Rear PTO Type540/groundReference
Dimensions
Wheelbase245 cmReference
Weight3450 kgReference
Front tire7.50-20Reference
Rear tire13.6-38Reference
Ag front7.50-20Reference
Ag rear13.6-38Reference
Length385 cmReference
Height278 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
