Tractor · 1972Unverified

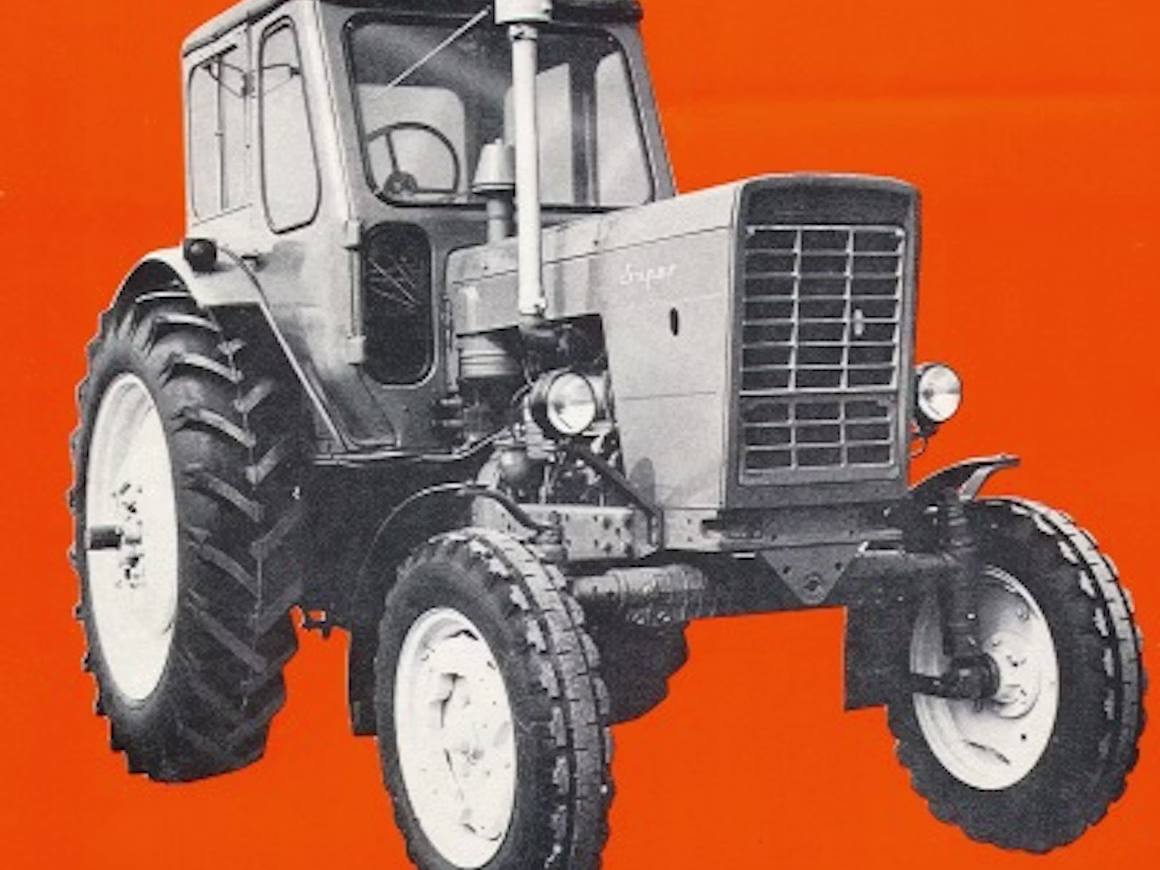

Belarus MTZ-520
Belarus MTZ-520 · 67 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
67 hp
Weight
3290 kg
Hover a source tag to verify
Overview
ManufacturerBelarusReference
Four-wheel driveReference
Steeringpower assistReference
Disc brakesReference
standardReference
Variants
MTZ-5002WDReference
Engine
4.7L 4-cylReference
Engine50.0 kWReference
D60Reference
4-cylinderReference
Displacement4.7 LReference
Bore/Stroke110 x 125 mmReference
Power50.0 kWReference
Rated RPM1800Reference
Torque262.1 NmReference
Torque RPM1100Reference
Transmission
9-speedReference
Gears9 forward and 2 reverseReference
PTO & Hydraulics
Total flow50.0 lpmReference
Rear lift2000 kgReference
Rear PTO Type540/groundReference
Dimensions
Wheelbase245 cmReference
Weight3290 kgReference
Front tire8.00-20Reference
Rear tire13.6-38Reference
Ag front8.00-20Reference
Ag rear13.6-38Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
