Tractor · 1977Unverified

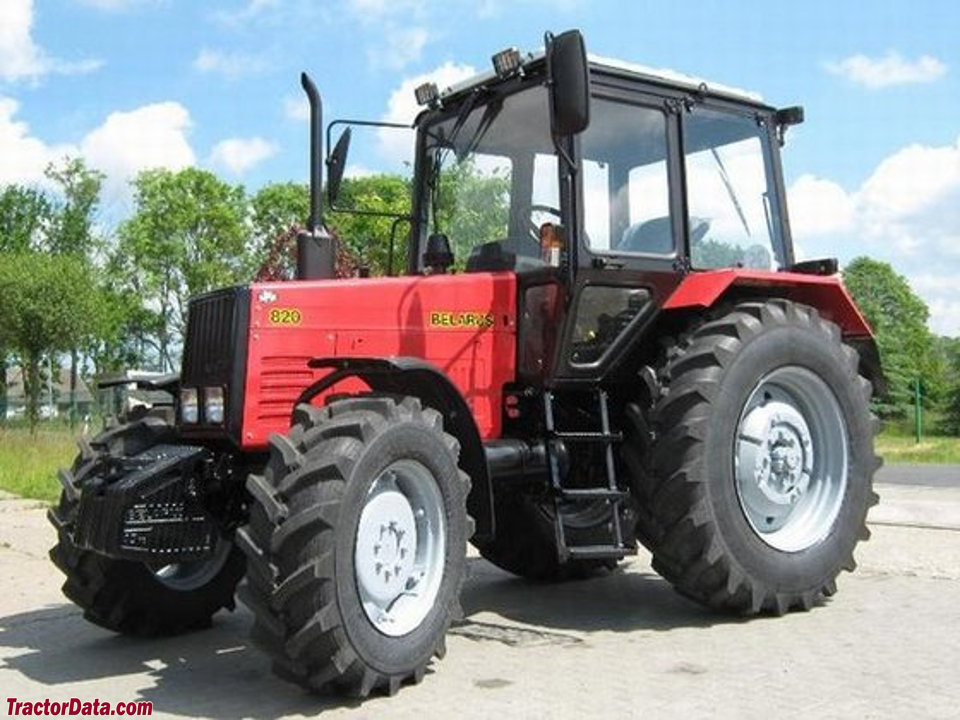

Belarus MTZ-820
Belarus MTZ-820 — Row-Crop tractor · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
3855 kg
Hover a source tag to verify
Overview
ManufacturerBelarusReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Disc brakesReference
Cab standard.Reference
Variants
MTZ-8002WDReference
MTZ-8204WDReference
Engine
4.7L 4-cyl dieselReference
Fuel tank110.1 LReference
Engine59.7 kWReference
D-240Reference
dieselReference
4-cylinderReference
Displacement4.7 LReference
Bore/Stroke110 x 125 mmReference
Power59.7 kWReference
Rated RPM2200Reference
Torque275.0 NmReference
Torque RPM1400Reference
Transmission
18-speedReference
Gears18 forward and 4 reverseReference
PTO & Hydraulics
Total flow50.0 lpmReference
Rear lift2700 kgReference
Rear PTO Type540/1000/groundReference
Dimensions
Wheelbase245 cmReference
Weight3855 kgReference
Front tire8.30-20Reference
Rear tire15.5-38Reference
Ag front8.30-20Reference
Ag rear15.5-38Reference
Length404 cmReference
Height278 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
