Tractor · 1986Unverified
Benye 254

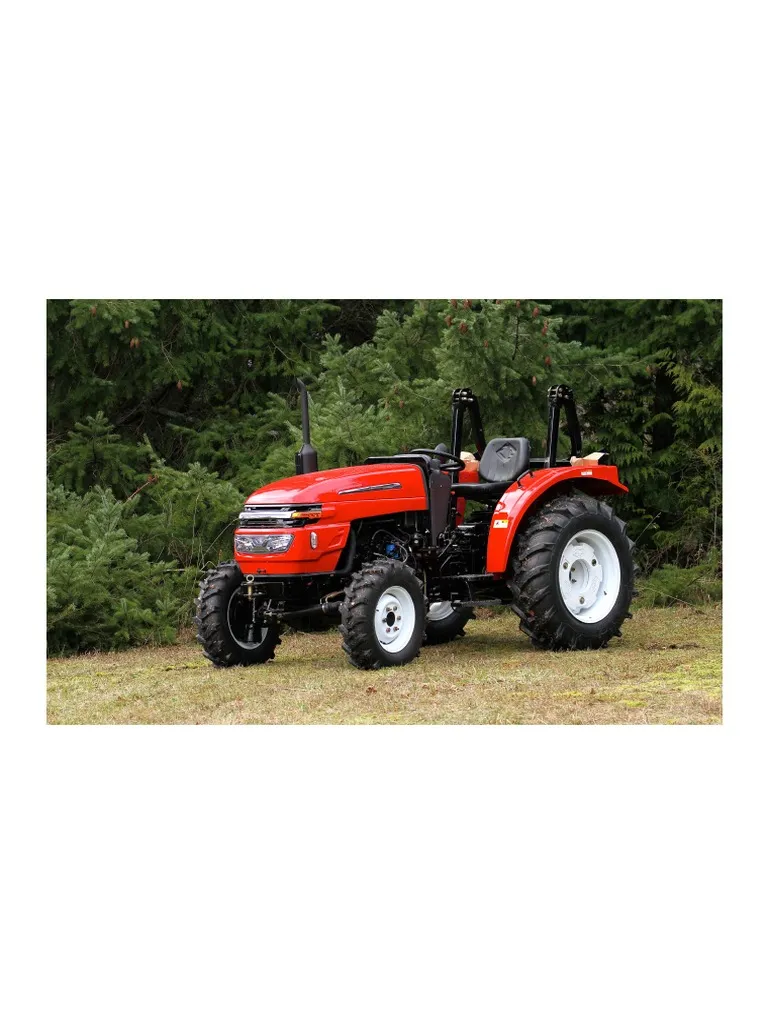

Benye 254 — Compact Utility tractor · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1230 kg
Hover a source tag to verify
Overview
ManufacturerBenyeReference
Compact Utility tractorReference
Built in Ningbo, ChinaReference
Four-wheel driveReference
Final drivesspur gearReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
2502WDReference
2544WDReference
Engine
Ningbo Engine Works 1.6L 2-cyl dieselReference
Engine17.7 kWReference
Ningbo Engine Works 295Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke95 x 115 mmReference
Power17.7 kWReference
Rated RPM2000Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Four gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear TypeIReference
Rear lift (at ends)893 kgReference
Clutch540:1773Reference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase154 cmReference
Weight1230 kgReference
Front tire4.00-16Reference
Rear tire9.5-24Reference
Ag front4.00-16Reference
Ag rear9.5-24Reference
Length275 cmReference
Height (exhaust)211 cmReference
Front tread100 to 139 cmReference
Rear tread100 to 139 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
