Tractor · 1950Unverified

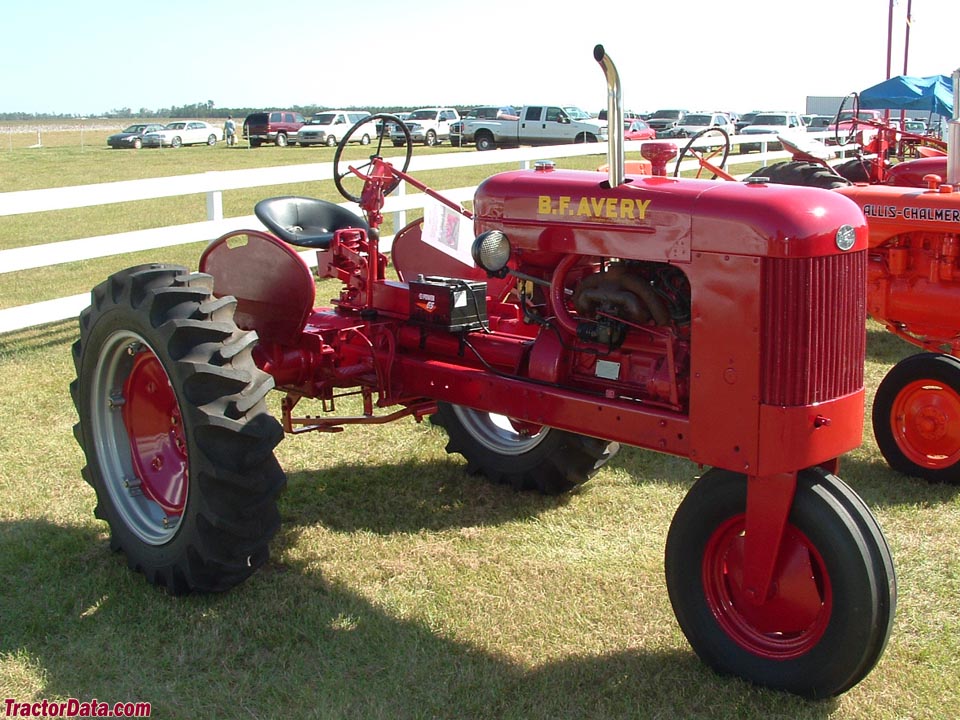

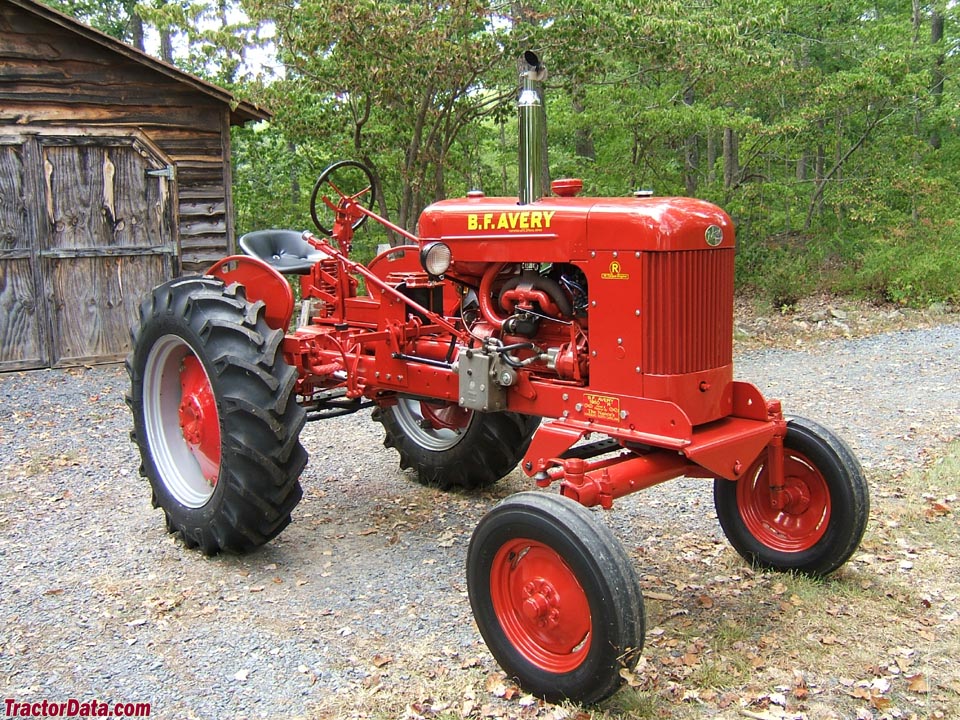

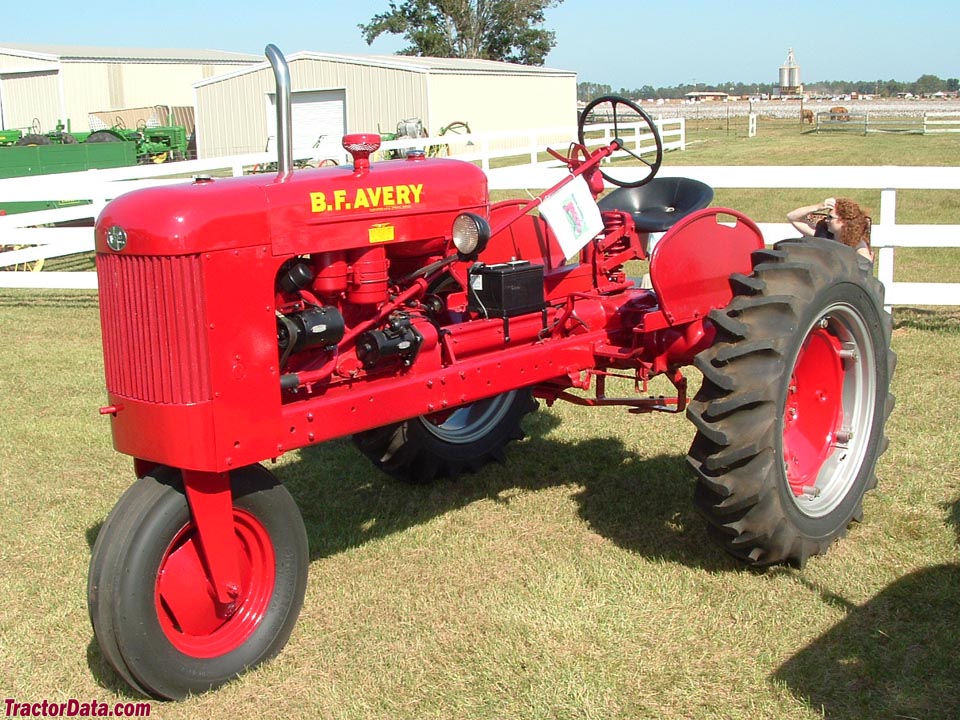

B.F. Avery R
B.F. Avery R · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
2735 to 2900 pounds
Hover a source tag to verify
Overview
ManufacturerB.F. AveryReference
Built in Louisville, Kentucy, USAReference
Two-wheel driveReference
SteeringmanualReference
Differential mechanical band brakesReference
Open operator station.Reference
Engine
Hercules 2.2L 4-cyl gasolineReference
Engine18.6 kWReference
Plows2Reference
Hercules IXB-3Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke83 x 102 mmReference
Power18.6 kWReference
Rated RPM1800Reference
Transmission
4-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears4 forward and 1 reverseReference
Dimensions
Weight2735 to 2900 poundsReference
Front tire5x15Reference
Rear tire10x28Reference
Ag front5x15Reference
Ag front6x16 (single-front)Reference
Ag rear10x28Reference
Tricycle Length296 cmReference
Wide-front Length300 cmReference
Tricycle Width202 cmReference
Wide-front Width209 cmReference
Height193 cmReference
Tricycle Shipping weight1240 kgReference
Wide-front Shipping weight1315 kgReference
Wide-front Ground clearance55 cmReference
Tricycle Ground clearance66 cmReference
Front tread132 to 182 cmReference
Rear tread132 to 193 cmReference
R Serial Numbers
1950R500Reference
1951R4459Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
