Tractor · 1946Unverified

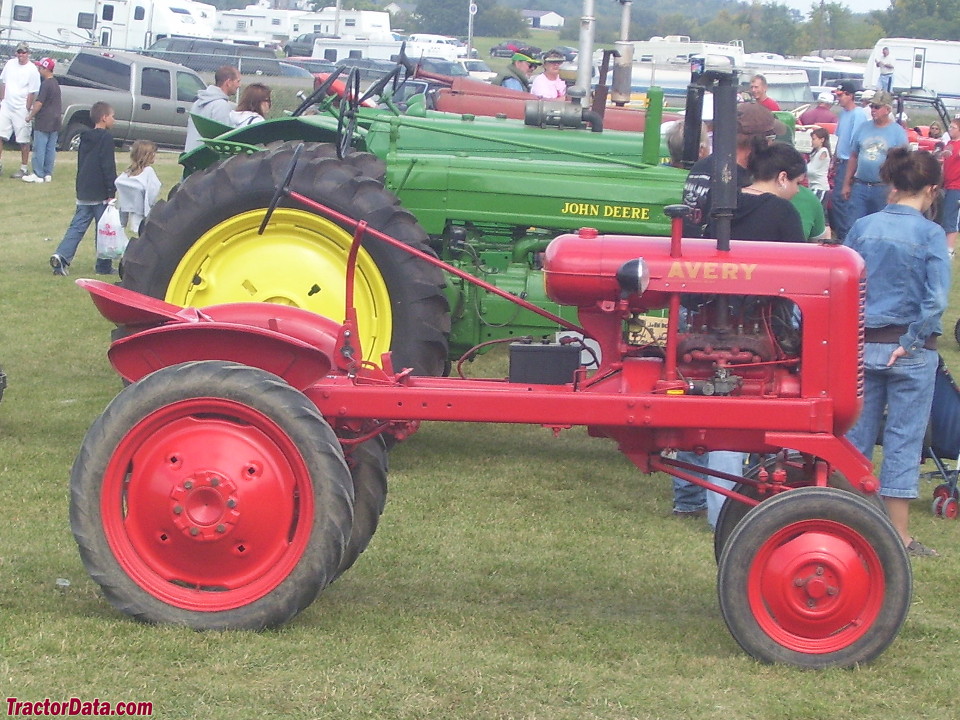

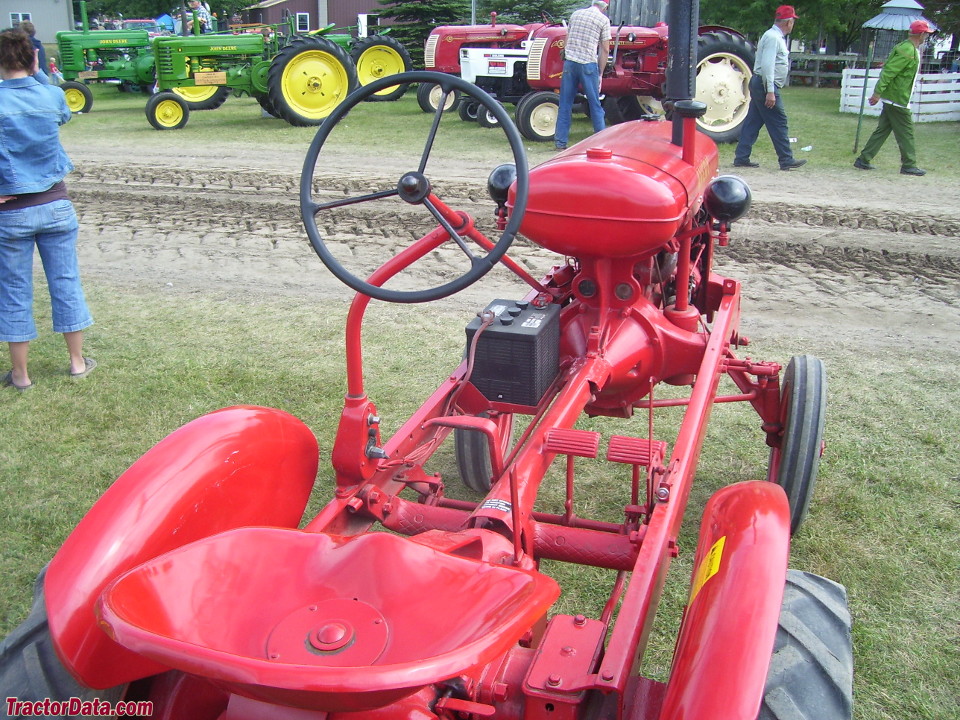

B.F. Avery V
B.F. Avery V — Row-Crop tractor · 9 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
9 hp
Weight
731 kg
Hover a source tag to verify
Overview
ManufacturerB.F. AveryReference
Row-Crop tractorReference
Built in Louisville, Kentucky, USAReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Hercules 1.1L 4-cyl gasolineReference
Fuel tank6.6 LReference
Engine6.7 kWReference
Plows1 (14-inch)Reference
Hercules ZXB-3Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke67 x 76 mmReference
Power6.7 kWReference
Air cleaneroil bathReference
Rated RPM1800Reference
StarterelectricReference
Starter volts6Reference
Oil capacity2.8 LReference
Coolant capacity5.7 LReference
Transmission
3-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears3 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.125)Reference
Dimensions
Wheelbase187 cmReference
Weight731 kgReference
Front tire4.00-15Reference
Rear tire8-24Reference
Ag front4.00-15Reference
Ag rear8-24Reference
Ag rear9-24Reference
Length266 cmReference
Width129 cmReference
Height155 cmReference
Ground clearance58 cmReference
Front tread101 cmReference
Rear tread101 cmReference
V Serial Numbers
Location:Serial number stamped into the tractor's frame.Reference
19461V005Reference
19471V144Reference
19482V577Reference
19494V491Reference
19505V501Reference
19516V207Reference
19526V422Reference
Final7V271Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter15 cmReference
Width13 cmReference
RPM540Reference
Speed944.88 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
