Tractor · 1979Unverified

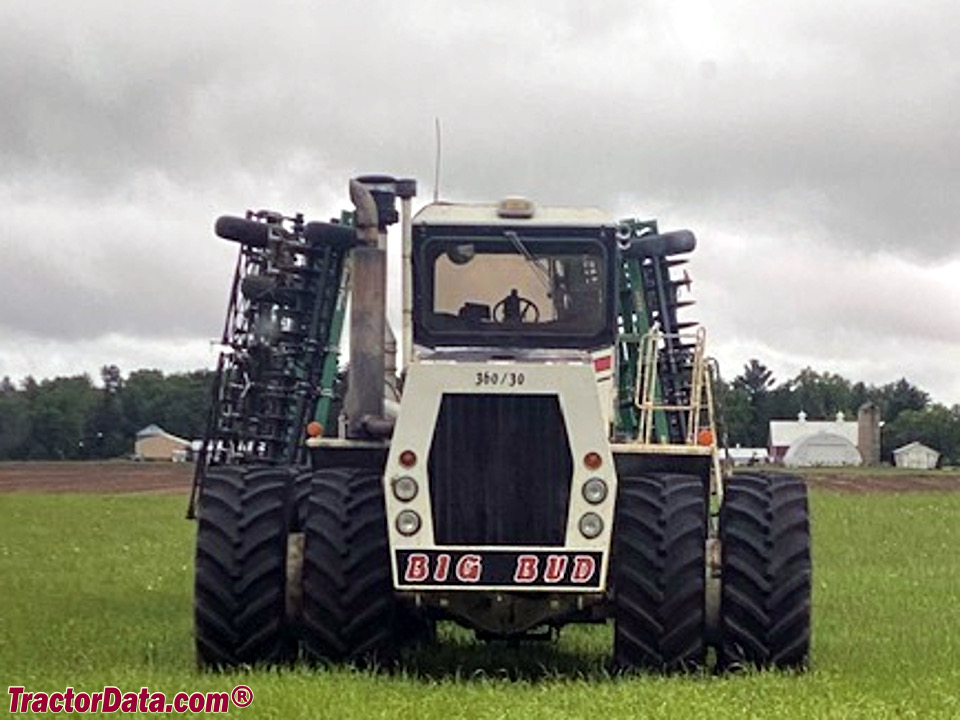

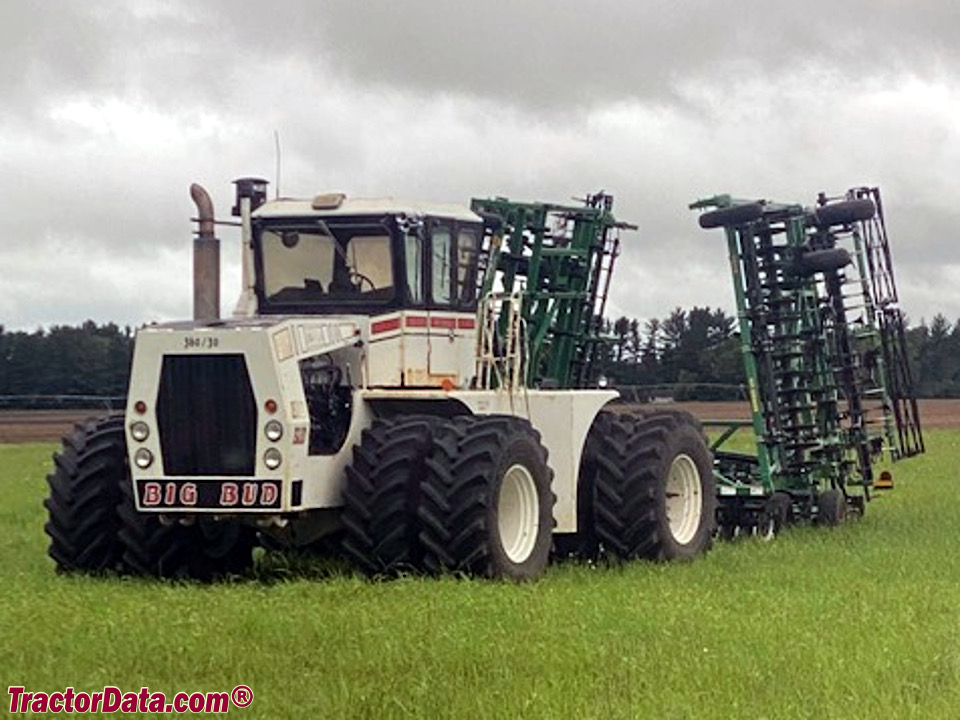

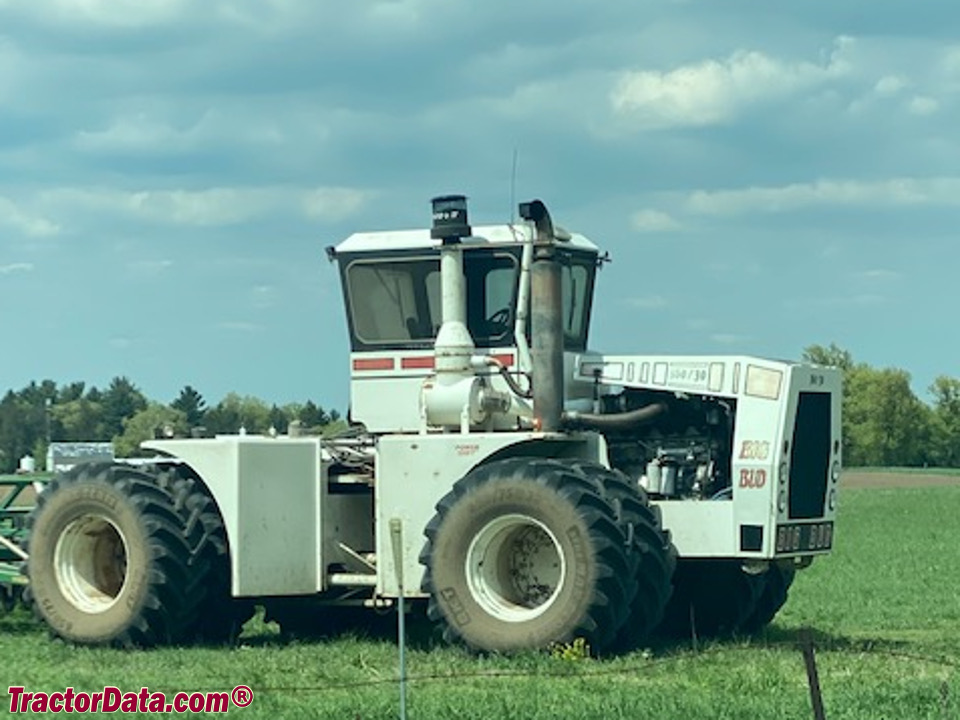

Big Bud 360/30
Big Bud 360/30 — 3 Series · 360 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
360 hp
Weight
17690 kg
Hover a source tag to verify
Overview
ManufacturerBig BudReference
Four-wheel Drive (4WD) tractorReference
Built in Havre, Montana, USAReference
Original price was $111,000 in 1978Reference
Four-wheel driveReference
Articulated power steeringReference
Pneumatic drum brakesReference
Cruiser Cab standard.Reference
Variants
360/10gear shiftReference
360/30power shiftReference
Engine
Cummins 14.0L 6-cyl dieselReference
Fuel tank2081.8 LReference
Engine268.5 kWReference
Cummins 855-C-360Reference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power268.5 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts24Reference
Transmission
6-speed power shiftReference
TransmissionTwin Disc TD-61-1154Reference
Typepower shiftReference
Gears6 forward and 1 reverseReference
PTO & Hydraulics
Typeclosed center load sensingReference
Valves4Reference
Pump flow136.3 lpmReference
Steering flow132.5 lpmReference
Dimensions
Wheelbase381 cmReference
Weight17690 kgReference
Front tire24.5-32Reference
Rear tire24.5-32Reference
Ag front24.5-32Reference
Ag rear24.5-32Reference
Length679 cmReference
Width304 cmReference
Height (cab)367 cmReference
Height (exhaust)396 cmReference
Shipping weight17690 kgReference
Max weight21772 kgReference
Ground clearance36 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps75Reference
Battery volts12Reference
Speeds
With 24.5x32 dual tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
