Tractor · 1973Unverified

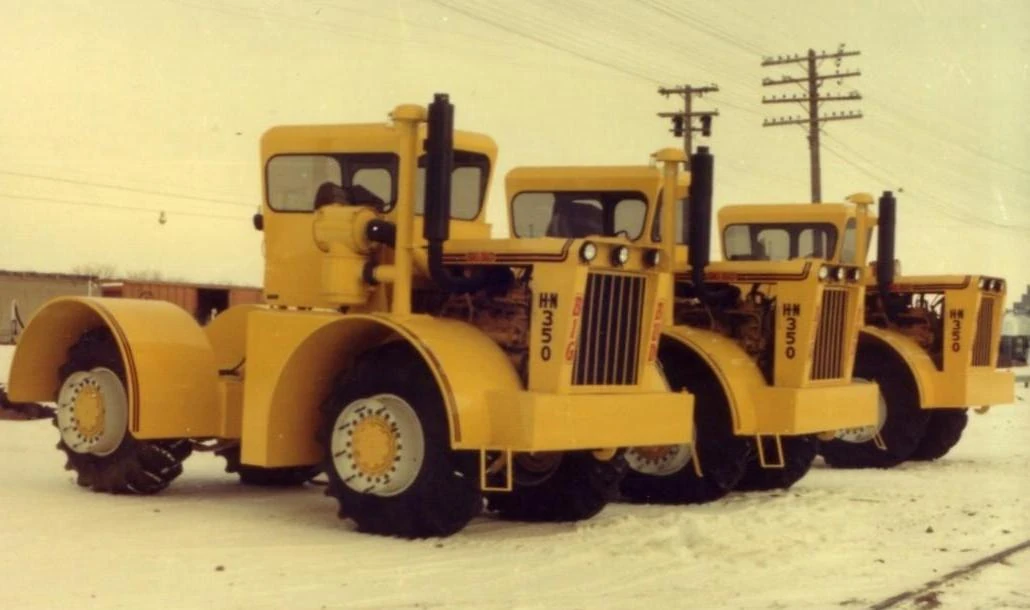

Big Bud HN350
Big Bud HN350 — HN Series · 350 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
350 hp
Weight
18144 kg
Hover a source tag to verify
Overview
ManufacturerBig BudReference
Four-wheel Drive (4WD) tractorReference
Built in Havre, Montana, USAReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Cab standard.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Fuel tank1987.1 LReference
Engine261.0 kWReference
Cummins NT855Reference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power261.0 kWReference
Rated RPM2100Reference
Starter typeelectricReference
Transmission
13-speed gearReference
TransmissionFullerReference
TypegearReference
Gears13 forward and 2 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow75.7 lpmReference
Total flow151.4 lpmReference
Steering flow75.7 lpmReference
Dimensions
Weight18144 kgReference
Front tire24.5x32Reference
Rear tire24.5x32Reference
Ag front24.5x32Reference
Ag rear24.5x32Reference
Shipping weight18144 kgReference
Speeds
With 30.5x32 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
