Tractor · 1977Unverified

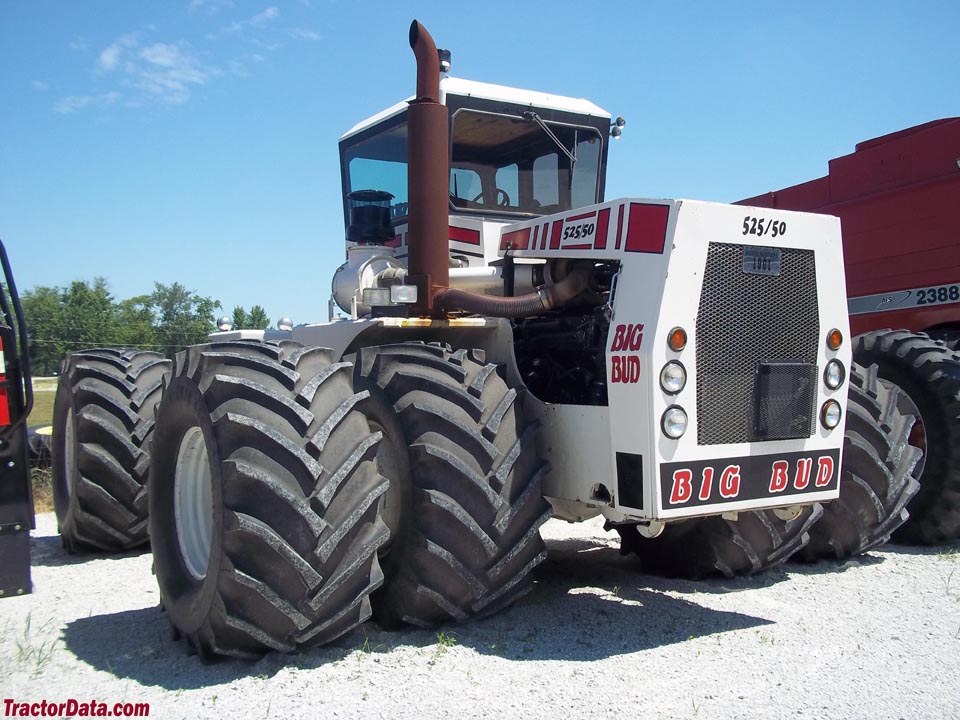

Big Bud KT525

Name: Big Bud KT525
Brand: Big Bud

Big Bud KT525 — KT Series · 525 hp. Reference specifications; pending source verification.

The Big Bud KT525 is a tractor model with a rated power of 525 hp, positioning it at the powerful end of its class. Manufactured between 1977 and 1978, this model features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. The tractor has an operating weight of 19,504 kg and is suitable for operations spanning over 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

525 hp

Weight

19504 kg

Catalogue coverage

Variants represented

Richest spec table

31 rows

Recorded power

525 hp

Recorded weight

19504 kg

Transmissions

13-speed

Production years

1977-1978

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerBig BudReference

Four-wheel Drive (4WD) tractorReference

Built in Havre, Montana, USAReference

Drive4x4 4WDReference

Steeringhydrostatic powerReference

Cab standard.Reference

Engine

Cummins 18.8L 6-cyl dieselReference

Fuel tank1987.1 LReference

Engine391.5 kWReference

CumminsReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement18.8 LReference

Bore/Stroke159 x 159 mmReference

Power391.5 kWReference

Rated RPM2100Reference

Starter typeelectricReference

Transmission

13-speedReference

TransmissionFuller Road RangerReference

Gears13 forward and 2 reverseReference

PTO & Hydraulics

Typeopen centerReference

Pump flow83.3 lpmReference

Total flow166.5 lpmReference

Steering flow83.3 lpmReference

Dimensions

Weight19504 kgReference

Front tire30.5x32Reference

Rear tire30.5x32Reference

Ag front30.5x32Reference

Ag rear30.5x32Reference

Shipping weight19504 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
