Tractor · 1983Unverified

Bima 300

Name: Bima 300
Brand: Bima

Bima 300 — Four-wheel Drive (4WD) tractor · 200 hp. Reference specifications; pending source verification.

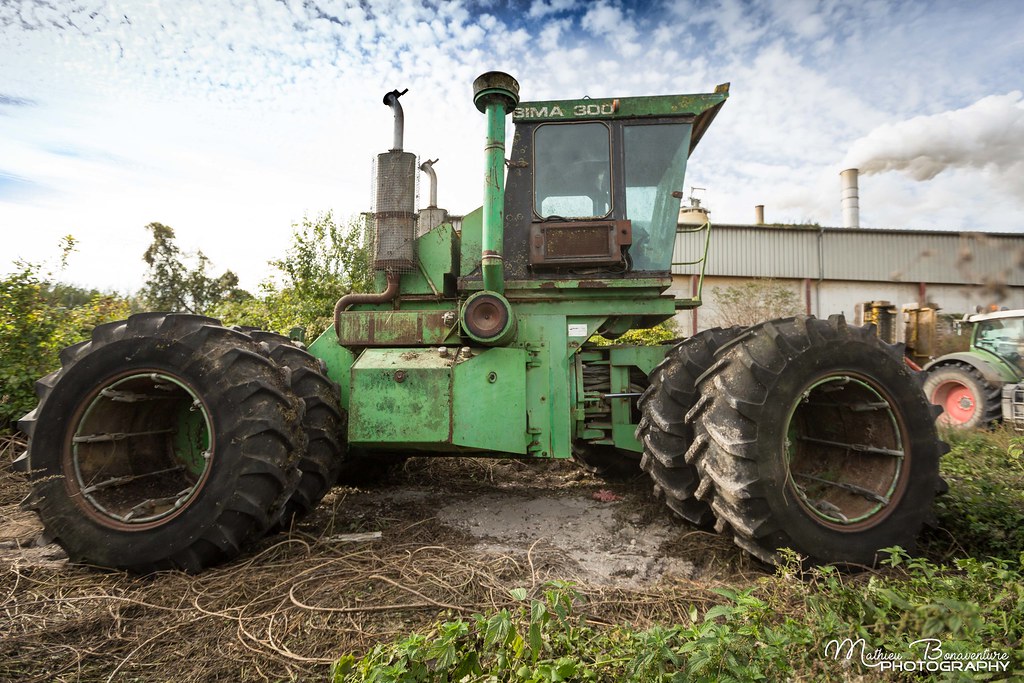

The Bima 300 is a tractor with a rated output of 200 hp, positioning it among the higher-powered machines in its class. It was produced in 1983 and features a 6-cylinder diesel liquid-cooled engine. The tractor has a four-wheel drive system with a hydrostatic transmission and a listed weight of 11999 kg. It is designed for use on plots of around 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

200 hp

Weight

11999 kg

Catalogue coverage

Variants represented

Richest spec table

42 rows

Recorded power

200 hp

Recorded weight

11999 kg

Transmissions

hydrostatic

Production years

1983-1983

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerBimaReference

Four-wheel Drive (4WD) tractorReference

Built in FranceReference

Drive4x4 4WDReference

standardReference

Engine

Caterpillar 14.6L 6-cyl dieselReference

Fiat 13.8L 6-cyl dieselReference

Engine242.4 kWReference

Caterpillar 3406Reference

dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement14.6 LReference

Bore/Stroke137 x 165 mmReference

Power242.4 kWReference

Rated RPM2100Reference

Starter volts24Reference

Fiat 8280iReference

Displacement13.8 LReference

Bore/Stroke137 x 156 mmReference

Rated RPM1900Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and infinine (4-range) reverse (4-range)Reference

PTO & Hydraulics

PTO (claimed)149.1 kWReference

Rear lift6350 kgReference

Front HitchstandardReference

Front lift6350 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Front PTOstandardReference

Front PTO Type1000Reference

Dimensions

Wheelbase398 cmReference

Weight11999 kgReference

Front tire20.8x38Reference

Rear tire20.8x38Reference

Ag front20.8x38Reference

Ag rear20.8x38Reference

Length674 cmReference

Width249 cmReference

Height (cab)385 cmReference

Shipping weight11999 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
