Lawn Tractor · 2020Unverified
Bobcat 9993002

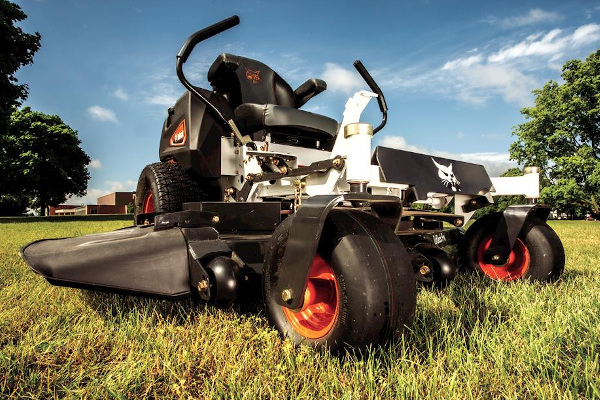

Bobcat 9993002 — ZT3000 Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
351 kg
Hover a source tag to verify
Overview
ManufacturerBobcatReference
Zero-turn mowerReference
Built in Johnson Creek, Wisconsin, USAReference
Two-wheel driveReference
Power steeringReference
Open operator station. ROPS optional.Reference
Engine
22HP Kawasaki 726cc 2-cyl gasolineReference
Fuel tank14.4 LReference
Kawasaki FT691VReference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
Displacement44.3 ciReference
Bore/Stroke78 x 76 mmReference
Power16.4 kWReference
Air cleanerdryReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TransmissionHydro-Gear ZT-3100Reference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Dimensions
Weight351 kgReference
Front tire13x6.5-6Reference
Rear tire22x11.0-10Reference
Lawn/turf front13x6.5-6Reference
Lawn/turf rear22x11.0-10Reference
Length193 cmReference
Bobcat 9993002 attachments
52" mid-mount mower deckReference
Electrical
GroundnegativeReference
Charging amps15Reference
Battery volts12Reference
52" Mower deck
Typemid-mount BobcatReference
Type3-bladeReference
Cutting width132 cmReference
Cut height3 to 12 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
