Lawn Tractor · 2020Unverified
Bobcat 9993503

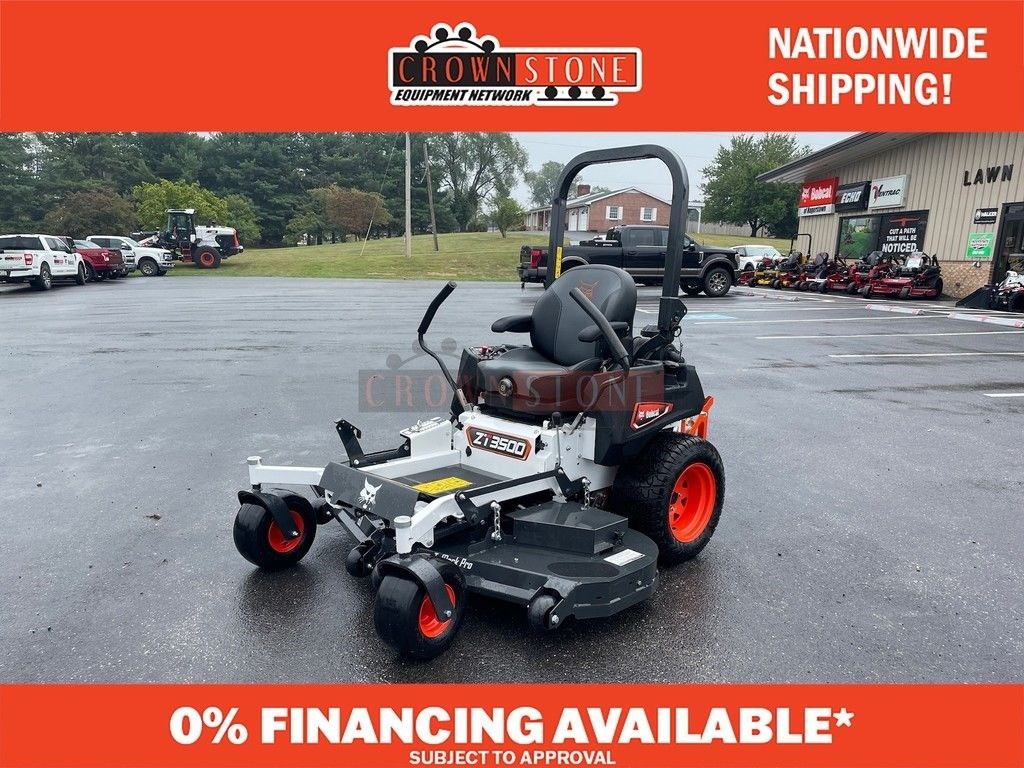

Bobcat 9993503 — ZT3500 Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
377 kg
Hover a source tag to verify
Overview
ManufacturerBobcatReference
Zero-turn mowerReference
Built in Johnson Creek, Wisconsin, USAReference
Two-wheel driveReference
Power steeringReference
Two-post folding ROPS.Reference
Engine
23.5HP Kawasaki 726cc 2-cyl gasolineReference
Fuel tank29.5 LReference
Kawasaki FX730VReference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
Displacement44.3 ciReference
Bore/Stroke78 x 76 mmReference
Power17.5 kWReference
Air cleanerdryReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TransmissionHydro-Gear ZT-3400Reference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Dimensions
Weight377 kgReference
Front tire13x6.5-6Reference
Rear tire23x8.5-12Reference
Lawn/turf front13x6.5-6Reference
Lawn/turf rear23x8.5-12Reference
Length200 cmReference
Bobcat 9993503 attachments
61" mid-mount mower deckReference
Electrical
GroundnegativeReference
Charging amps15Reference
Battery volts12Reference
61" Mower deck
Typemid-mount BobcatReference
Type3-bladeReference
Cutting width154 cmReference
Cut height3 to 12 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
