Lawn Tractor · 2020Unverified

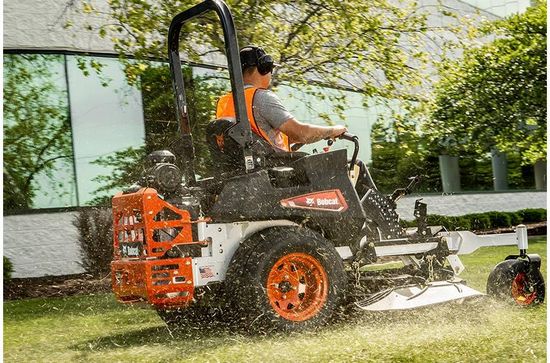

Bobcat 9996013
Bobcat 9996013 — ZT6100 Series · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
664 kg
Hover a source tag to verify
Overview
ManufacturerBobcatReference
Zero-turn mowerReference
Built in Johnson Creek, Wisconsin, USAReference
Two-wheel driveReference
Power steeringReference
Two-post folding ROPS.Reference
Engine
29.5HP Kawasaki 852cc 2-cyl gasolineReference
Fuel tank56.8 LReference
Kawasaki FX850V-EFIReference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
Displacement52 ciReference
Bore/Stroke85 x 76 mmReference
Power22.0 kWReference
Air cleanerdryReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TransmissionHydro-Gear ZT-4400Reference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Dimensions
Weight664 kgReference
Front tire13x6.5-6Reference
Rear tire24x12.0-12Reference
Lawn/turf front13x6.5-6Reference
Lawn/turf rear24x12.0-12Reference
Length210 cmReference
Bobcat 9996013 attachments
61" mid-mount mower deckReference
Electrical
GroundnegativeReference
Charging amps15Reference
Battery volts12Reference
61" Mower deck
Typemid-mount BobcatReference
Type3-bladeReference
Cutting width154 cmReference
Cut height2 to 13 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
