Backhoe Loader · 2002Unverified

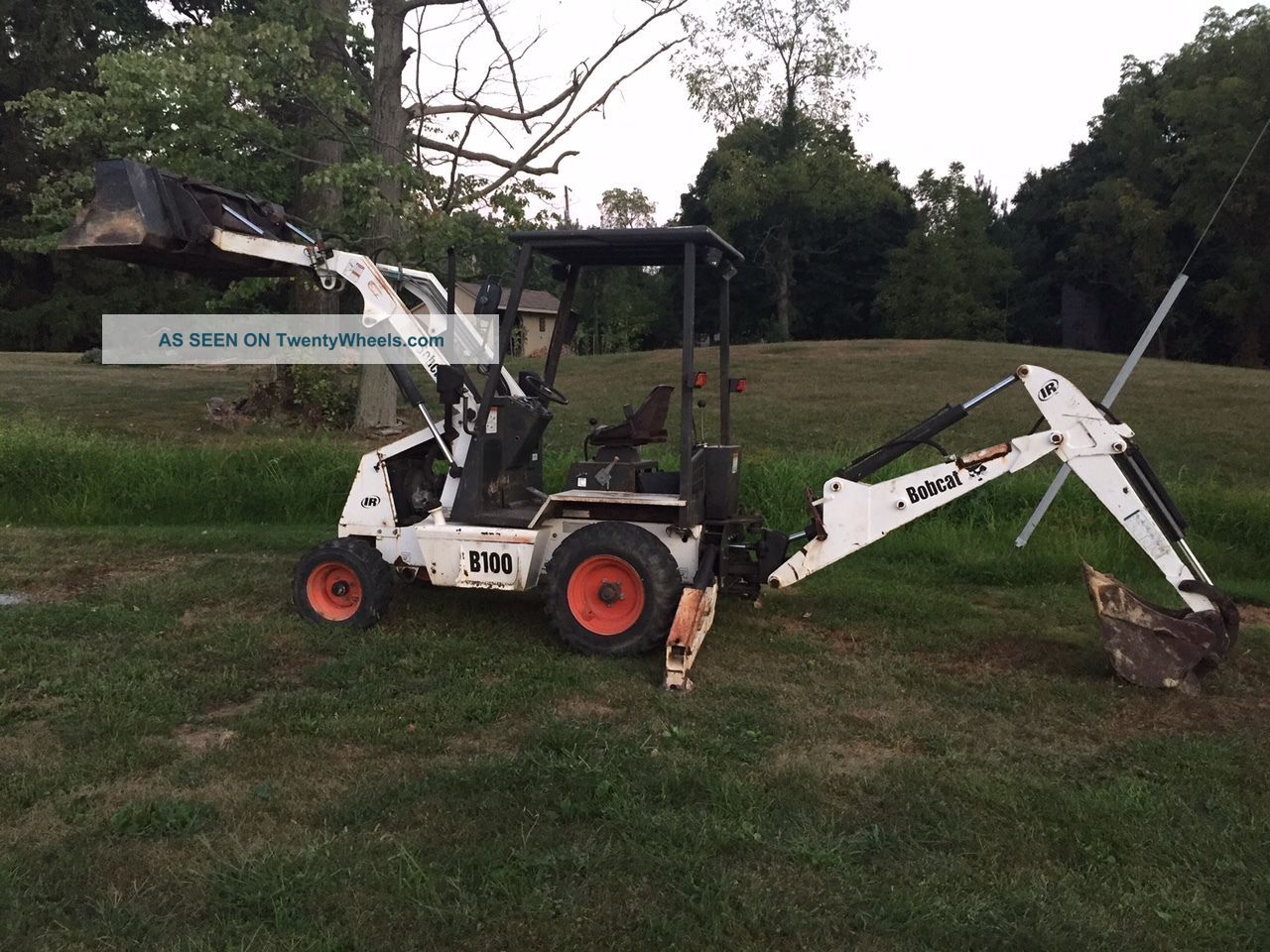

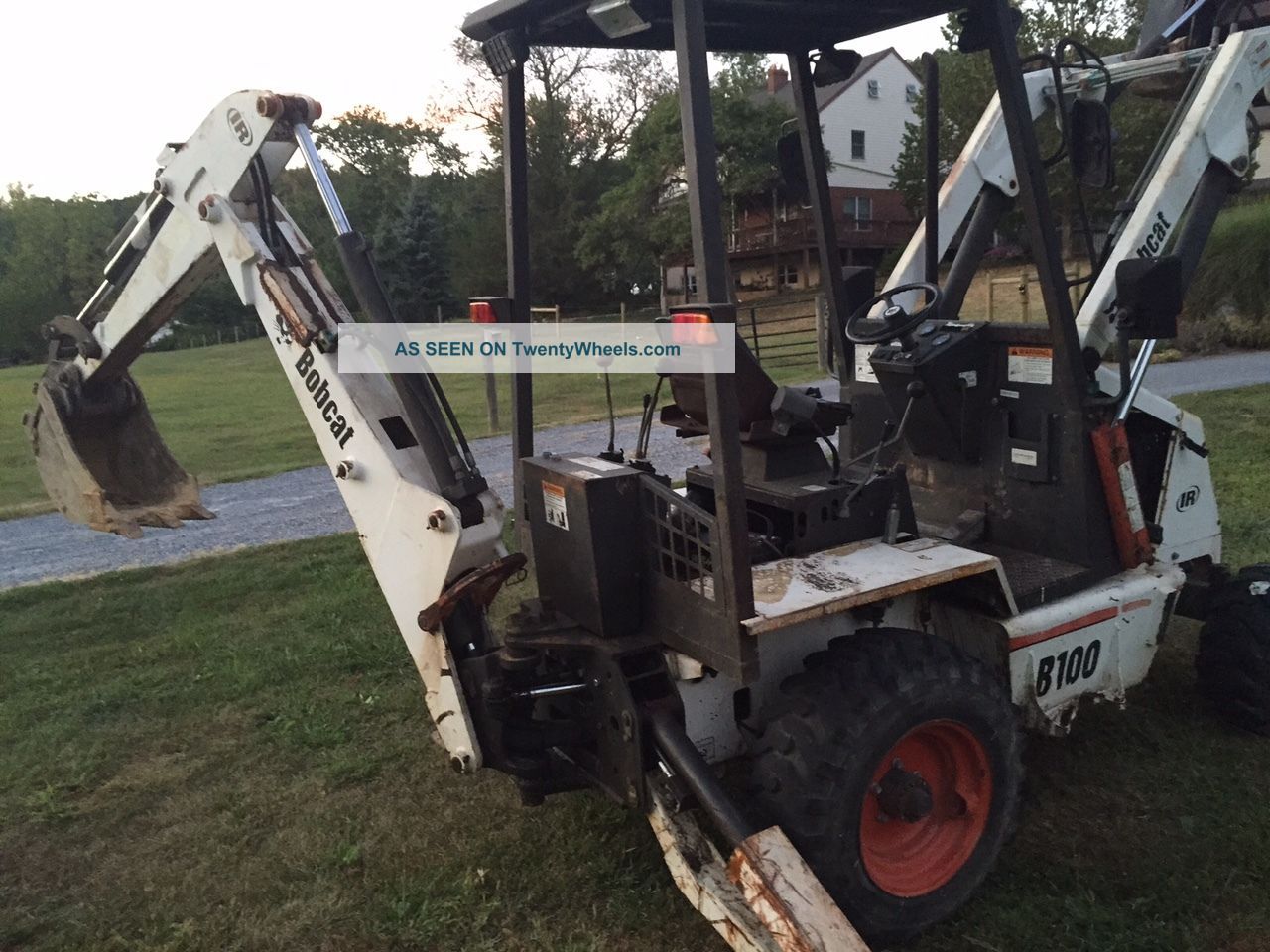

Bobcat B100T

Name: Bobcat B100T
Brand: Bobcat

Bobcat B100T — Backhoe loader tractor · 32 hp. Reference specifications; pending source verification.

The Bobcat B100T is a backhoe loader with a rated output of 32 hp — making it one of the more compact options in its class. It was produced in 2002. It is powered by a 3-cylinder turbocharged diesel liquid-cooled engine, driving through four-wheel drive with a hydrostatic transmission. Listed weight is 2206 kg, and it is aimed at jobs of around up to 200 ac. See the table below for complete UK and US figures with sourcing.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

32 hp

Weight

2206 kg

Catalogue coverage

Variants represented

Richest spec table

44 rows

Recorded power

32 hp

Recorded weight

2206 kg

Transmissions

hydrostatic

Production years

2002-2002

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerBobcat (a part of Ingersoll Rand)Reference

Backhoe loader tractorReference

Four-wheel driveReference

Power steeringReference

ROPS/FOPS.Reference

Engine

Kubota 1.1L 3-cyl dieselReference

Fuel tank54.9 LReference

Engine (net)23.5 kWReference

Kubota D1105TReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.1 LReference

Bore/Stroke78 x 78 mmReference

Power (net)23.5 kWReference

StarterelectricReference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

Typeopen centerReference

Pump flow48.1 lpmReference

Dimensions

Wheelbase162 cmReference

Weight2206 kgReference

Front tire23x8.5-12Reference

Rear tire10/75-15.3Reference

Industrial front23x8.5-12Reference

Industrial rear10/75-15.3Reference

Length513 cmReference

Height (ROPS)236 cmReference

Backhoe & Loader

Dig depth271 cmReference

Dump angle99 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Bobcat Backhoe

Backhoe typeBobcat BackhoeReference

Digging depth271 cmReference

2-Foot flat digging depth266 cmReference

8-Foot flat digging depth210 cmReference

Reach from pivot337 cmReference

Loading height228 cmReference

Bucket force1690 kgReference

Dipperstick force1242 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
