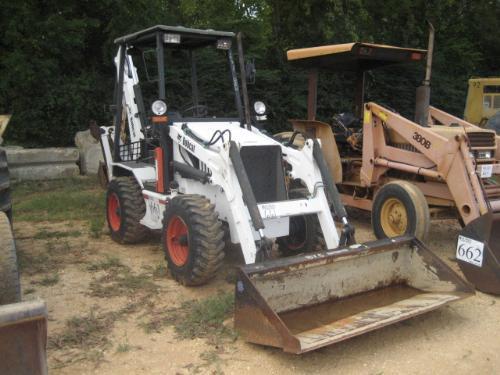

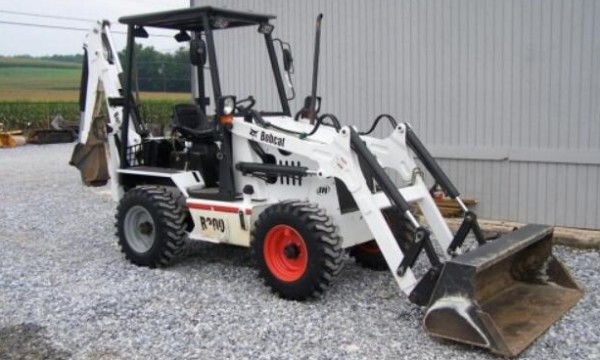

The Bobcat B200 is a backhoe loader model rated at 32 hp — making it one of the more compact options in its class. It was manufactured in 2002. Power comes from a 3-cylinder turbocharged diesel liquid-cooled engine, driving through four-wheel drive with a hydrostatic transmission. Listed weight is 2821 kg, and it is aimed at jobs of around up to 200 ac. See the table below for complete UK and US figures with sourcing.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Weight
2821 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
32 hp
Recorded weight
2821 kg
Transmissions
hydrostatic
Production years
2002-2002
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerBobcat (a part of Ingersoll Rand)Reference
Backhoe loader tractorReference
Four-wheel driveReference
Power steeringReference
ROPS/FOPS. Cab optional with available heater.Reference
Engine
Kubota 1.1L 3-cyl dieselReference
Fuel tank54.9 LReference
Engine (net)23.5 kWReference
Kubota D1105TReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power (net)23.5 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow48.1 lpmReference
Dimensions
Wheelbase165 cmReference
Weight2821 kgReference
Length563 cmReference
Height (ROPS)236 cmReference
Backhoe & Loader
Dig depth307 cmReference
Dump angle114 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Bobcat Backhoe
Backhoe typeBobcat BackhoeReference
Digging depth307 cmReference
Reach from pivot403 cmReference
Loading height246 cmReference
Bucket force2413 kgReference
Dipperstick force1379 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
