Tractor · 2019Unverified

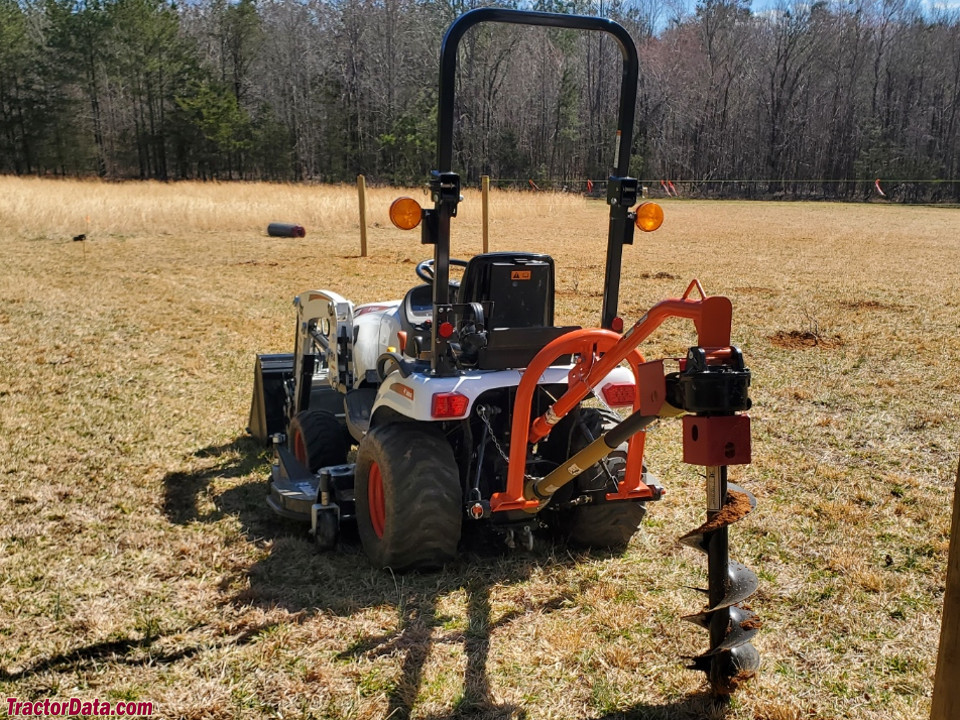

Bobcat CT1021
Bobcat CT1021 — Sub-Compact Utility tractor · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
674 kg
Hover a source tag to verify
Overview
DistributorBobcatReference
ManufacturerDaedongReference
Sub-Compact Utility tractorReference
Original price was $11,527 in 2019Reference
Four-wheel driveReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Shibaura 1.1L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine (gross)15.7 kWReference
Shibaura S733LReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke77 x 81 mmReference
EmissionsTier 4Reference
Power (gross)15.7 kWReference
Rated RPM3000Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)12.5 kWReference
Total flow24.6 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)317 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTO Type2200Reference
Dimensions
Wheelbase139 cmReference
Weight674 kgReference
Front tire18x8.5-10Reference
Rear tire26x12.00-12Reference
Weight169 kgReference
Weight298 kgReference
Standard tires (ag)Front: 18x8.5-10. Rear: 26x12.00-12Reference
Industrial front18x8.5-10Reference
Industrial rear26x12.00-12Reference
Length252 cmReference
Width116 cmReference
Height (ROPS)222 cmReference
Operating weight674 kgReference
Ground clearance16 cmReference
Bobcat CT1021 attachments
60" mid-mount mower deckReference
snowblowerReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
SnowblowerReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount Bobcat M60Reference
Type3-bladeReference
Cutting width152 cmReference
Cut height2 to 10 cmReference
Bobcat BH66 Backhoe
Backhoe typeBobcat BH66 BackhoeReference
Transport height177 cmReference
2-Foot flat digging depth185 cmReference
Reach from pivot254 cmReference
Loading height139 cmReference
Bucket Rotation152°Reference
Swing Arc180°Reference
Bucket force1016 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
