Tractor · 2008Unverified

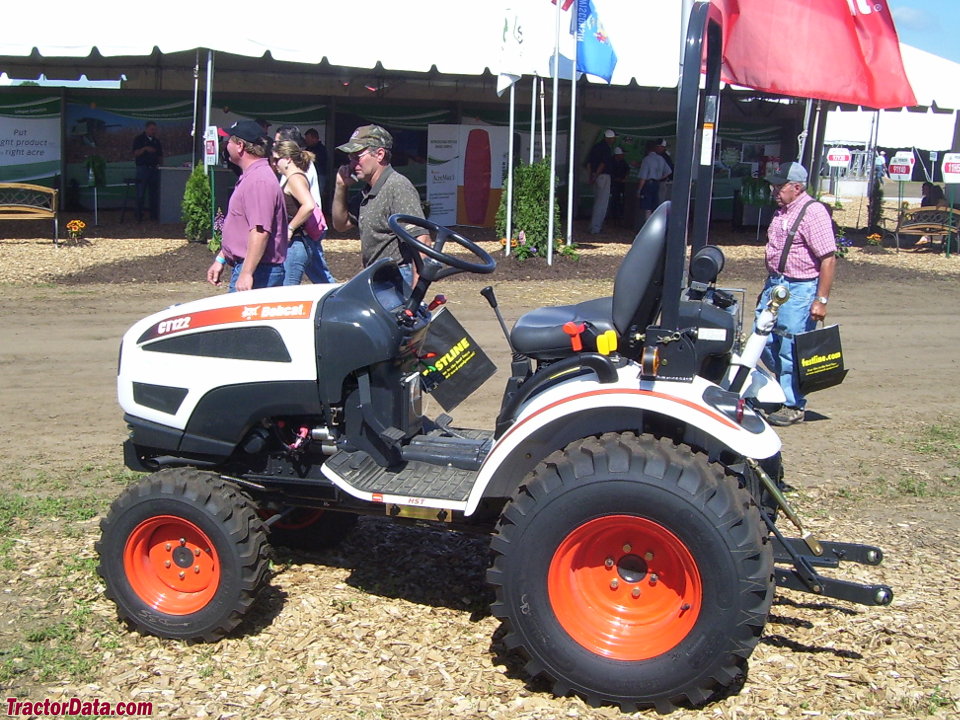

Bobcat CT122
Bobcat CT122 — Compact Utility tractor · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
932 kg
Hover a source tag to verify
Overview
DistributorBobcatReference
ManufacturerDaedongReference
Compact Utility tractorReference
Built in Daegu, South KoreaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Integral wet disc brakesReference
ROPS.Reference
Engine
Daedong 1.0L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine (gross)16.4 kWReference
DaedongReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Power (gross)16.4 kWReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)12.1 kWReference
Valves1Reference
Total flow29.1 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)390 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase147 cmReference
Weight932 kgReference
Front tire6x12Reference
Rear tire9.5x16Reference
Weight110 kgReference
Weight468 kgReference
Ag front6x12Reference
Ag rear9.5x16Reference
Lawn/turf front23x8.5-12Reference
Lawn/turf rear33x12.5-16.5Reference
Industrial front23x8.5-12Reference
Industrial rear12-16.5Reference
Length268 cmReference
Width118 cmReference
Height (ROPS)207 cmReference
Ground clearance27 cmReference
Bobcat CT122 attachments
54" mid-mount mower deckReference
snowblowerReference

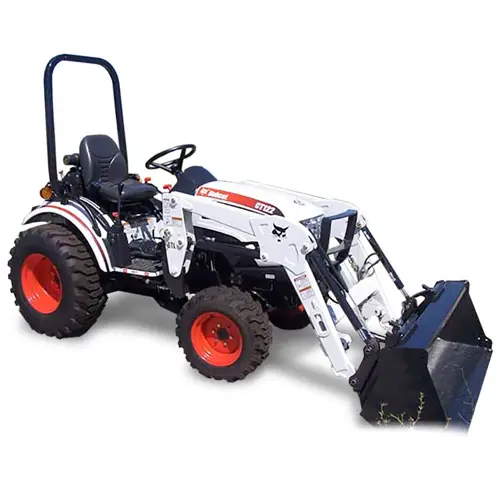

front-end loaderReference
backhoeReference
Attachment overview
54" mid-mount mower deckReference
SnowblowerReference
Front-end loaderReference
BackhoeReference
54" Mower deck
Typemid-mount BobcatReference
Type3-blade with hydraulic liftReference
Cutting width137 cmReference
Bobcat 6TB Backhoe
Backhoe typeBobcat 6TB BackhoeReference
Digging depth198 cmReference
Reach from pivot271 cmReference
Bucket force1304 kgReference
Dipperstick force791 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
