Tractor · 2019Unverified

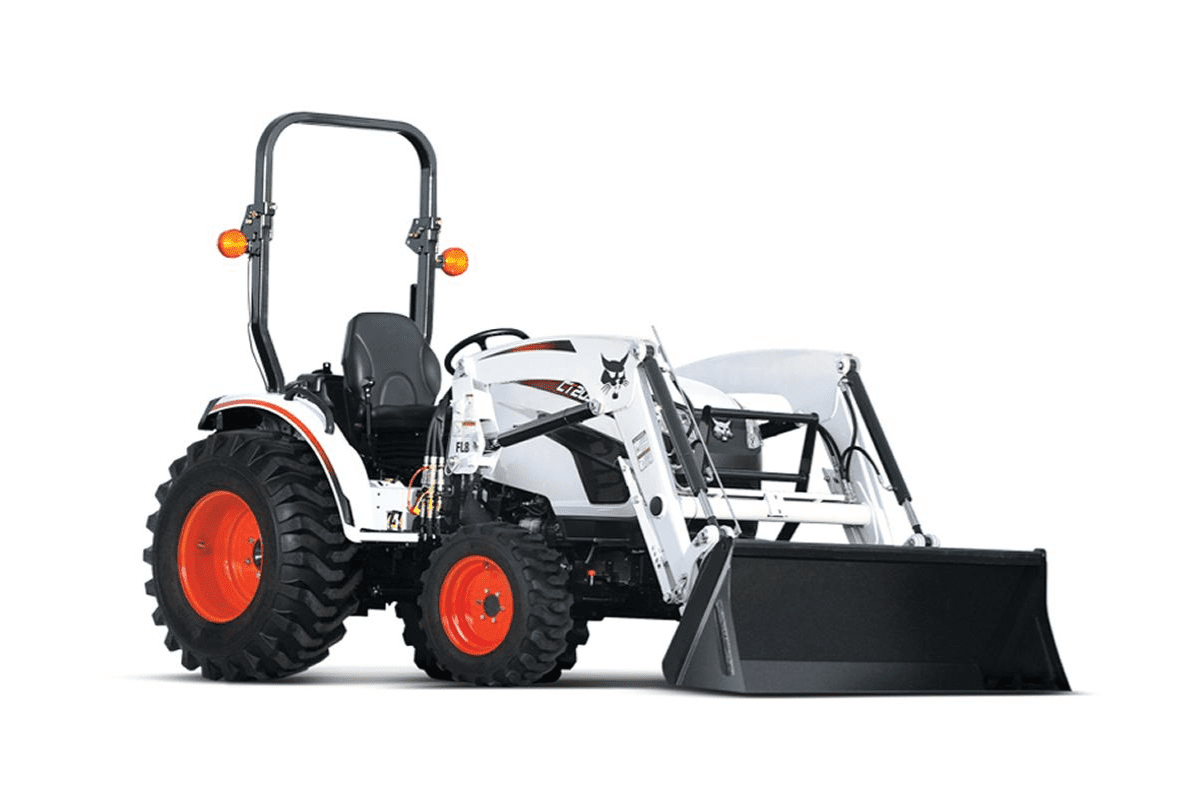

Bobcat CT2035
Bobcat CT2035 — Compact Utility tractor · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
399 kg
Hover a source tag to verify
Overview
DistributorBobcatReference
ManufacturerDaedongReference
Compact Utility tractorReference
Original price was $19,485 in 2019Reference
Four-wheel driveReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Variants
CT2035ROPSReference
CT2535CabReference
Engine
Daedong 1.8L 3-cyl dieselReference
Fuel tank34.1 LReference
Engine (gross)26.0 kWReference
Daedong 3F-TMReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke87 x 102 mmReference
EmissionsTier 4Reference
Power (gross)26.0 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
hydrostaticReference
TypegearReference
Gears9 forward and 3 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Hydro PTO (claimed)21.9 kWReference
Total flow42.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)739 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase165 cmReference
Front tire7-16Reference
Rear tire11.2-24Reference
Weight399 kgReference
Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Lawn/turf front28x8.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front27x8.5-15Reference
Industrial rear15-19.5Reference
Length307 cmReference
Width162 cmReference
Height (ROPS)232 cmReference
Ground clearance29 cmReference
Bobcat CT2035 attachments
snowblowerReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
SnowblowerReference
Front-end loaderReference
BackhoeReference
Bobcat BH76 Backhoe
Backhoe typeBobcat BH76 BackhoeReference
Transport height212 cmReference
2-Foot flat digging depth228 cmReference
Reach from pivot309 cmReference
Loading height187 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1394 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
