Tractor · 2019Unverified

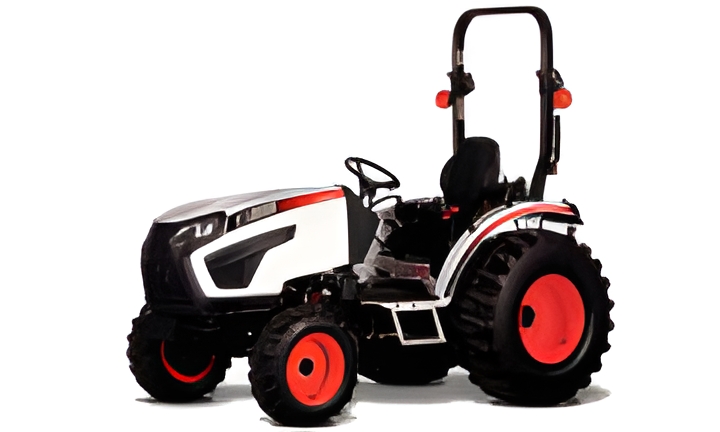

Bobcat CT2040

Name: Bobcat CT2040
Brand: Bobcat

Bobcat CT2040 — Compact Utility tractor · 40 hp. Reference specifications; pending source verification.

The Bobcat CT2040 is a compact tractor with a rated output of 40 hp, making it suitable for smaller-scale operations. Introduced in 2019, this model features a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system via a hydrostatic transmission. The tractor's weight is listed as 2679 to 2734 pounds. It is designed for use on plots of land up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

40 hp

Weight

2679 to 2734 pounds

Catalogue coverage

Variants represented

Richest spec table

69 rows

Recorded power

40 hp

Recorded weight

399 kg

Transmissions

9-speed gear

Production years

2019-2000

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorBobcatReference

ManufacturerDaedongReference

Compact Utility tractorReference

Original price was $20,008 in 2019Reference

Four-wheel driveReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Variants

CT2040ROPSReference

CT2540CabReference

Engine

Daedong 1.8L 3-cyl dieselReference

Fuel tank33.7 LReference

Engine (gross)29.5 kWReference

Daedong 3F-TMReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.8 LReference

Bore/Stroke87 x 102 mmReference

EmissionsTier 4Reference

Power (gross)29.5 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

9-speed gearReference

hydrostaticReference

Gear Operating weight1215 kgReference

TypegearReference

Gears9 forward and 3 reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Gear PTO (claimed)26.0 kWReference

Hydro PTO (claimed)23.8 kWReference

Total flow44.3 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at 24"/610mm)739 kgReference

Rear PTOliveReference

Rear PTO Type540 (1.375)Reference

Mid PTO Type2000Reference

Dimensions

Wheelbase165 cmReference

Weight2679 to 2734 poundsReference

Front tire7-16Reference

Rear tire11.2-24Reference

Weight399 kgReference

Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference

Lawn/turf front28x8.5-15Reference

Lawn/turf rear41x14-20Reference

Industrial front27x8.5-15Reference

Industrial rear15-19.5Reference

Length307 cmReference

Width142 cmReference

Height (ROPS)251 cmReference

Hydro Operating weight1240 kgReference

Ground clearance34 cmReference

Bobcat CT2040 attachments

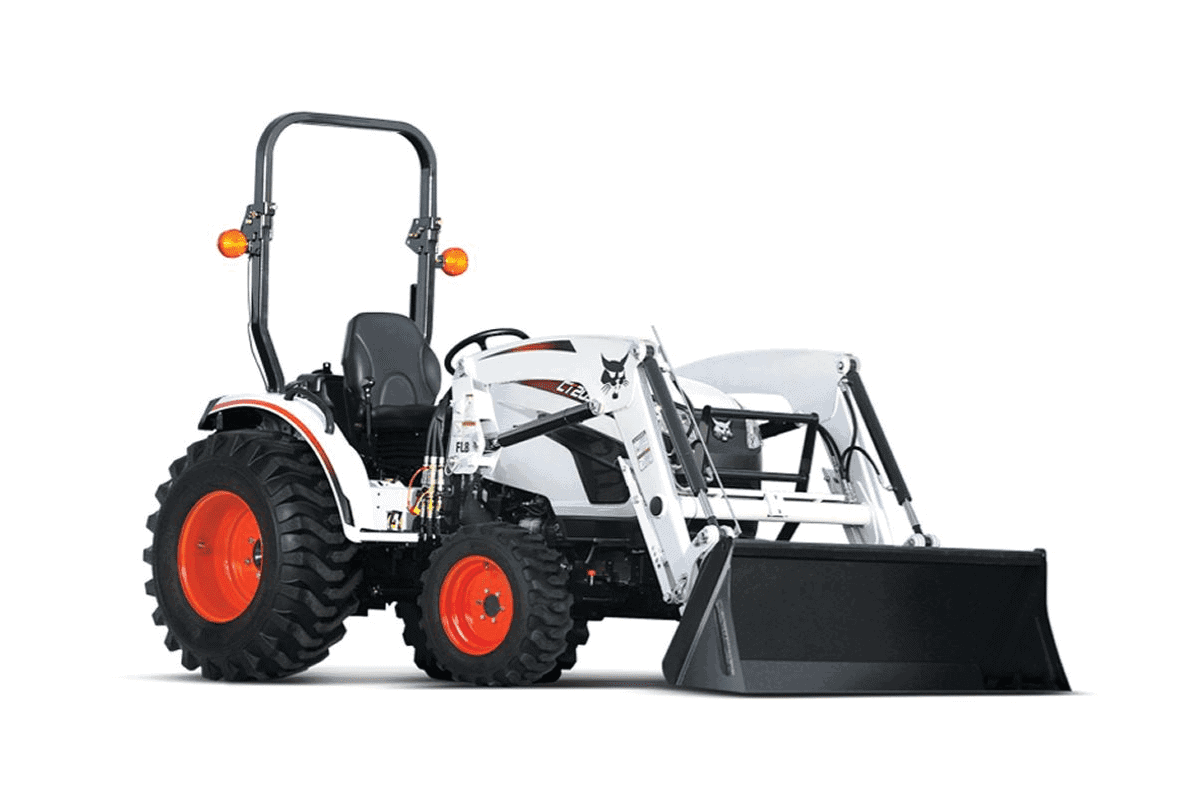

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Bobcat BH76 Backhoe

Backhoe typeBobcat BH76 BackhoeReference

Transport height212 cmReference

2-Foot flat digging depth228 cmReference

Reach from pivot309 cmReference

Loading height187 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1394 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
