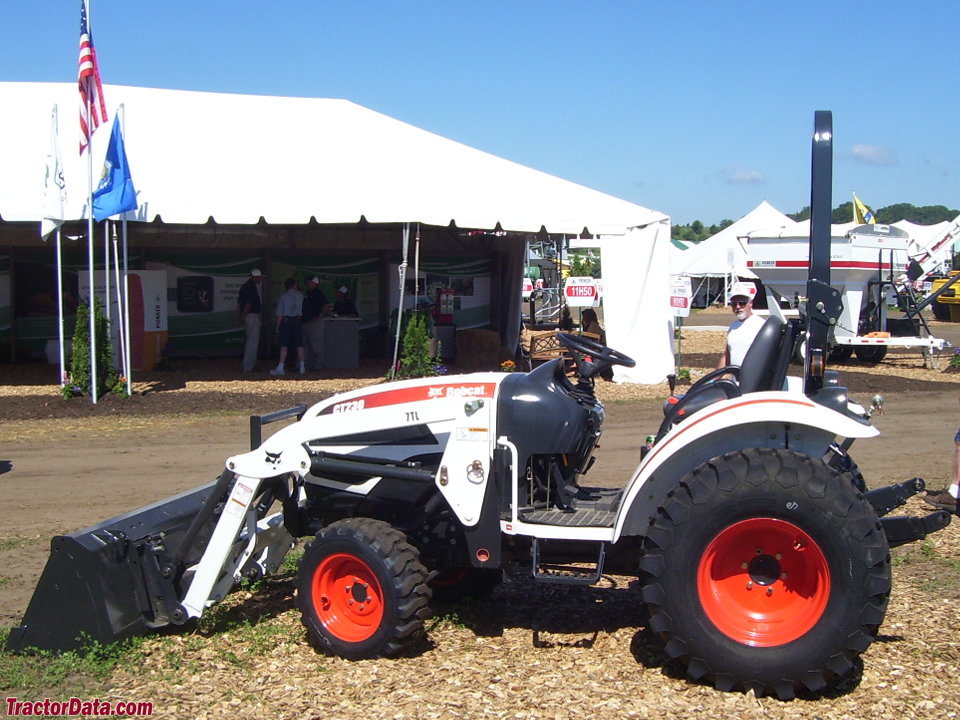

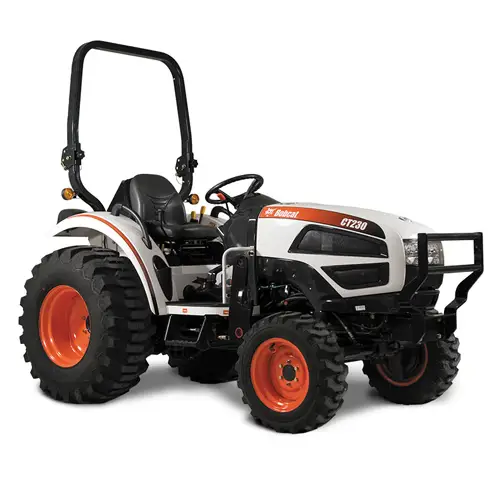

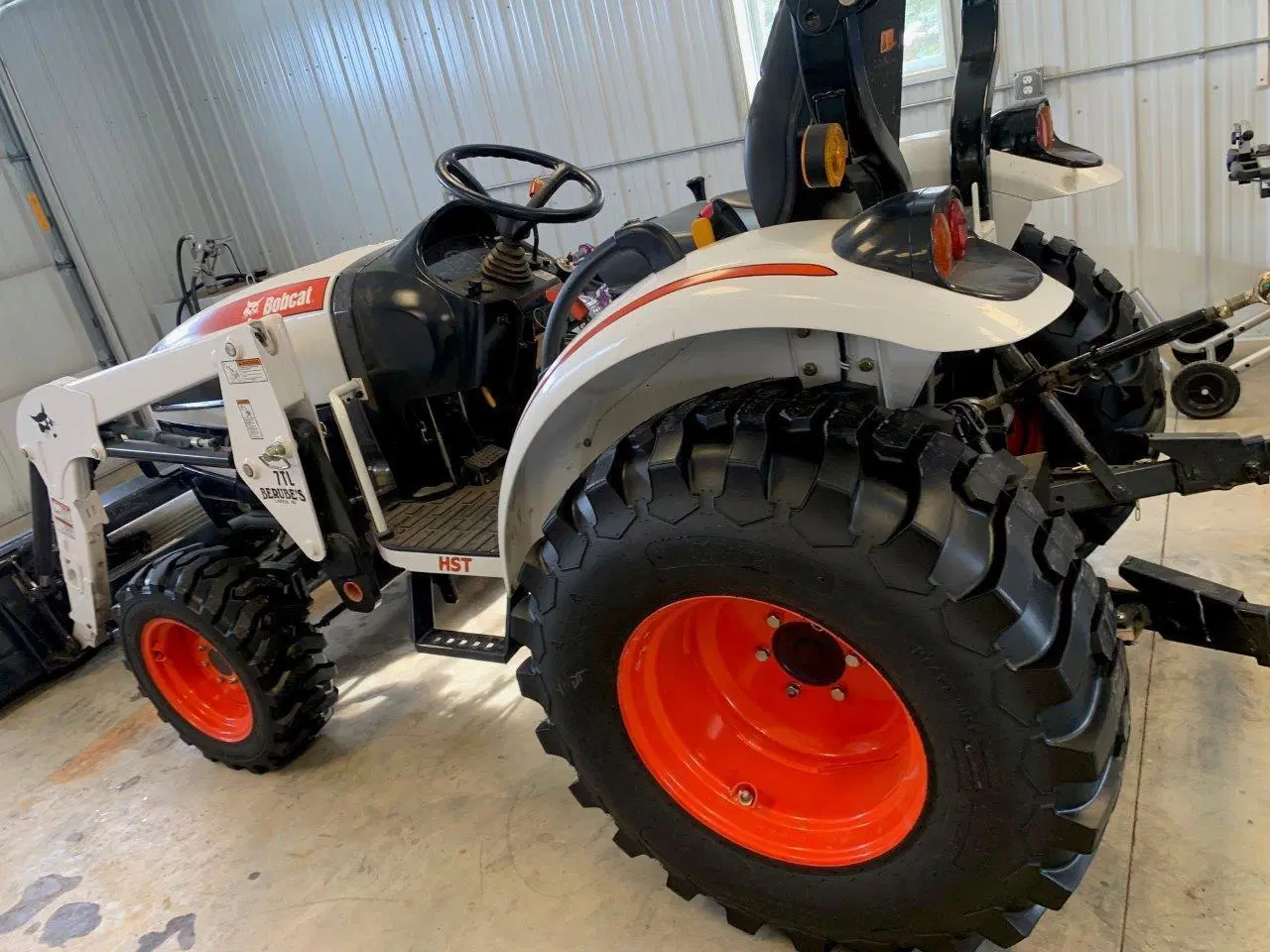

The Bobcat CT230 is a compact tractor with a 22 hp rating, placing it among the smaller options in its class. Manufactured from 2008 to 2013, it features a 3-cylinder diesel liquid-cooled engine and a hydrostatic transmission powering four-wheel drive. The listed weight of the CT230 is 1386 kg, and it is designed for use in areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Max power
30 hp
Weight
1386 kg
Catalogue coverage
Variants represented
2
Richest spec table
102 rows
Recorded power
22 hp
Recorded weight
1386 kg
Transmissions
hydrostatic
Production years
2008-2013
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorBobcatReference
ManufacturerDaedongReference
Compact Utility tractorReference
Built in Daegu, South KoreaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
folding ROPSReference
Variants
CK30similar Kioti modelReference
Engine
Daedong 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine22.4 kWReference
Daedong 3A150Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke83 x 92 mmReference
Power22.4 kWReference
Fuel TypedieselReference
No of Cylinders3 cylinderReference
Bore and stroke3.27x3.64 inchesReference
Cooling systemliquid-cooledReference
PTO & Hydraulics
PTO (claimed)16.4 kWReference
Valves1 or 2Reference
Pump flow31.0 lpmReference
Total flow48.1 lpmReference
Steering flow17.0 lpmReference
Rear Type1Reference
Rear lift (at 24"/610mm)555 kgReference
Rear lift (at 24"/610mm)635 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase167 cmReference
Weight1386 kgReference
Front tire25x8.5-14Reference
Rear tire15x19.5Reference
Weight129 kgReference
Weight468 kgReference
Weight474 kgReference
Ag front25x8.5-14Reference
Ag rear15x19.5Reference
Ag front7x14Reference
Ag rear11.2x24Reference
Lawn/turf front25x8.5-16Reference
Lawn/turf rear13.6x16Reference
Length300 cmReference
Width141 cmReference
Height243 cmReference
Ground clearance25 cmReference
Bobcat CT230 attachments
66" mid-mount mower deckReference
snowblowerReference
front-end loaderReference
backhoeReference
Attachment overview
66" mid-mount mower deckReference
SnowblowerReference
Front-end loaderReference
BackhoeReference
66" Mower deck
Typemid-mount BobcatReference
Type3-blade with hydraulic liftReference
Cutting width167 cmReference
Bobcat 6TB Backhoe
Backhoe typeBobcat 6TB BackhoeReference
Digging depth198 cmReference
Reach from pivot271 cmReference
Bucket force1304 kgReference
Dipperstick force791 kgReference
Bobcat 7TB Backhoe
Backhoe typeBobcat 7TB BackhoeReference
Digging depth228 cmReference
Reach from pivot298 cmReference
Bucket force1282 kgReference
Dipperstick force917 kgReference
Transmission
TransmissionhydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Transmission TypeHSTReference
forward and reverse optionsHydrostatic; Infinite F&R (3-range)Reference
