Tractor · 2008Unverified

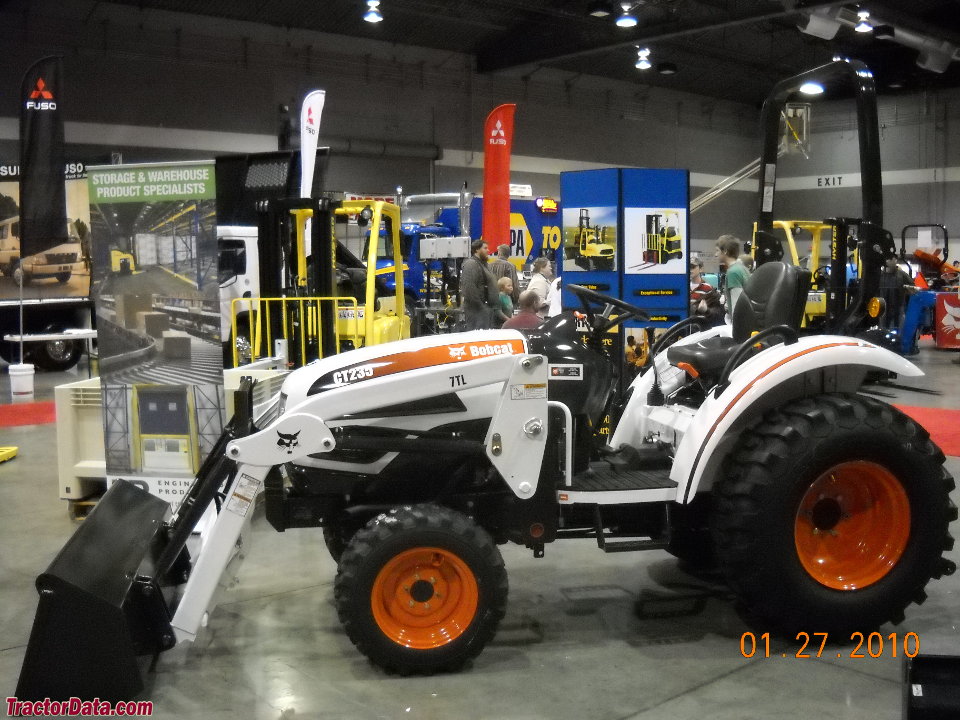

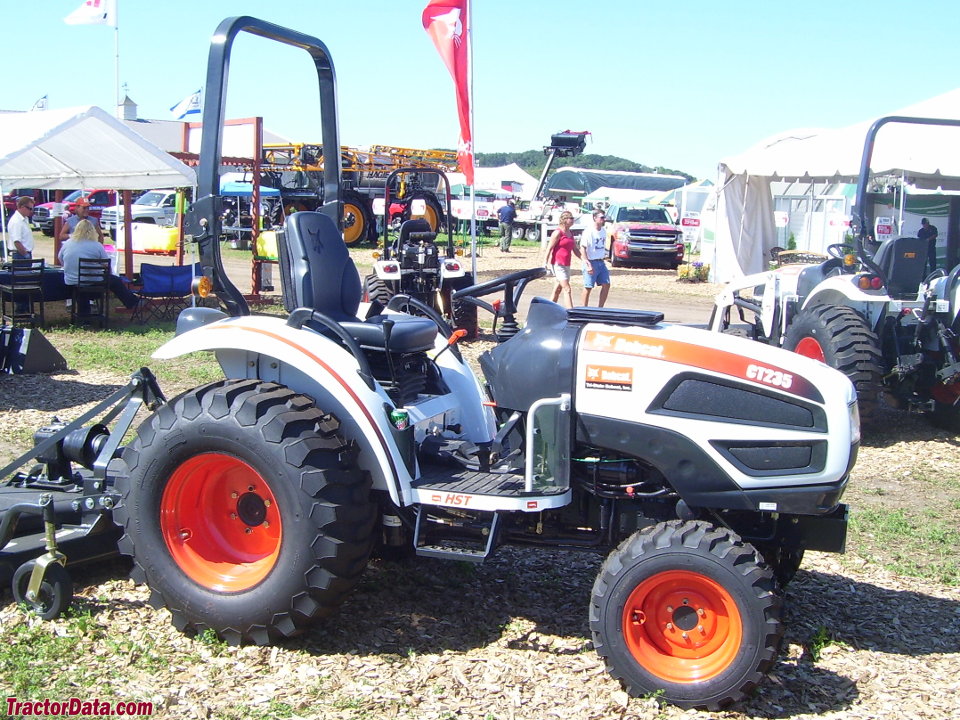

Bobcat CT235
Bobcat CT235 — Compact Utility tractor · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
1386 kg
Hover a source tag to verify
Overview
DistributorBobcatReference
ManufacturerDaedongReference
Compact Utility tractorReference
Built in Daegu, South KoreaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Integral wet disc brakesReference
ROPS. Cab optional with heat and air-conditioning.Reference
Engine
Daedong 1.6L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine25.4 kWReference
Daedong 3A165Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Power25.4 kWReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and infinite reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)19.8 kWReference
Valves1 or 2Reference
Pump flow29.9 lpmReference
Total flow46.2 lpmReference
Steering flow16.3 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)684 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase167 cmReference
Weight1386 kgReference
Front tire7x14Reference
Rear tire11.24x24Reference
Weight129 kgReference
Weight468 kgReference
Weight474 kgReference
Ag front7x14Reference
Ag rear11.24x24Reference
Lawn/turf front27x8.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front25x8.5-14Reference
Industrial rear15x19.5Reference
Length310 cmReference
Width140 cmReference
Height (ROPS)243 cmReference
Height (cab)239 cmReference
Ground clearance25 cmReference
Bobcat CT235 attachments
66" mid-mount mower deckReference
snowblowerReference
front-end loaderReference
backhoeReference
Attachment overview
66" mid-mount mower deckReference
SnowblowerReference
Front-end loaderReference
BackhoeReference
66" Mower deck
Typemid-mount BobcatReference
Type3-blade with hydraulic liftReference
Cutting width167 cmReference
Bobcat 6TB Backhoe
Backhoe typeBobcat 6TB BackhoeReference
Digging depth198 cmReference
Reach from pivot271 cmReference
Bucket force1304 kgReference
Dipperstick force791 kgReference
Bobcat 7TB Backhoe
Backhoe typeBobcat 7TB BackhoeReference
Digging depth228 cmReference
Reach from pivot298 cmReference
Bucket force1282 kgReference
Dipperstick force917 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
