Tractor · 2008Unverified

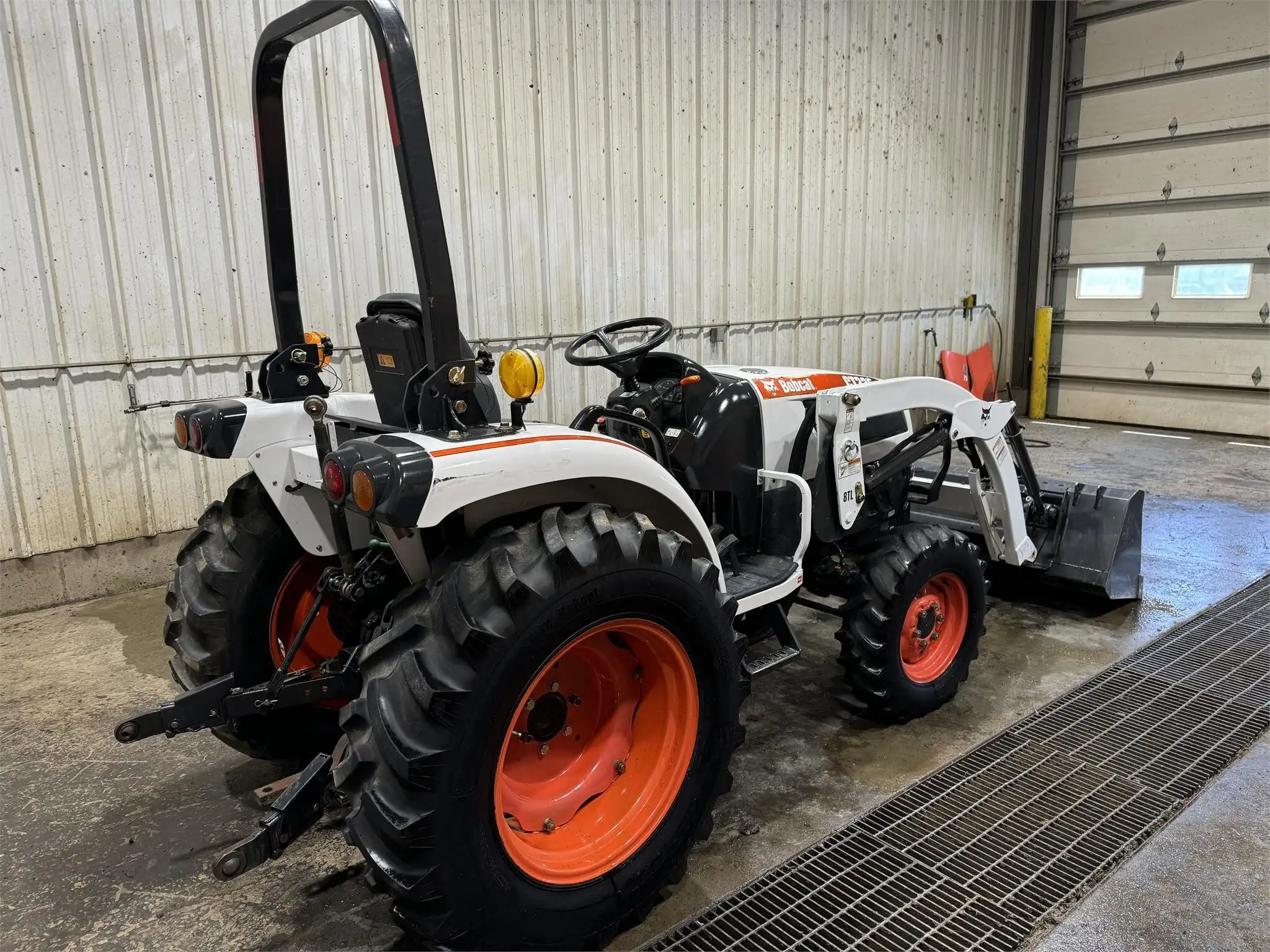

Bobcat CT335
Bobcat CT335 — Compact Utility tractor · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
3668 to 4081 pounds
Hover a source tag to verify
Overview
DistributorBobcatReference
ManufacturerDaedongReference
Compact Utility tractorReference
Built in Daegu, South KoreaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential wet disc brakesReference
ROPS. Cab optional with heat and air-conditioning.Reference
Variants
CT335SSTshuttle shiftReference
Engine
Daedong 1.8L 3-cyl dieselReference
Fuel tank45.0 LReference
Engine28.3 kWReference
DaedongReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Power28.3 kWReference
Transmission
hydrostaticReference
12-speed shuttleReference
TypehydrostaticReference
Gearsinfinite forward and infinite reverse (3-range)Reference
TypeshuttleReference
Gears12 forward and reverseReference
The shuttle shift option was added in 2010 with the CT335SST.Reference
PTO & Hydraulics
PTO (claimed)19.8 kWReference
Valves1 or 2Reference
Pump flow29.9 lpmReference
Total flow54.9 lpmReference
Steering flow25.0 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)771 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase176 cmReference
Weight3668 to 4081 poundsReference
Front tire7x16Reference
Rear tire12.4x24Reference
Weight474 kgReference
Weight507 kgReference
Ag front7x16Reference
Ag rear12.4x24Reference
Lawn/turf front27x8.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front27x10.5-15Reference
Industrial rear43x16-20Reference
Length327 cmReference
Width159 cmReference
Height (ROPS)161 cmReference
Height (cab)240 cmReference
Weight1663 kgReference
Weight1851 kgReference
Ground clearance34 cmReference
Bobcat CT335 attachments
front-end loaderReference
backhoeReference
Attachment overview
Front-end loaderReference
BackhoeReference
Bobcat 7TB Backhoe
Backhoe typeBobcat 7TB BackhoeReference
Digging depth228 cmReference
Reach from pivot298 cmReference
Bucket force1282 kgReference
Dipperstick force917 kgReference
Bobcat 8TB Backhoe
Backhoe typeBobcat 8TB BackhoeReference
Digging depth259 cmReference
Reach from pivot343 cmReference
Bucket force1885 kgReference
Dipperstick force990 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
