Tractor · 2019Unverified

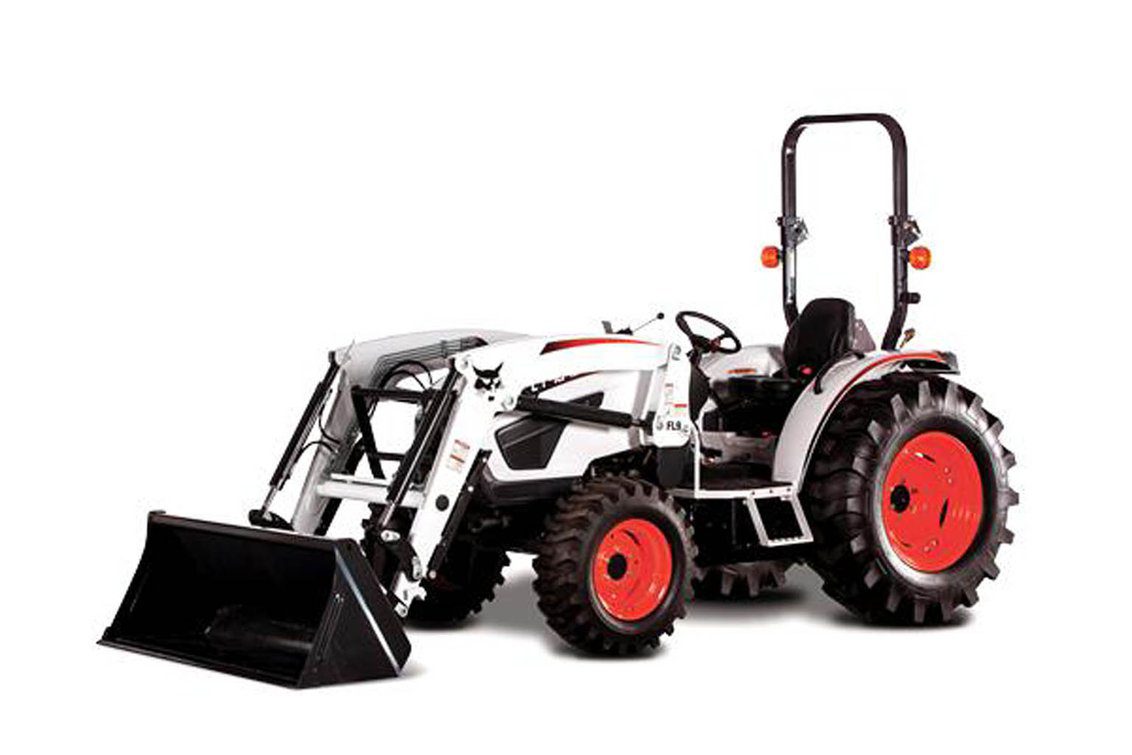

Bobcat CT4050

Name: Bobcat CT4050
Brand: Bobcat

Bobcat CT4050 — Compact Utility tractor · 50 hp. Reference specifications; pending source verification.

The Bobcat CT4050 is a compact tractor with a rated output of 50 hp, classified within a specific category of machines. It was first introduced in 2019. The tractor is equipped with a 3-cylinder turbocharged diesel liquid-cooled engine, which powers four-wheel drive via a hydrostatic transmission. It has a listed weight of 3373 to 3523 pounds and is intended for tasks on plots of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

50 hp

Weight

3373 to 3523 pounds

Catalogue coverage

Variants represented

Richest spec table

67 rows

Recorded power

50 hp

Recorded weight

499 kg

Transmissions

8-speed synchronized shuttle

Production years

2019

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorBobcatReference

ManufacturerDaedongReference

Compact Utility tractorReference

Original price was $25,105 in 2019Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Daedong 1.8L 3-cyl dieselReference

Fuel tank45.0 LReference

Engine (gross)37.5 kWReference

Daedong 3FTReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.8 LReference

Bore/Stroke87 x 102 mmReference

EmissionsTier 4Reference

Power (gross)37.5 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

8-speed synchronized shuttleReference

hydrostaticReference

Typesynchronized shuttleReference

Gears8 forward and reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Shuttle PTO (claimed)34.0 kWReference

Gear PTO (claimed)29.3 kWReference

Typeopen centerReference

Pump flow36.4 lpmReference

Total flow54.9 lpmReference

Steering flow18.7 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at 24"/610mm)1231 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTO Type2000Reference

Dimensions

Wheelbase180 cmReference

Weight3373 to 3523 poundsReference

Front tire8-16Reference

Rear tire13.6-24Reference

Weight499 kgReference

Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference

Length318 cmReference

Width160 cmReference

Height (ROPS)245 cmReference

Shuttle Operating weight1529 kgReference

Hydro Operating weight1598 kgReference

Ground clearance36 cmReference

Bobcat CT4050 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Bobcat BH86 Backhoe

Backhoe typeBobcat BH86 BackhoeReference

Transport height236 cmReference

2-Foot flat digging depth243 cmReference

Reach from pivot320 cmReference

Loading height203 cmReference

Swing Arc180°Reference

Bucket force1700 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
