Tractor · 2008Unverified

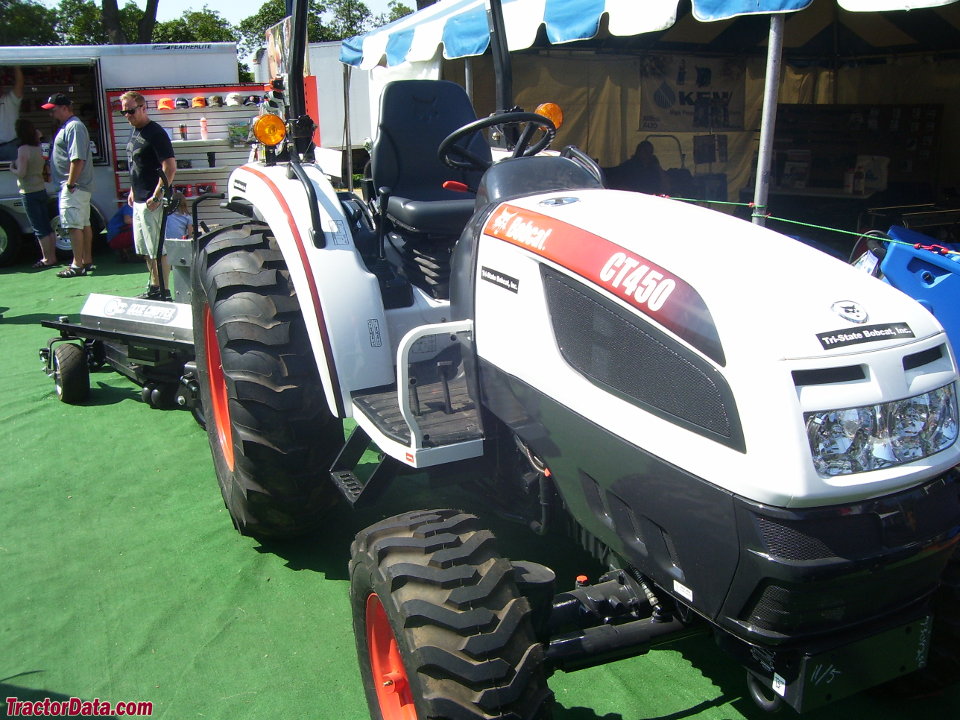

Bobcat CT450
Bobcat CT450 — Compact Utility tractor · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
3935 to 4314 pounds
Hover a source tag to verify
Overview
DistributorBobcatReference
ManufacturerDaedongReference
Compact Utility tractorReference
Built in Daegu, South KoreaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential wet disc brakesReference
ROPS. Cab optional with heat and air-conditioning.Reference
Variants
CT450SSTshuttle shiftReference
Engine
Daedong 2.4L 4-cyl dieselReference
Fuel tank45.0 LReference
Engine36.5 kWReference
DaedongReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke87 x 102 mmReference
Power36.5 kWReference
Air cleanerdryReference
Compression22:1Reference
Rated RPM2600Reference
Starter volts12Reference
Power at rated engine speed28.7 kWReference
Transmission
hydrostaticReference
12-speed shuttleReference
TypehydrostaticReference
Gearsinfinite forward and infinite reverse (3-range)Reference
TypeshuttleReference
Gears12 forward and reverseReference
The shuttle shift option was added in 2010 with the CT450SST.Reference
PTO & Hydraulics
PTO (claimed)28.3 kWReference
PTO (claimed)30.6 kWReference
PTO (tested)28.7 kWReference
Valves1 or 2Reference
Pump flow36.0 lpmReference
Total flow60.9 lpmReference
Steering flow25.0 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)848 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Power at rated PTO speed29.0 kWReference
Dimensions
Wheelbase187 cmReference
Weight3935 to 4314 poundsReference
Front tire8x16Reference
Rear tire13.6x24Reference
Weight474 kgReference
Weight507 kgReference
Ag front8x16Reference
Ag rear13.6x24Reference
Lawn/turf front29x12.5-15Reference
Lawn/turf rear21.5L16.1Reference
Industrial front10x16.5Reference
Industrial rear14.9x24Reference
Length341 cmReference
Width175 cmReference
Height (ROPS)242 cmReference
Height (cab)240 cmReference
Weight1784 kgReference
Weight1956 kgReference
Ground clearance35 cmReference
Bobcat CT450 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Bobcat 7TB Backhoe
Backhoe typeBobcat 7TB BackhoeReference
Digging depth228 cmReference
Reach from pivot298 cmReference
Bucket force1282 kgReference
Dipperstick force917 kgReference
Bobcat 8TB Backhoe
Backhoe typeBobcat 8TB BackhoeReference
Digging depth259 cmReference
Reach from pivot343 cmReference
Bucket force1885 kgReference
Dipperstick force990 kgReference
Test results
Diesel hydrostatic 4WDMarch 23 - 25, 2011Link: Nebraska Tractor Test 1983 fileReference
PTO performanceReference
Fuel use11.0 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
