Tractor · 2025Unverified

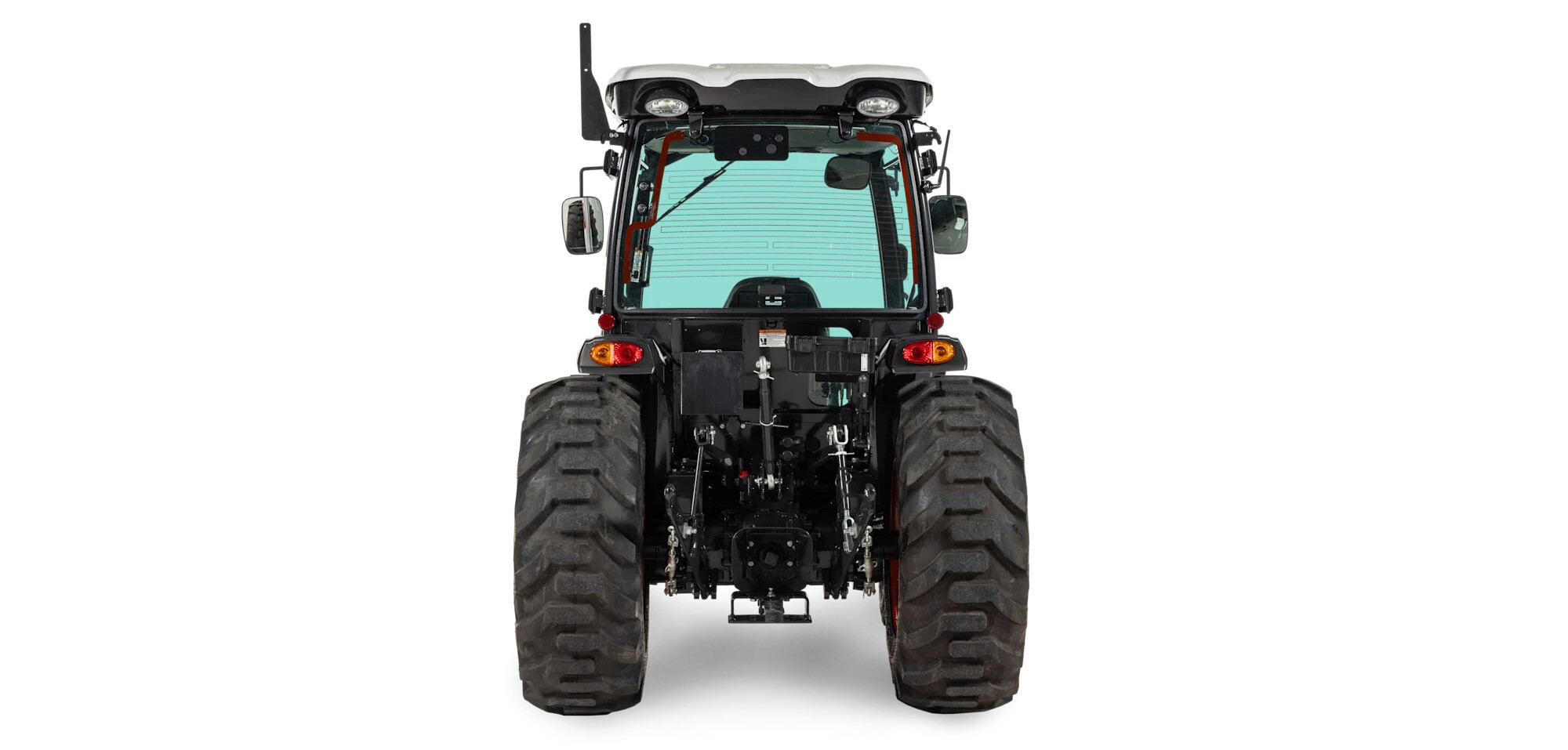

Bobcat CT4545

Name: Bobcat CT4545
Brand: Bobcat

Bobcat CT4545 — Compact Utility tractor · 45 hp. Reference specifications; pending source verification.

The Bobcat CT4545 is a compact tractor with a rated output of 45 hp, one of the smaller options in its class. Introduced in 2025, it features a 3-cylinder turbocharged diesel liquid-cooled engine, coupled with a hydrostatic transmission and four-wheel drive. This tractor weighs approximately 1950 kg and is designed for workloads of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

45 hp

Weight

1950 kg

Catalogue coverage

Variants represented

Richest spec table

65 rows

Recorded power

45 hp

Recorded weight

1950 kg

Transmissions

hydrostatic

Production years

2025

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorBobcatReference

ManufacturerDaedongReference

Compact Utility tractorReference

Original price was $23,884 in 2019Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

CT4045ROPSReference

CT4545cabReference

Engine

Daedong 1.8L 3-cyl dieselReference

Fuel tank45.0 LReference

Engine (gross)33.5 kWReference

Daedong 3FTReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.8 LReference

Bore/Stroke87 x 102 mmReference

EmissionsTier 4Reference

Power (gross)33.5 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

PTO (claimed)18.3 kWReference

Typeopen centerReference

Valves1 or 2Reference

Pump flow36.3 lpmReference

Total flow62.5 lpmReference

Steering flow26.1 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at 24"/610mm)1231 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTO Type2000Reference

Dimensions

Wheelbase180 cmReference

Weight1950 kgReference

Front tire8-16Reference

Rear tire13.6-24Reference

Weight499 kgReference

Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference

Length318 cmReference

Width160 cmReference

Height (cab)239 cmReference

Operating weight1950 kgReference

Ground clearance36 cmReference

Bobcat CT4545 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Bobcat BH86 Backhoe

Backhoe typeBobcat BH86 BackhoeReference

Transport height236 cmReference

2-Foot flat digging depth243 cmReference

Reach from pivot320 cmReference

Loading height203 cmReference

Swing Arc180°Reference

Bucket force1700 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
