Tractor · 2019Unverified

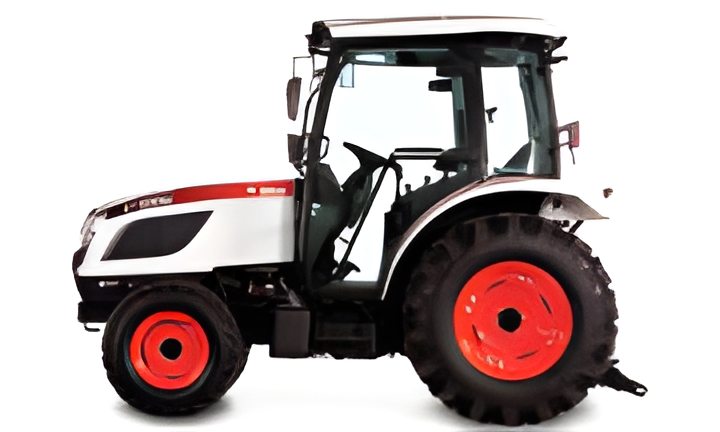

Bobcat CT5558

Name: Bobcat CT5558
Brand: Bobcat

Bobcat CT5558 — Compact Utility tractor · 55 hp. Reference specifications; pending source verification.

The Bobcat CT5558 is a tractor model with a rated power output of 55 hp, positioning it towards the lower end of its class in terms of power. It commenced production in 2019. The tractor features a 3-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. Its listed operating weight is 2050 kg, suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

55 hp

Max power

57.7 hp

Weight

2050 kg

Catalogue coverage

Variants represented

Richest spec table

98 rows

Recorded power

55 hp

Recorded weight

2050 kg

Transmissions

hydrostatic

Production years

2019

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorBobcatReference

ManufacturerDaedongReference

Compact Utility tractorReference

Original price was $42,583 in 2019Reference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Daedong 1.8L 3-cyl dieselReference

Fuel tank56.0 LReference

Engine (gross)41.0 kWReference

Daedong 3FTReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.8 LReference

Bore/Stroke87 x 102 mmReference

EmissionsTier 4Reference

Power (gross)41.0 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders3Reference

Emissions complianceTier 4Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverseReference

Transmission TypeE-HSTReference

forward and reverse optionsInfiniteReference

forward speed range28.2 km/hReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)36.0 kWReference

Pump flow53.0 lpmReference

Total flow98.4 lpmReference

Steering flow45.4 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at 24"/610mm)1319 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTO Type2000Reference

Dimensions

Wheelbase190 cmReference

Weight2050 kgReference

Front tire9.5-16Reference

Rear tire13.6-28Reference

Weight499 kgReference

Standard tires (ag)Front: 9.5-16. Rear: 13.6-28Reference

Lawn/turf front29-12.5-15Reference

Lawn/turf rear21.5L-16.1Reference

Industrial front10-16.5Reference

Industrial rear17.5-24Reference

Length354 cmReference

Width167 cmReference

Height (cab)245 cmReference

Operating weight2050 kgReference

Ground clearance34 cmReference

Bobcat CT5558 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Bobcat BH86-5 Backhoe

Backhoe typeBobcat BH86-5 BackhoeReference

Transport height236 cmReference

2-Foot flat digging depth243 cmReference

Reach from pivot320 cmReference

Loading height203 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1700 kgReference

General

Make & Model0.9 mReference

Cruise controltrueReference

SCV controlJoystickReference

Capacities

Capacity111.4 cu in.Reference

Power

Max Power57.7 hpReference

Rated Power57.7 hpReference

PTO

PTO Power48.3 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 rpmReference

Mid PTOAvailableReference

Mid PTO RPM2,103 rpmReference

Steering & brakes

BrakesWet Multi DiscReference

Steering typeHydrostatic Power SteeringReference

Hydraulics

Pump Rated Output (total)67.4 l/minReference

Steering & Implements flow8.2 gpm (9.6 gpm)Reference

Rear Hitch category (SAE designation)Category 1Reference

Rear Hitch maximum lift capacity1,064.1 kgReference

Dimensions & weight

Overall Height239.3 cmReference

Overall Length354.6 cmReference

Overall Width188.5 cmReference

Turning radius9.8 feet (with Brakes)Reference

Overall weight2,125.1 kgReference

Wheels & tyres

Rear Wheel TypeRear Industrial (AG, Turf)Reference

Front Wheel TypeFront Industrial (AG, Turf)Reference

Operator station

Cab AvailabilitytrueReference

Seat SuspensionAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
