Lawn Tractor · 1985Unverified
Bolens 1900H 5019H
Bolens 1900H 5019H — Garden tractor · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
402 kg
Hover a source tag to verify
Overview
ManufacturerBolensReference
Garden tractorReference
Two-wheel driveReference
Manual steeringReference
Open operator station. Soft-side weather cab optional.Reference
Engine
19HP Kohler 770cc 2-cyl gasolineReference
Fuel tank13.2 LReference
Kohler KT19QSReference
gasolineReference
2-cylinderReference
air-cooled horizontal-shaftReference
Displacement46.98 ciReference
Bore/Stroke79 x 78 mmReference
Power (gross)14.2 kWReference
StarterelectricReference
Starter volts12Reference

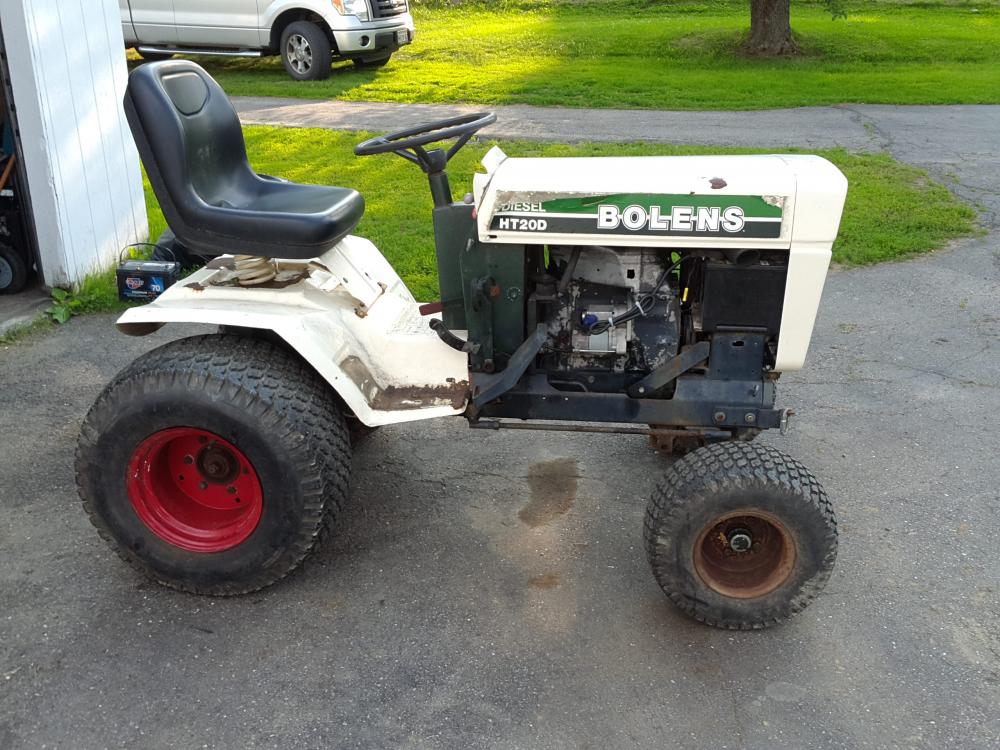

Image courtesy of horsetrading36Reference
Transmission
hydrostaticReference
TransmissionEaton 11Reference
Typeshaft-driven hydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Rear Type0Reference
Typesleeve hitchReference
Front PTOindependentReference
ClutchelectricReference
Dimensions
Wheelbase119 cmReference
Weight402 kgReference
Front tire16-6.50x8Reference
Rear tire23x10.50-12Reference
Lawn/turf front16-6.50x8Reference
Lawn/turf rear23x10.50-12Reference
Length179 cmReference
Width102 cmReference
Height114 cmReference
Shipping weight402 kgReference
Bolens 1900H attachments
42" mid-mount mower deckReference
48" mid-mount mower deckReference
60" mid-mount mower deckReference
snowblowerReference
bladeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH45Reference
Attachment overview
42" mid-mount mower deckReference
48" mid-mount mower deckReference
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
