Tractor · 1978Unverified

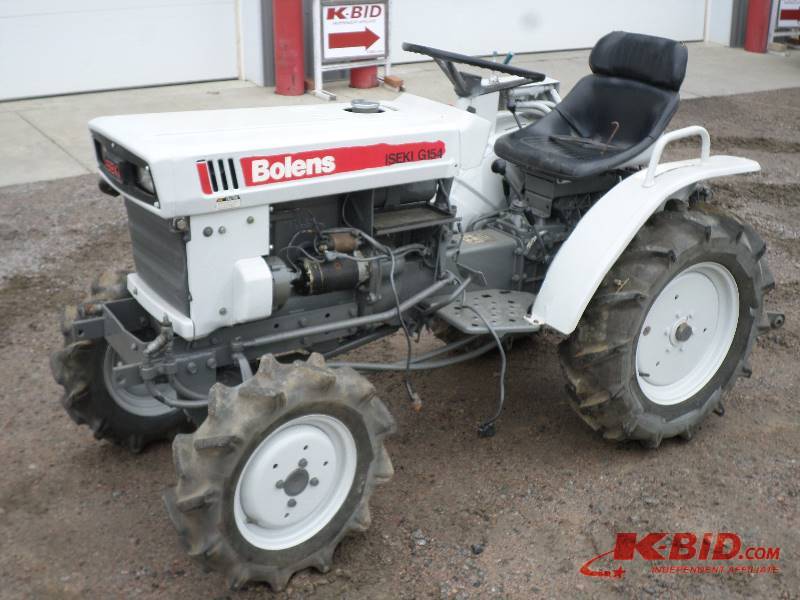

Bolens G154
Bolens G154 — Model year 1978-19811981-1991 · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
509 kg
Hover a source tag to verify
Overview
DistributorBolensReference
ManufacturerIsekiReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical internal expanding brakesReference
Open operator station.Reference
Variants
G1522WDReference
G1544WDReference
TX1300similar Iseki modelReference
Engine
Mitsubishi 0.7L 2-cyl dieselReference
Fuel tank12.1 LReference
Engine11.2 kWReference
Mitsubishi KE 70Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Bore/Stroke73 x 80 mmReference
Power11.2 kWReference
Air cleanerdry elementReference
Pre-heatingglow plugsReference
StarterelectricReference
Starter volts12Reference
Coolant capacity4.2 LReference
Oil capacity2.6 LReference
Oil change100 hReference
Transmission
6-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Oil capacity12.3 LReference
Three gears (1-3) plus reverse (R) with additional high-low range shift. Tractor must be stopped, and clutch used, to shift gears and range.Reference
PTO & Hydraulics
Rear PTOtransmissionReference
Rear PTO Type472/752/1177Reference
Engine RPM472@2700Reference
Engine RPM752@2700Reference
Engine RPM1177@2700Reference
Dimensions
Wheelbase128 cmReference
Weight509 kgReference
Front tire5.00-12Reference
Rear tire8-16Reference
Standard tires (ag)Front: 5.00-12. Rear: 8-16Reference
Length196 cmReference
Width96 cmReference
Height119 cmReference
Ground clearance25 cmReference
Front tread78/94 cmReference
Rear tread73/83/93 cmReference
Bolens G154 attachments
42" mid-mount mower deckReference
snowblowerReference
bladeReference
G154 Serial Numbers
Location:Serial number plate near gear shift.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH45Reference
Attachment overview
42" mid-mount mower deckReference
SnowblowerReference
BladeReference
42" Mower deck
Typemid-mount BolensReference
Cutting width106 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
