Tractor · 1978Unverified

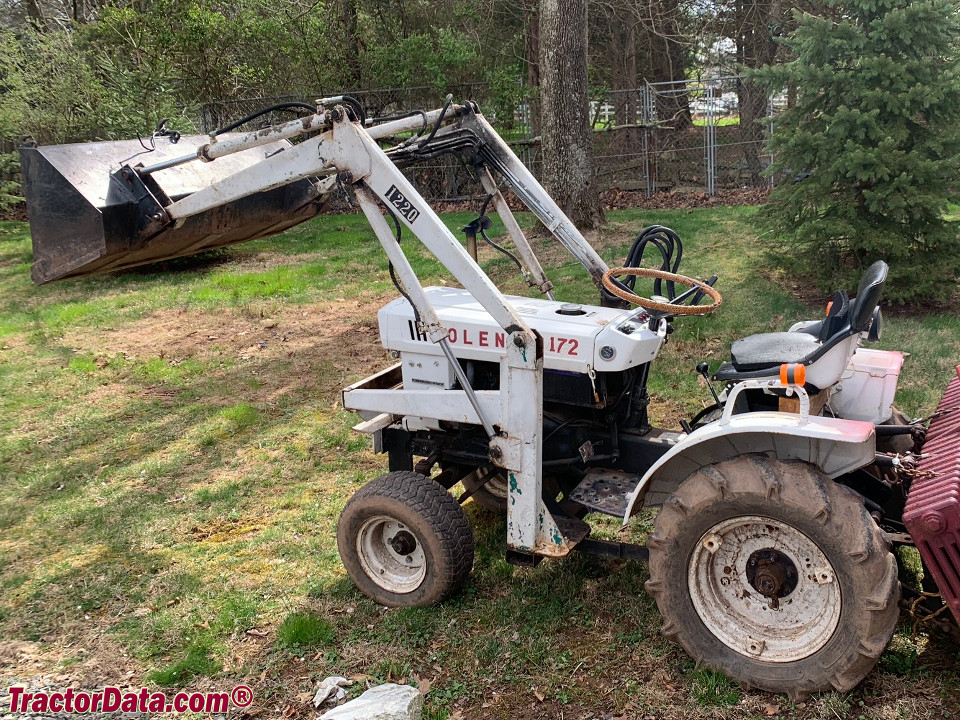

Bolens G172
Bolens G172 — Sub-Compact Utility tractor · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
479 kg
Hover a source tag to verify
Overview
DistributorBolensReference
ManufacturerIsekiReference
Sub-Compact Utility tractorReference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical internal expanding brakesReference
Open operator station.Reference
Variants
G1722WDReference
G1744WDReference
TX1500similar Iseki modelReference
Engine
Mitsubishi 0.8L 2-cyl dieselReference
Fuel tank12.1 LReference
Engine12.7 kWReference
Mitsubishi KE 75Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke78 x 80 mmReference
Power12.7 kWReference
Air cleanerdry elementReference
Pre-heatingglow plugsReference
StarterelectricReference
Starter volts12Reference
Coolant capacity4.2 LReference
Oil capacity2.6 LReference
Oil change100 hReference
Transmission
6-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Oil capacity12.3 LReference
Three gears (1-3) plus reverse (R) with additional high-low range shift. Tractor must be stopped, and clutch used, to shift gears and range.Reference
PTO & Hydraulics
Rear PTOtransmissionReference
Rear PTO Type472/752/1177Reference
Engine RPM472@2700Reference
Engine RPM752@2700Reference
Engine RPM1177@2700Reference
Dimensions
Wheelbase128 cmReference
Weight479 kgReference
Front tire4.00-12Reference
Rear tire8-16Reference
Standard tires (ag)Front: 4.00-12. Rear: 8-16Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear8-16Reference
Length194 cmReference
Width96 cmReference
Height119 cmReference
Ground clearance27 cmReference
Front tread71/87 cmReference
Rear tread73/83/93 cmReference
Bolens G172 attachments
42" mid-mount mower deckReference
snowblowerReference
bladeReference
G172 Serial Numbers
Location:Serial number plate near gear shift.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH45Reference
Attachment overview
42" mid-mount mower deckReference
SnowblowerReference
BladeReference
42" Mower deck
Typemid-mount BolensReference
Cutting width106 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
