Tractor · 1979Unverified

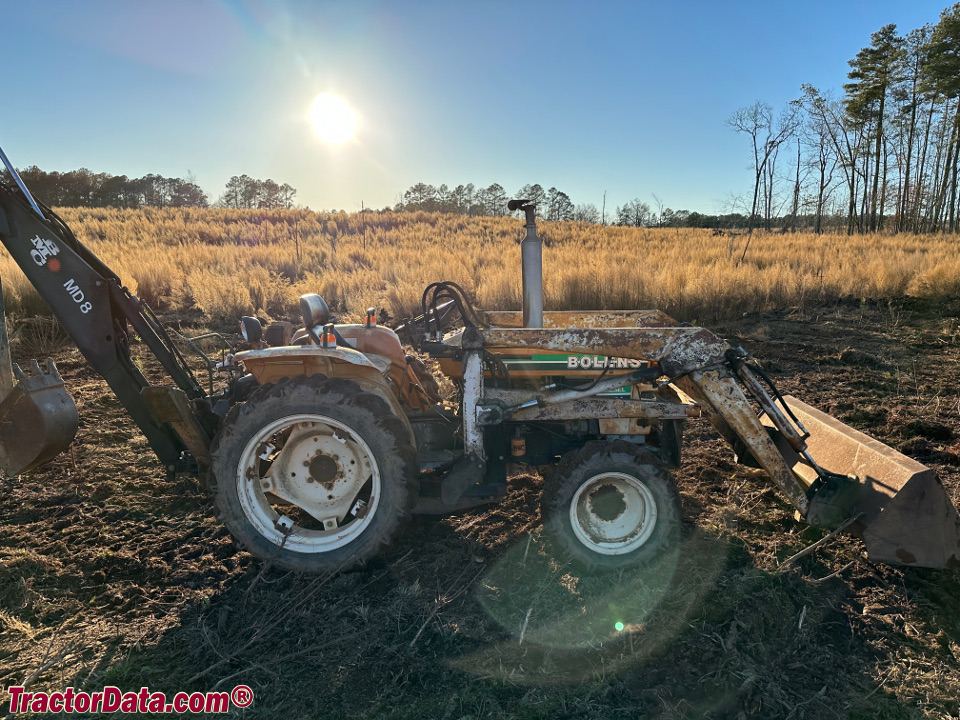

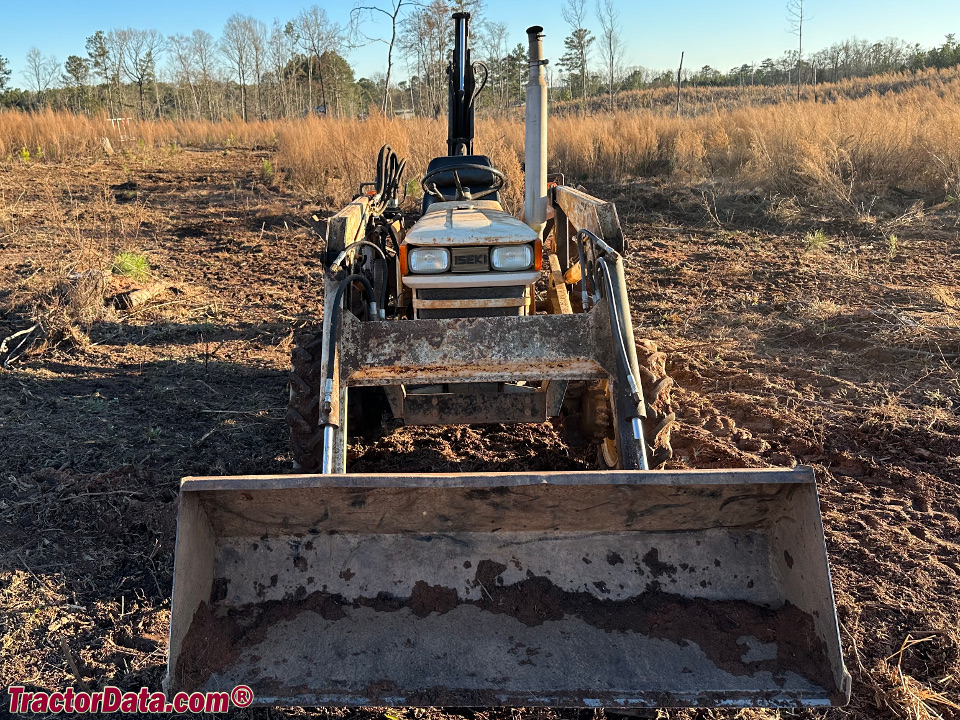

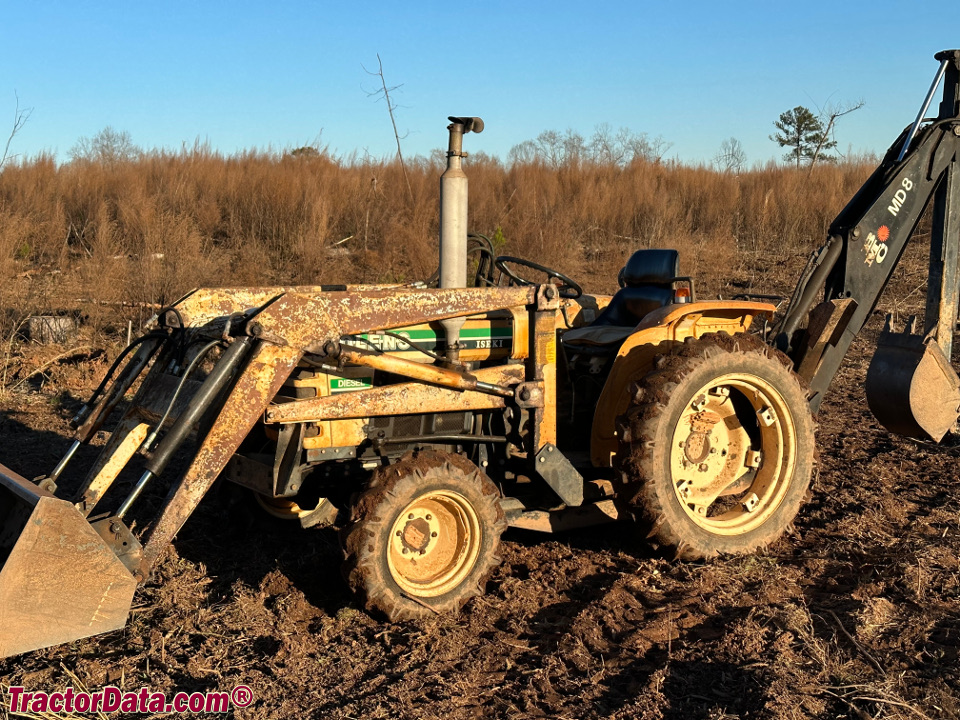

Bolens G194
Bolens G194 — Compact Utility tractor · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
863 kg
Hover a source tag to verify
Overview
DistributorBolensReference
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical shoe brakesReference
Open operator station. Two-post ROPS (#1960) optional with available canopy. Soft-side cab (#19706) optionalReference
Variants
G1922WDReference
G1944WDReference
TS1910similar Iseki modelReference
Engine
Isuzu 1.0L 2-cyl dieselReference
Fuel tank16.3 LReference
Engine14.2 kWReference
Isuzu 2AA1Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Power14.2 kWReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
Torque55.6 NmReference
Torque RPM2000Reference
StarterelectricReference
Starter volts12Reference
Transmission
18-speed gearReference
TypegearReference
Gears18 forward and 6 reverseReference
Clutchdry discReference
Three gears (1-3), plus reverse (R) in three ranges (L/M/H) with additional two-range shift.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure137.9 barReference
Pump flow11.7 lpmReference
Rear Type1Reference
ControlPosition controlReference
Rear PTOtransmissionReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase137 cmReference
Weight863 kgReference
Front tire6.00-14Reference
Rear tire8.3/8-24Reference
Weight136 kgReference
Weight272 kgReference
Standard tires (ag)Front: 6.00-14. Rear: 8.3/8-24Reference
Length267 cmReference
Width124 cmReference
Height195 cmReference
Ground clearance25 cmReference
Front tread96 cmReference
Rear tread96 to 121 cmReference
Bolens G194 attachments
54" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
54" Mower deck
Typemid-mount Bolens 1954Reference
Type3-blade with hydraulic liftReference
Cutting width137 cmReference
Cut height2 to 12 cmReference

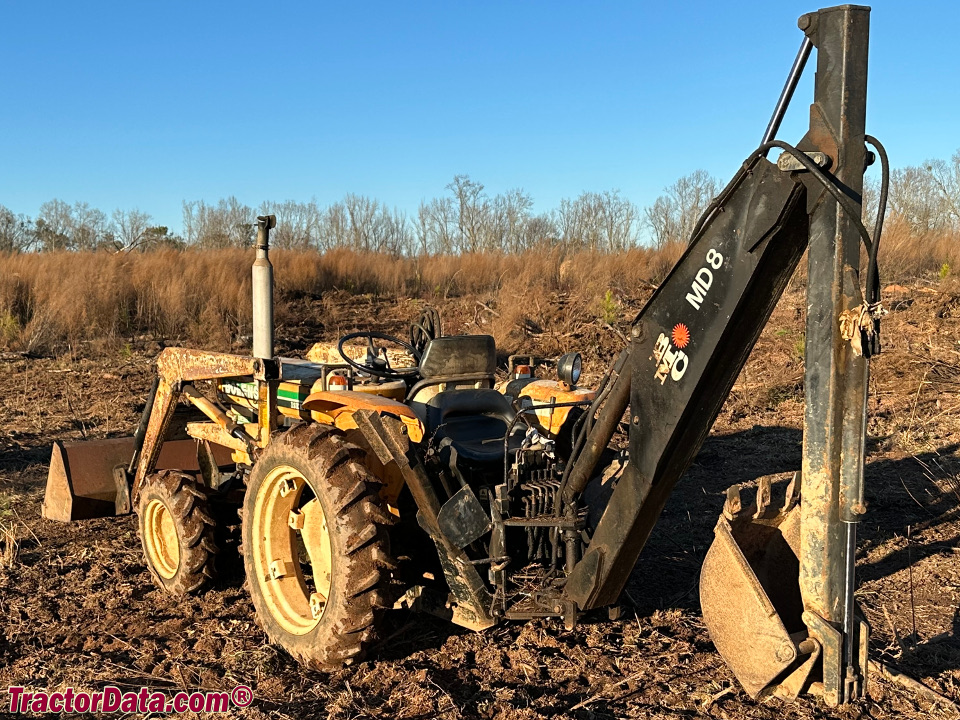

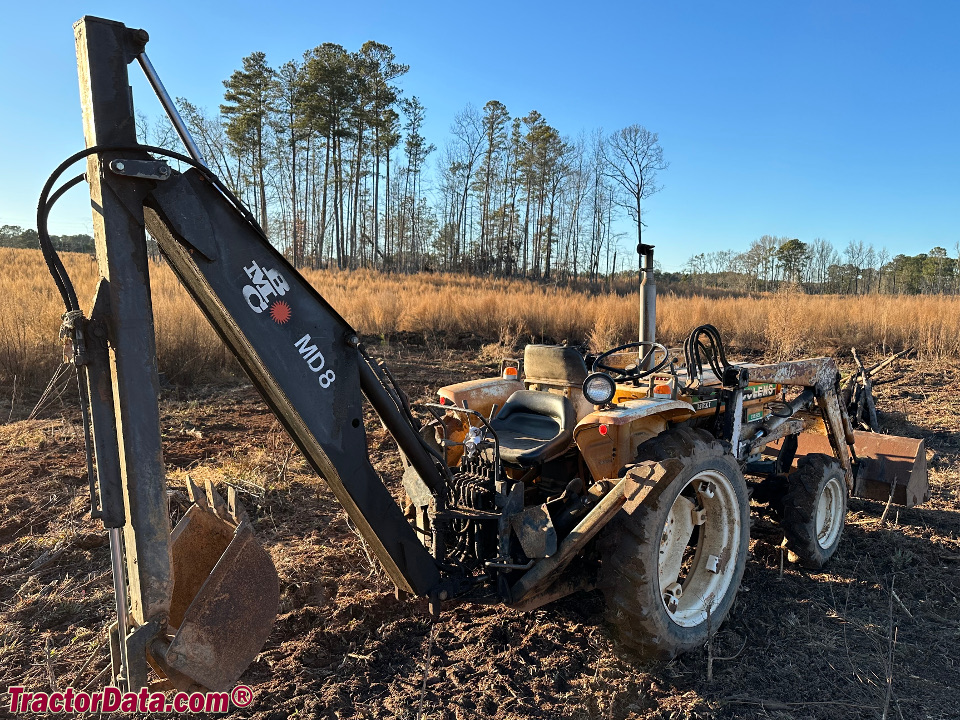

Bolens 17380 Backhoe
Backhoe typeBolens 17380 BackhoeReference
Digging depth198 cmReference
Reach from pivot238 cmReference
Loading height134 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
