Tractor · 1984Unverified

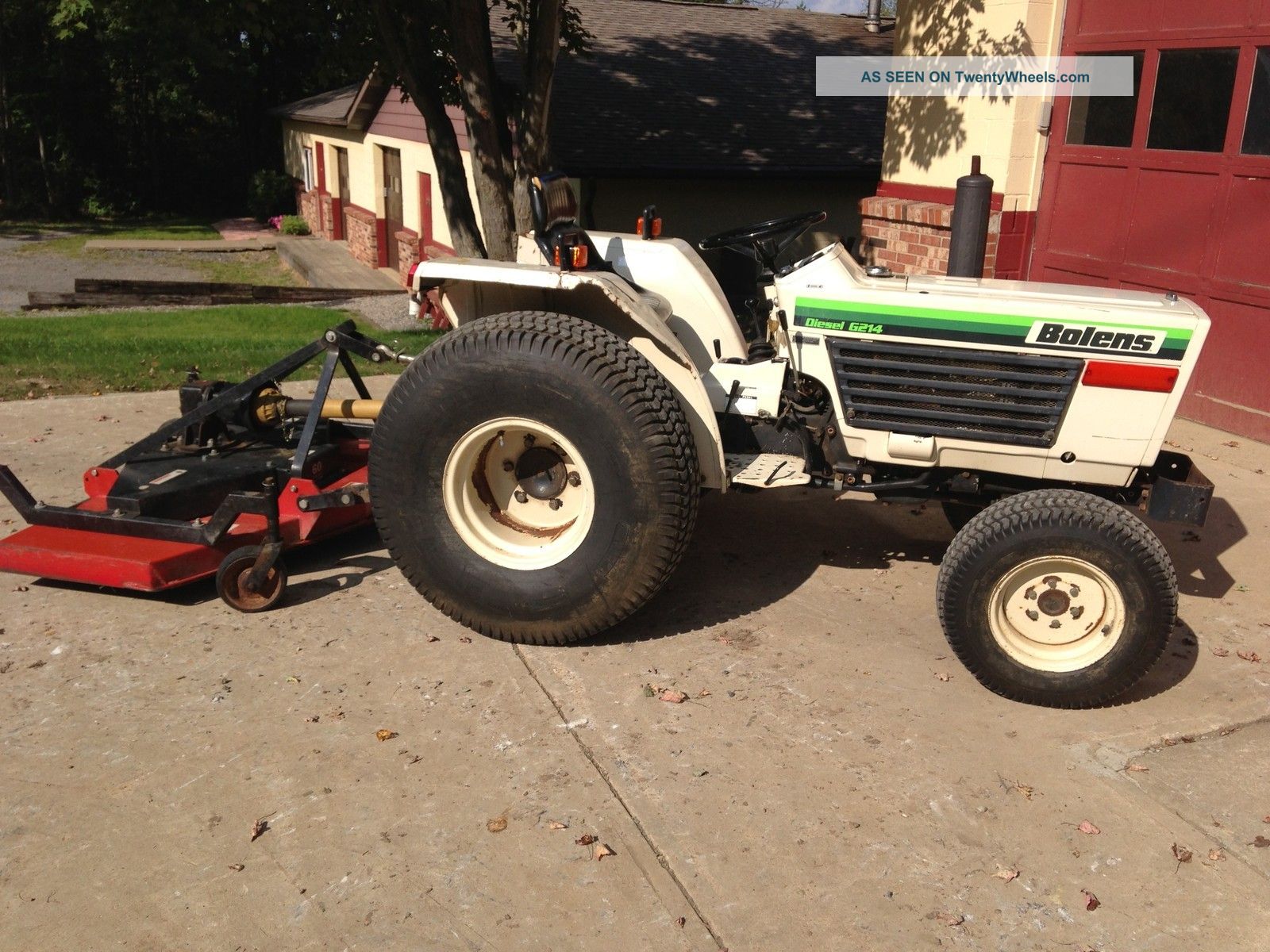

Bolens G214 G2104
Bolens G214 G2104 — Compact Utility tractor · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
760 kg
Hover a source tag to verify
Overview
DistributorBolensReference
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical internal expanding brakesReference
Open operator station.Reference
Variants
G2122WDReference
G2144WDReference
TE3210similar Iseki modelReference
Engine
Isuzu 1.2L 3-cyl dieselReference
Fuel tank22.7 LReference
Engine15.7 kWReference
Isuzu E3AF1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.2 LReference
Bore/Stroke76 x 86 mmReference
Power15.7 kWReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression22.5:1Reference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity7.0 LReference
Oil capacity3.0 LReference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 4 reverseReference
Clutchdry discReference
Oil capacity12.3 LReference
PTO & Hydraulics
Typeopen centerReference
Pressure137.9 barReference
Pump flow18.2 lpmReference
Rear Type0Reference
Controlposition controlReference
Rear lift635 kgReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2108Reference
Engine RPM1000@2444Reference
Dimensions
Wheelbase149 cmReference
Weight760 kgReference
Front tire6.00-12Reference
Rear tire12.4-16Reference
Weight158 kgReference
Weight272 kgReference
Standard tires (ag)Front: 6.00-12. Rear: 12.4-16Reference
Lawn/turf front24x8.50-12Reference
Lawn/turf rear13.6-16Reference
Length267 cmReference
Width108 cmReference
Height191 cmReference
Clearance (front axle)29 cmReference
Front tread94 cmReference
Rear tread87/103 cmReference
Bolens G214 attachments
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
G214 Serial Numbers
Location:Serial number plate on the left side of the main tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Battery CCA305Reference
Battery volts12Reference
Battery AH45Reference
Attachment overview
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount Bolens 17660Reference
Type3-blade with hydraulic liftReference
Cutting width152 cmReference
DrivebeltReference
Cut height2 to 12 cmReference
Bolens 17385 Backhoe
Backhoe typeBolens 17385 BackhoeReference
Digging depth198 cmReference
Reach from pivot238 cmReference
Loading height134 cmReference
Bucket Rotation162°Reference
Swing Arc180°Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
