Tractor · 1979Unverified

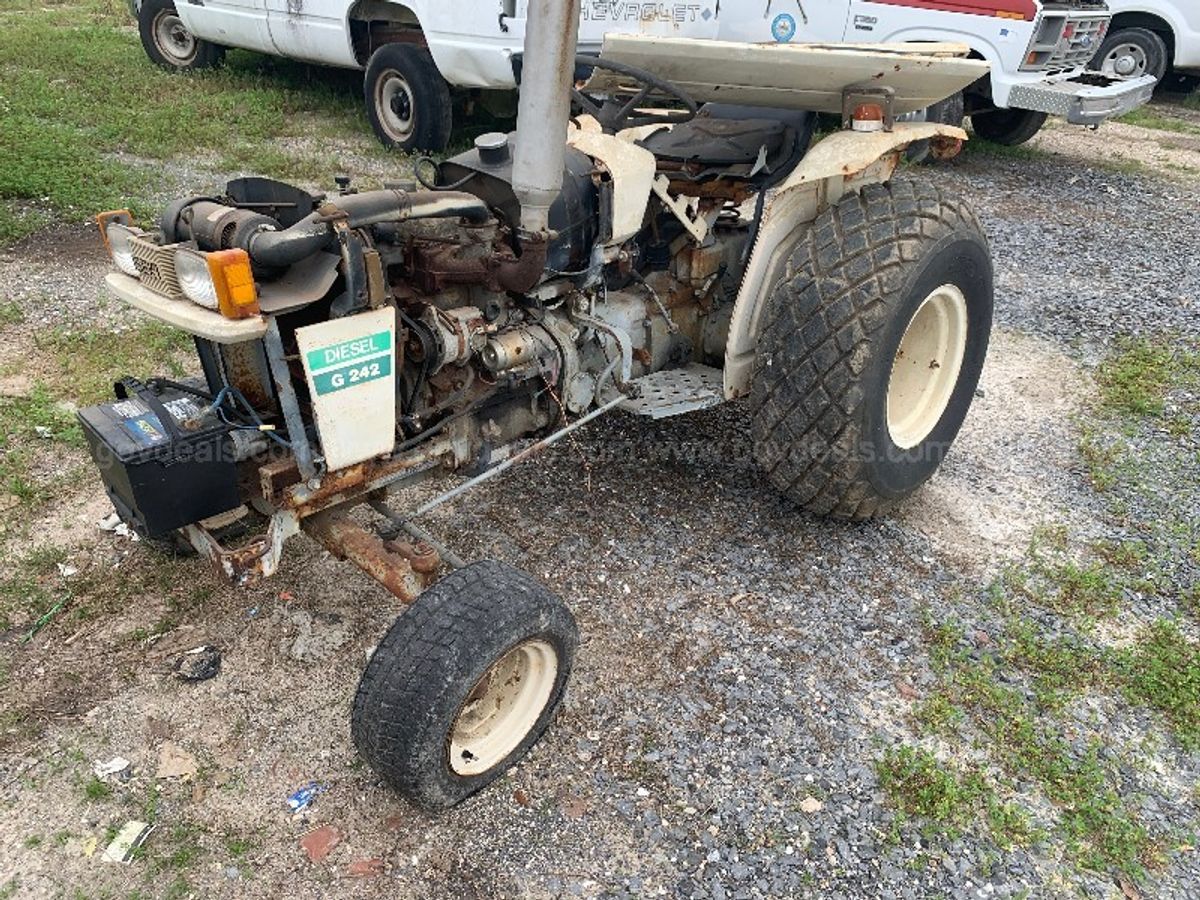

Bolens G242
Bolens G242 — Compact Utility tractor · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
758 kg
Hover a source tag to verify
Overview
DistributorBolensReference
ManufacturerIsekiReference
Compact Utility tractorReference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical shoe brakesReference
Open operator station. Two-post ROPS (#1960) optional with available canopy. Soft-side cab (#19706) optionalReference
Variants
G2422WDReference
G2444WDReference
TS2220similar Iseki modelReference
Engine
Isuzu 1.2L 2-cyl dieselReference
Fuel tank16.3 LReference
Engine17.9 kWReference
Isuzu 2AB1Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.2 LReference
Power17.9 kWReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
Torque67.8 NmReference
Torque RPM2000Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
PTO & Hydraulics
Typeopen centerReference
Pressure137.9 barReference
Pump flow11.7 lpmReference
Rear Type1Reference
ControlPosition controlReference
Rear PTOtransmissionReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase148 cmReference
Weight758 kgReference
Front tire4.00-12Reference
Rear tire8.3/8-24Reference
Weight136 kgReference
Weight272 kgReference
Standard tires (ag)Front: 4.00-12. Rear: 8.3/8-24Reference
Length267 cmReference
Width120 cmReference
Height191 cmReference
Ground clearance29 cmReference
Front tread94 cmReference
Rear tread96 to 121 cmReference
Bolens G242 attachments
54" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
54" Mower deck
Typemid-mount Bolens 1954Reference
Type3-blade with hydraulic liftReference
Cutting width137 cmReference
Cut height2 to 12 cmReference
Bolens 17380 Backhoe
Backhoe typeBolens 17380 BackhoeReference
Digging depth198 cmReference
Reach from pivot238 cmReference
Loading height134 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
