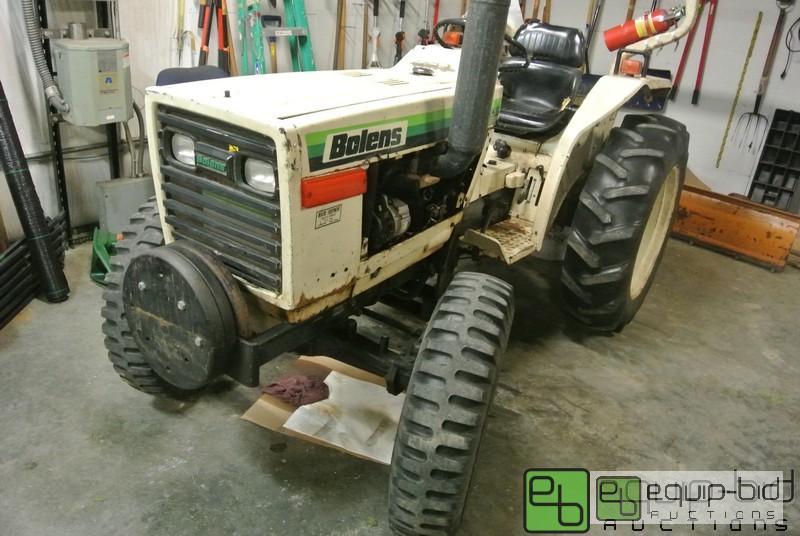

The Bolens G274 is a compact tractor with a rated output of 27 hp. It was manufactured from 1983 to 1989 and features a 3-cylinder diesel liquid-cooled engine, which drives four-wheel drive via an 18-speed gearbox. The listed weight of the G274 is 1106 kg, and it is designed for tasks covering approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
1106 kg
Catalogue coverage
Variants represented
2
Richest spec table
66 rows
Recorded power
27 hp
Recorded weight
1106 kg
Transmissions
18-speed synchromesh
Production years
1983-1989
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorBolensReference
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanial wet disc brakesReference
Two-post fixed ROPS.Reference
Variants
G272/27022WDReference
G274/27044WDReference
TE4270similar Iseki modelReference
Engine
Isuzu 1.3L 3-cyl dieselReference
Engine20.1 kWReference
Isuzu E3AE1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke80 x 86 mmReference
Power20.1 kWReference
Compression22:1Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.7 LReference
Coolant capacity6.6 LReference
Transmission
18-speed synchromeshReference
TypesynchromeshReference
Gears18 forward and 6 reverseReference
Oil capacity34.1 LReference
Capacities
Fuel27.4 LReference
Steering2.0 LReference
PTO & Hydraulics
Typeopen centerReference
Pressure137.9 barReference
Pump flow20.8 lpmReference
Steering cap.2.0 LReference
Rear TypeIReference
Controlposition controlReference
Rear lift1134 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase165 cmReference
Weight1106 kgReference
Weight272 kgReference
Length293 cmReference
Width132 cmReference
Height203 cmReference
Ground clearance33 cmReference
Bolens G274 attachments
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery CCA305Reference
Battery volts12Reference
Attachment overview
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
Bolens 17385 Backhoe
Backhoe typeBolens 17385 BackhoeReference
Digging depth198 cmReference
Reach from pivot238 cmReference
Loading height134 cmReference
Bucket Rotation162°Reference
Swing Arc180°Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
