Tractor · 1985Unverified

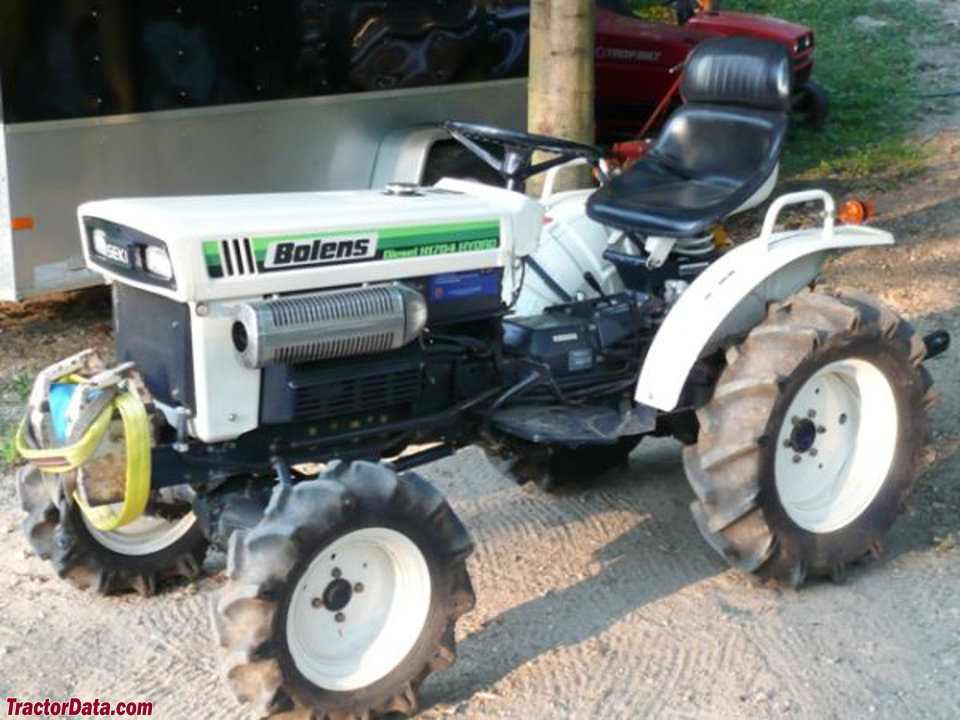

Bolens H1704
Bolens H1704 — Sub-Compact Utility tractor · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
575 kg
Hover a source tag to verify
Overview
DistributorBolensReference
ManufacturerIsekiReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical standardReference
Manual steeringReference
Mechanical internal expanding brakesReference
Open operator station.Reference
Variants
G174gear driveReference
H1704hydrostaticReference
TX2160similar Iseki modelReference
Engine
Mitsubishi 0.8L 3-cyl dieselReference
Fuel tank12.0 LReference
Engine12.7 kWReference
Mitsubishi K3BReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke68 x 78 mmReference
Power12.7 kWReference
Air cleanerdry elementReference
Pre-heatingglow plugsReference
Compression22:1Reference
Rated RPM2600Reference
Torque47.1 NmReference
Torque RPM1800Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity4.2 LReference
Oil capacity2.6 LReference
Oil change100 hReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Oil capacity13.0 LReference
PTO & Hydraulics
Typeopen centerReference
Pressure127.6 barReference
Pump flow11.4 lpmReference
Rear TypeI/0Reference
Controlposition controlReference
Rear lift376 kgReference
Rear PTO Type454/724/1185Reference
Engine RPM454@2700Reference
Engine RPM724@2700Reference
Engine RPM1185@2700Reference
Dimensions
Wheelbase128 cmReference
Weight575 kgReference
Front tire5.00-12Reference
Rear tire8-16Reference
Weight124 kgReference
Weight222 kgReference
Weight272 kgReference
Standard tires (ag)Front: 5.00-12. Rear: 8-16Reference
Length195 cmReference
Width114 cmReference
Height167 cmReference
Ground clearance24 cmReference
Front tread76 cmReference
Rear tread77/88 cmReference
Bolens H1704 attachments
48" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Battery CCA305Reference
Battery volts12Reference
Attachment overview
48" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
48" Mower deck
Typemid-mount Bolens 17350Reference
Type3-blade with hydraulic liftReference
Cutting width121 cmReference
DriveshaftReference
Cut height2 to 12 cmReference
Bolens 1380 Backhoe
Backhoe typeBolens 1380 BackhoeReference
Digging depth182 cmReference
Reach from pivot274 cmReference
Loading height124 cmReference
Bucket Rotation150°Reference
Swing Arc135°Reference
Bolens 17385 Backhoe
Backhoe typeBolens 17385 BackhoeReference
Digging depth198 cmReference
Reach from pivot238 cmReference
Loading height134 cmReference
Bucket Rotation162°Reference
Swing Arc180°Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
