· 1986 Unverified Bolens Villa 936 Bolens Villa 936 — Front-mount mower · 11 hp. Reference specifications; pending source verification.
The Bolens Villa 936 is a lawn tractor with an 11 hp rated power output, typical for its class. It was manufactured from 1986 to 1988. Key features of the model include a 1-cylinder petrol air-cooled engine and two-wheel drive with a 5-speed gearbox. The tractor's operating weight is listed as 183 kg, making it suitable for operations covering up to 200 ac.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Richest spec table
38 rows
Transmissions
5-speed gear
Production years
1986-1988
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Specifications Description Maintenance Troubleshooting Ownership Reviews Q&A Docs & sources
Hover a source tag to verify UK metric US imperial
Manufacturer Bolens Reference
Front-mount mower Reference
Two-wheel drive Reference
Manual steering Reference
Mechanical disc brakes Reference
Open operator station. Reference
11HP Briggs & Stratton 399cc 1-cyl gasoline Reference
Fuel tank 2.8 L Reference
Briggs & Stratton Reference
gasoline Reference
1-cylinder Reference
air-cooled vertical-shaft Reference
Displacement 24.4 ci Reference
Bore/Stroke 87 x 67 mm Reference
Power (gross) 8.2 kW Reference
Starter electric Reference
Starter volts 12 Reference
Oil capacity 1.4 L Reference
5-speed gear Reference
Transmission Peerless Reference
Type gear Reference
Gears 5 forward and 1 reverse Reference
Weight 183 kg Reference
Front tire 16x6.50-8 Reference
Rear tire 13x5.00-6 Reference
Lawn/turf front 16x6.50-8 Reference
Lawn/turf rear 13x5.00-6 Reference
Length 203 cm Reference
Width 114 cm Reference
Height (steering wheel) 102 cm Reference
36" front-mount mower deck Reference
Ground negative Reference
Charging amps 5 Reference
Battery CCA 160 Reference
Battery volts 12 Reference
Type front-mount Bolens Reference
Type 2-blade Reference
Cutting width 91 cm Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
Partner tool · Free Working out if you can afford this tractor?
YourIncomeCalculator.com — free, HMRC-aligned take-home pay, self-employment & VAT calculators. No sign-up.
Calculate your take-home pay Recommended kit
Handy kit for owners Popular tractor and farm accessories owners pick up for machines like this.
Disclosure: some links on this page are affiliate links. If you buy through them we may earn a small commission — at no extra cost to you. Learn more .
Compare the Bolens Villa 936 head-to-head Similar lawn tractors Bolens
3211G ST110 Unverified
11 hp
Bolens

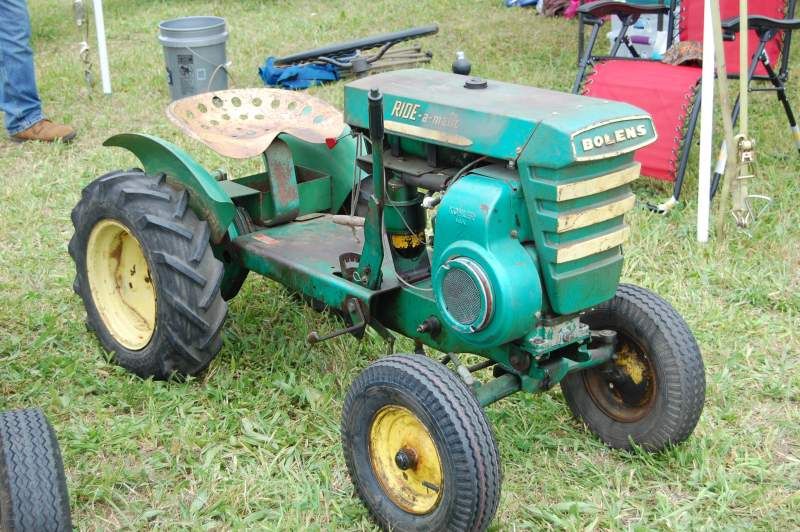

1130 Unverified
11 hp
Bolens
FS 943 Unverified
11 hp
Bolens

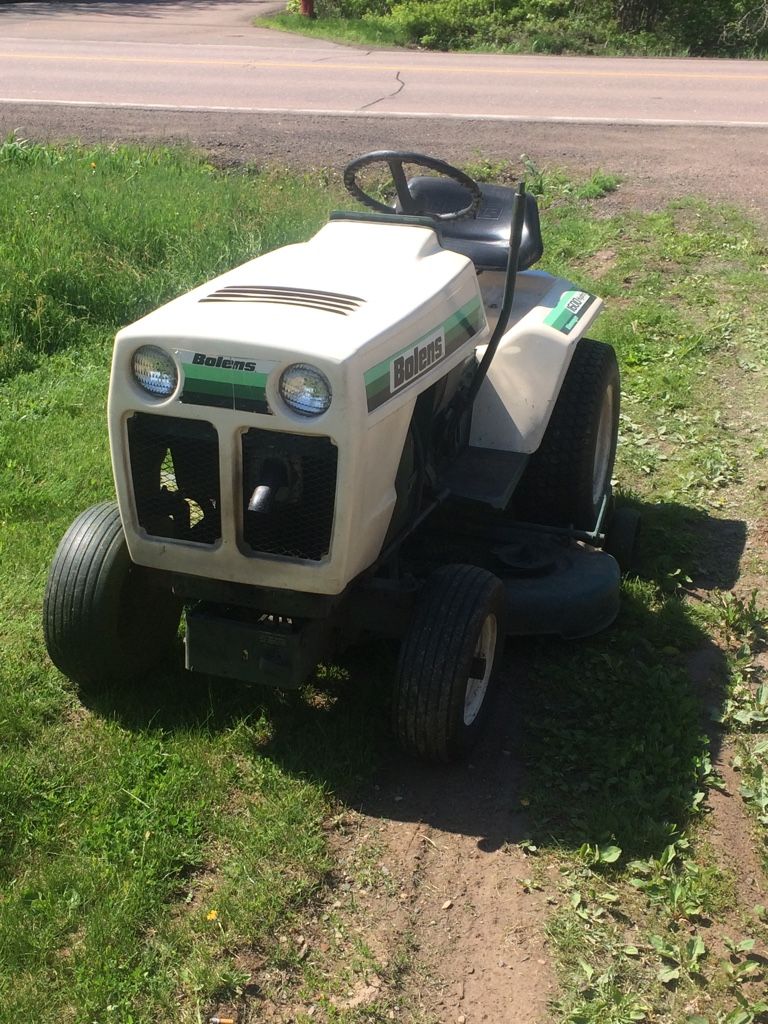

1136 Unverified
11 hp
Bolens

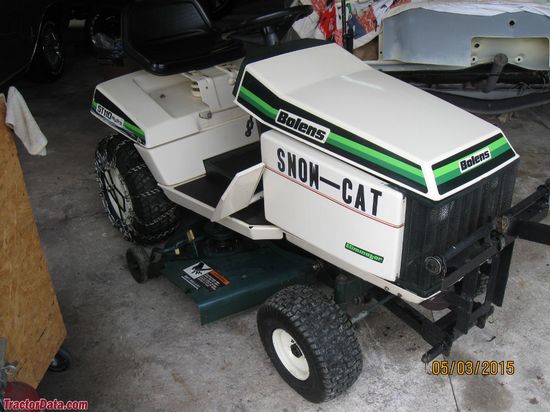

3011G ST110 Unverified
11 hp
Bolens

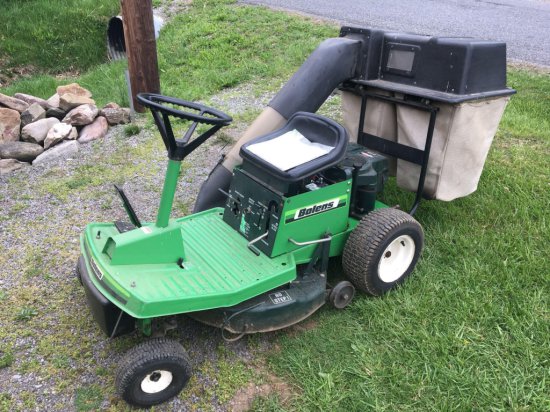

H11LT 1011HM Unverified
