Tractor · 1953Unverified

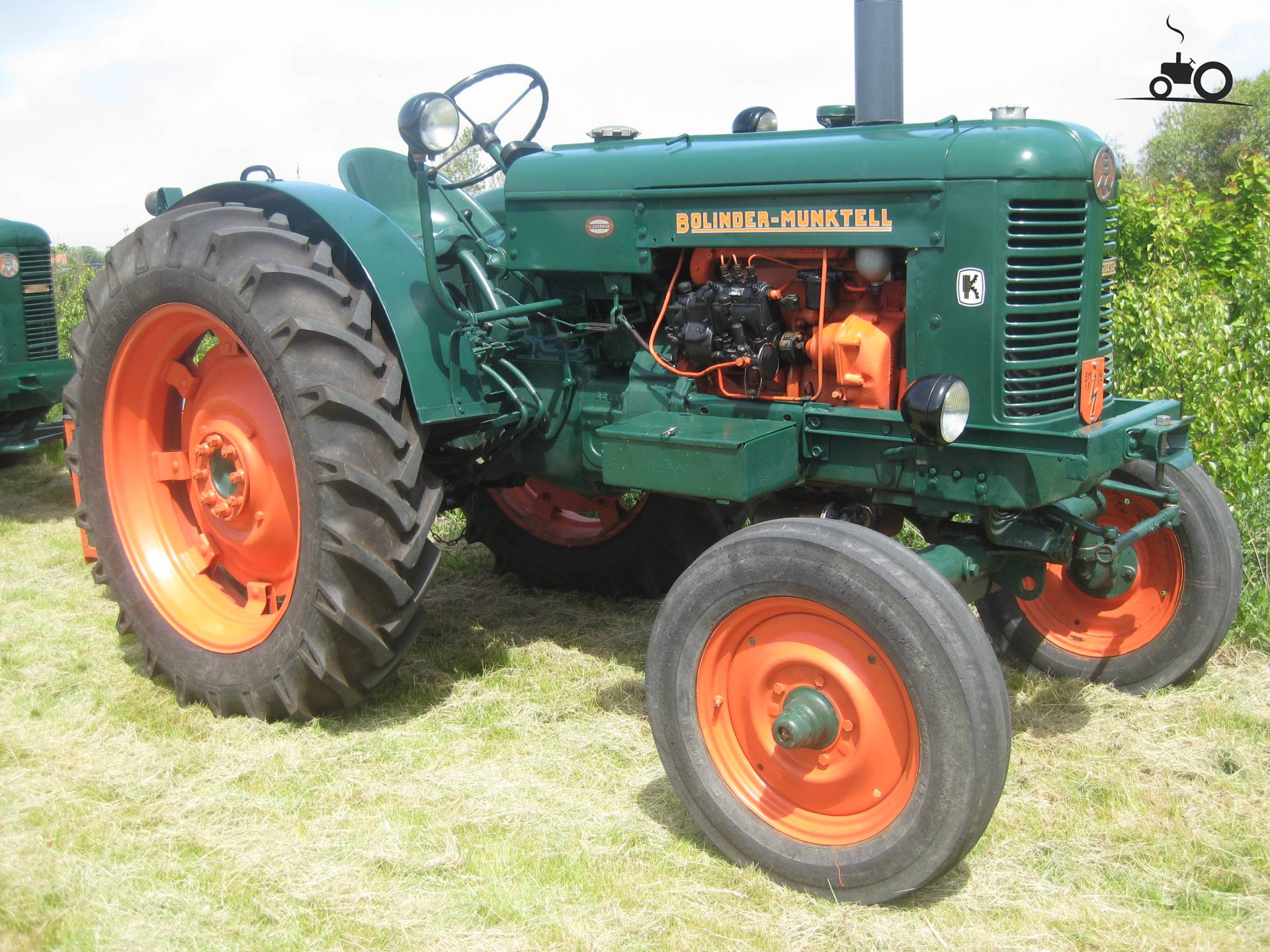

Bolinder-Munktell 36
Bolinder-Munktell 36 — Row-Crop tractor · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
2460 kg
Hover a source tag to verify
Overview
ManufacturerBolinder-Munktell (a part of Volvo)Reference
Row-Crop tractorReference
Total built1632Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Bolinder 3.4L 3-cyl dieselReference
Fuel tank65.1 LReference
Engine31.2 kWReference
Bolinder 1053Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke105 x 130 mmReference
Power31.2 kWReference
Rated RPM1800Reference
Starter volts12Reference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)28.0 kWReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1500Reference
Dimensions
Wheelbase200 cmReference
Weight2460 kgReference
Front tire6.00x19Reference
Rear tire11x38Reference
Ag front6.00x19Reference
Ag rear11x38Reference
Length314 cmReference
Width169 cmReference
Height217 cmReference
Clearance (front axle)58 cmReference
Clearance (drawbar)52 cmReference
Front tread128 to 170 cmReference
Rear tread134 to 194 cmReference
Electrical
Charging systemgeneratorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
