Tractor · 1947Unverified

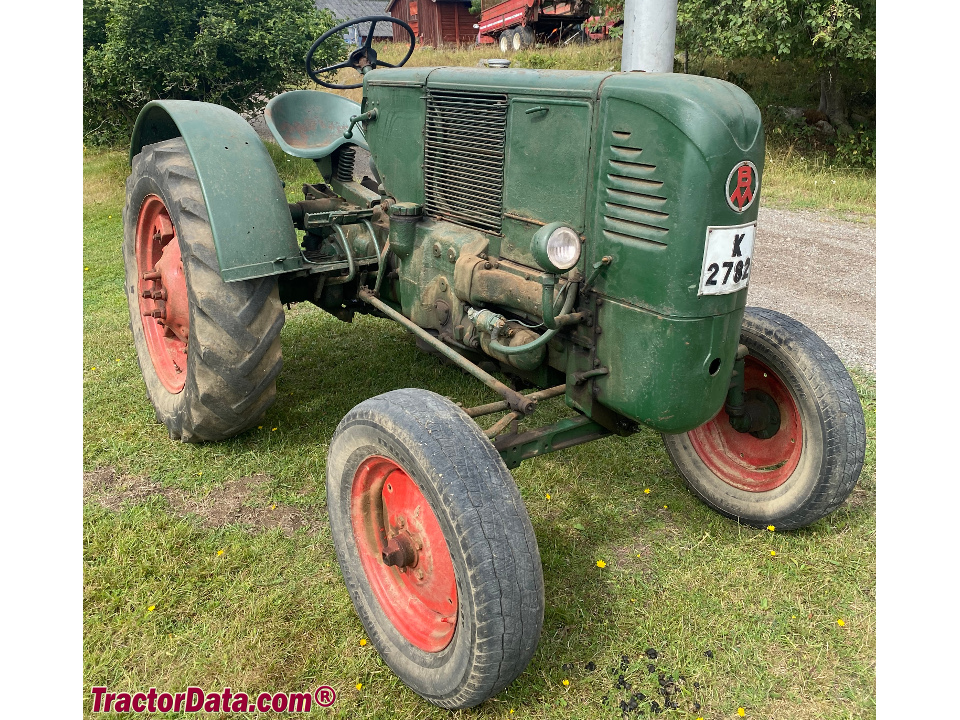

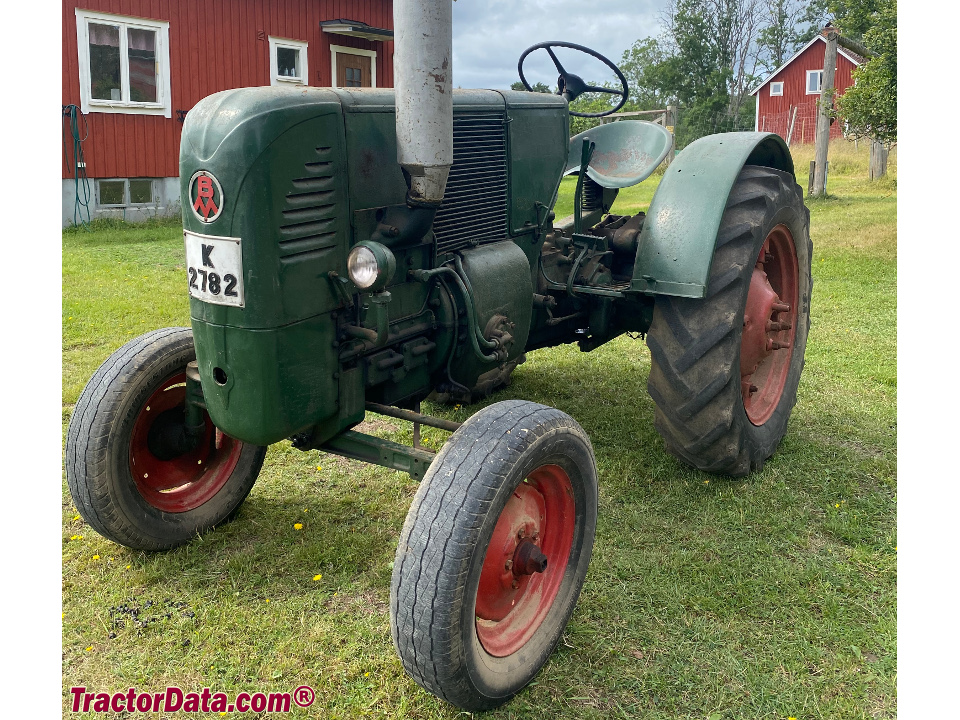

Bolinder-Munktell BM-10
Bolinder-Munktell BM-10 — Standard-tread tractor · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
1300 kg
Hover a source tag to verify
Overview
ManufacturerBolinder-MunktellReference
Standard-tread tractorReference
Built in Eskilstuna, SwedenReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Bolinder 2.7L 2-cyl dieselReference
Fuel tank35.2 LReference
Engine14.9 kWReference
Bolinder W3Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke120 x 120 mmReference
Power14.9 kWReference
Rated RPM1200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity5.0 LReference
Coolant capacity9.0 LReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO540 (1.375)Reference
Dimensions
Wheelbase165 cmReference
Weight1300 kgReference
Front tire5.50x16Reference
Rear tire10x28Reference
Ag front5.50x16Reference
Ag rear10x28Reference
Length262 cmReference
Width166 cmReference
Height (steering wheel)161 cmReference
Height (hood)142 cmReference
Ground clearance40 cmReference
Front tread119/137 cmReference
Rear tread119/130/139/150 cmReference
Electrical
Charging systemgeneratorReference
Batteries2Reference
Battery volts6Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
