Search/Tractor/Bombardier/MPV-20

Tractor · 1984Unverified

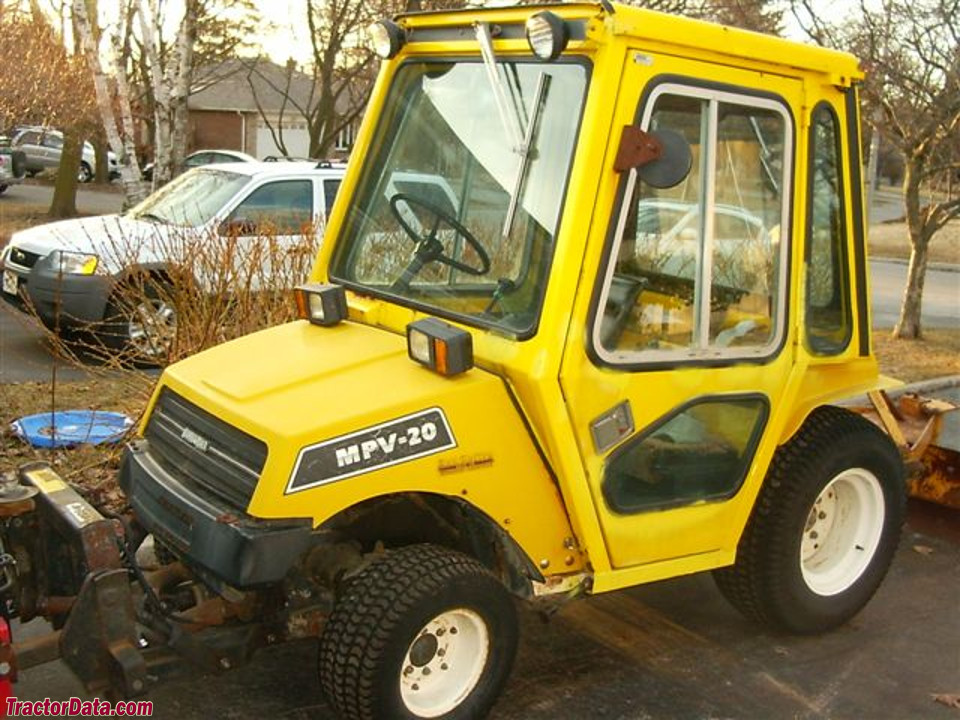

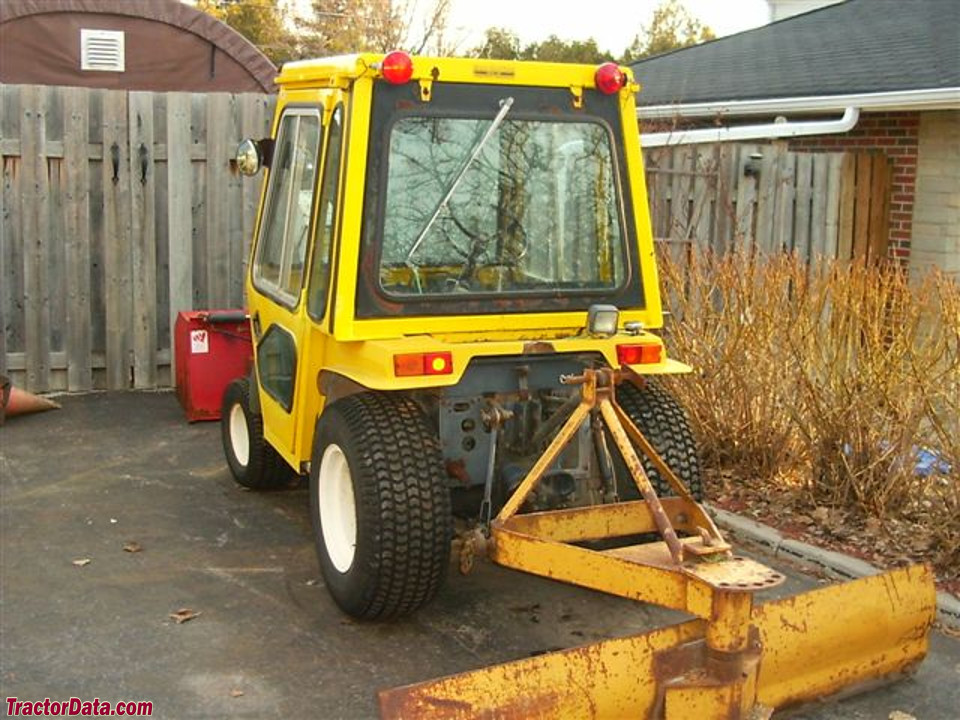

Bombardier MPV-20

Name: Bombardier MPV-20
Brand: Bombardier

Bombardier MPV-20 — Truck-type tractor · 20 hp. Reference specifications; pending source verification.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

855 kg

Hover a source tag to verify

Overview

DistributorBombardierReference

ManufacturerHinomotoReference

Truck-type tractorReference

Built in JapanReference

The Bombardier MPV-20 is the same as the Hinomoto JF1.Reference

Drive4x4 4WDReference

Manual steeringReference

Dry shoe brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Toyosha 1.0L 3-cyl dieselReference

Engine (gross)14.9 kWReference

Toyosha CS100Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.0 LReference

Bore/Stroke73 x 80 mmReference

Power (gross)14.9 kWReference

Rated RPM2600Reference

Starter volts12Reference

Coolant capacity4.4 LReference

Oil capacity2.2 LReference

Transmission

9-speedReference

Gears9 forward and 3 reverseReference

Oil capacity17.0 LReference

Oil typeSAE 80 GL-4Reference

Three gears, plus reverse, in three ranges.Reference

PTO & Hydraulics

PTO (claimed)12.4 kWReference

Hydraulic system19.3 LReference

Capacity19.3 LReference

Pressure171.7 barReference

Rear TypeIReference

Rear lift (at ends)822 kgReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2363Reference

Engine RPM789@2363Reference

Capacities

Fuel18.2 LReference

Dimensions

Wheelbase154 cmReference

Weight855 kgReference

Front tire5-14Reference

Rear tire8-18Reference

Ag front5-14Reference

Ag rear8-18Reference

Lawn/turf front20.5x8.00-10Reference

Lawn/turf rear29x12.00-15Reference

Length266 cmReference

Width123 cmReference

Height (steering wheel)137 cmReference

Height (ROPS)187 cmReference

Ground clearance27 cmReference

Front tread86 cmReference

Rear tread85 cmReference
