Branson 1905

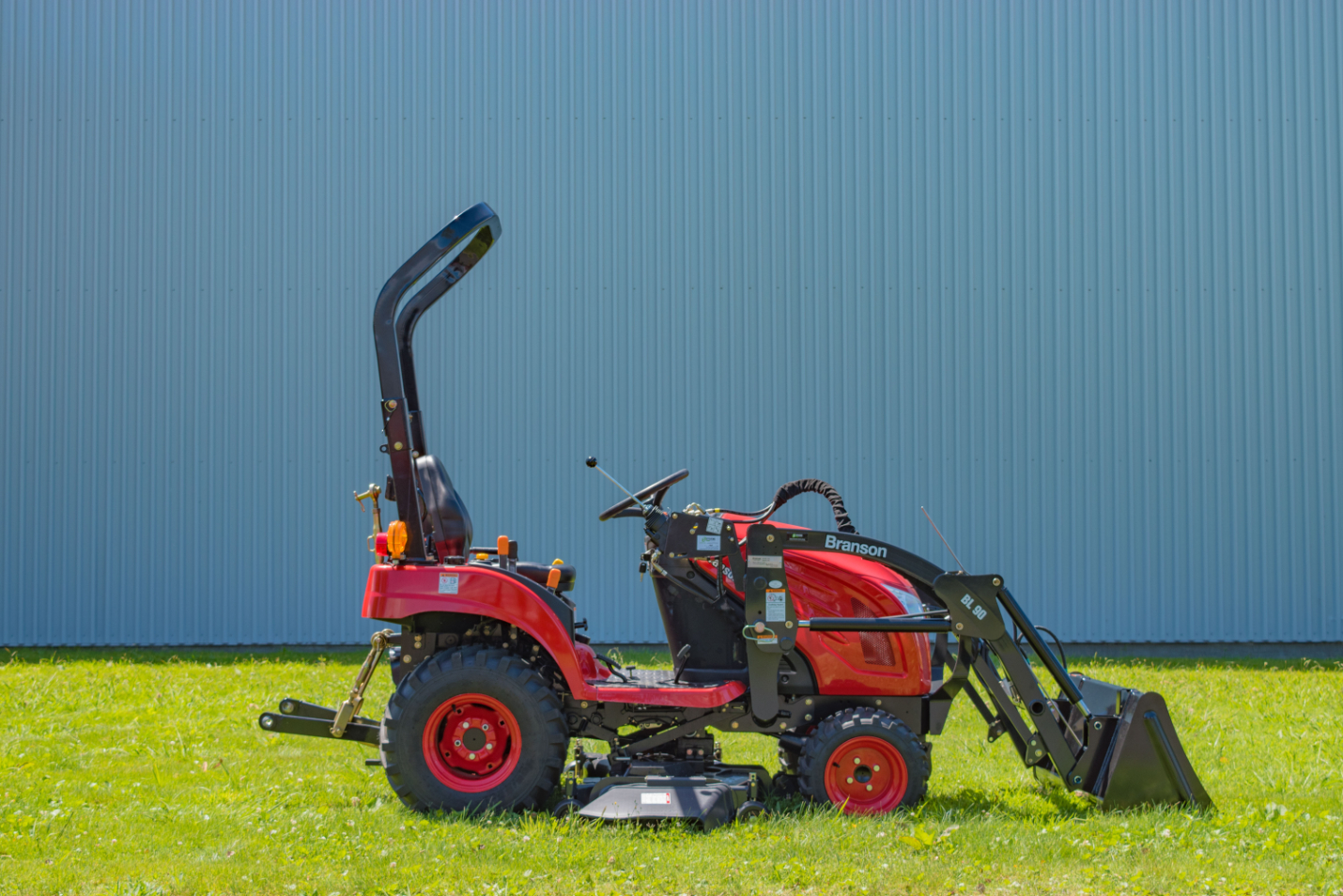

Branson 1905 — Sub-Compact Utility tractor · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
650 kg
Hover a source tag to verify
Overview
ManufacturerBranson (a part of Kukje)Reference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Yanmar 1.0L 3-cyl dieselReference
Engine (gross)14.2 kWReference
Yanmar 3TNV74FReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke74 x 77 mmReference
EmissionsTier IVReference
Power (gross)14.2 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Rated RPM3000Reference
StarterelectricReference
Starter volts12Reference
Oil capacity2.0 LReference
Coolant capacity3.5 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)10.0 kWReference
Hydraulic system13.6 LReference
Typeopen centerReference
Capacity13.6 LReference
Pump flow15.8 lpmReference
Total flow26.4 lpmReference
Steering flow8.0 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)498 kgReference
Rear lift (at 24"/610mm)307 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2500Reference
Capacities
Fuel25.0 LReference
Front axle2.5 LReference
Dimensions
Wheelbase134 cmReference
Weight650 kgReference
Front tire16x7.50-9Reference
Rear tire24x12.00-12Reference
Ag front16x7.50-9Reference
Ag rear24x12.00-12Reference
Lawn/turf front16x7.50-8Reference
Lawn/turf rear16x12.00-12Reference
Length239 cmReference
Width113 cmReference
Height (ROPS)219 cmReference
Clearance (front axle)21 cmReference
Branson 1905 attachments
54" mid-mount mower deckReference
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Charging volts12Reference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
Front-end loaderReference
54" Mower deck
Typemid-mount BransonReference
Type3-bladeReference
Cutting width137 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
