Tractor · 2007Unverified
Branson 2400
Branson 2400 — Compact Utility tractor · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1958 to 2023 pounds
Hover a source tag to verify
Overview
ManufacturerBranson (a part of Kukje)Reference
Compact Utility tractorReference
Built in Yangsu-ri, South KoreaReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Variants
2400hhydrostatic transmissionReference
Engine
Kukje 1.2L 3-cyl dieselReference
Fuel tank23.0 LReference
Engine (gross)17.9 kWReference
Kukje A1100N2Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.2 LReference
Bore/Stroke78 x 82 mmReference
Power (gross)17.9 kWReference
Air cleanerdry elementReference
Rated RPM2600Reference
Starter typeelectricReference
Transmission
6-speed gearReference
hydrostaticReference
Gear Weight888 kgReference
TypegearReference
Gears6 forward and 2 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)16.4 kWReference
Pump flow18.2 lpmReference
Total flow31.0 lpmReference
Steering flow12.9 lpmReference
Rear TypeIReference
Rear PTO Type540/960Reference
Mid PTO Type2500Reference
Dimensions
Wheelbase150 cmReference
Weight1958 to 2023 poundsReference
Industrial front12x8.5-12Reference
Industrial rear12-16.5Reference
Length303 cmReference
Width112 cmReference
Height (ROPS)221 cmReference
Hydro Weight917 kgReference
Ground clearance34 cmReference
Front tread85 cmReference
Rear tread87 cmReference
Branson 2400 attachments

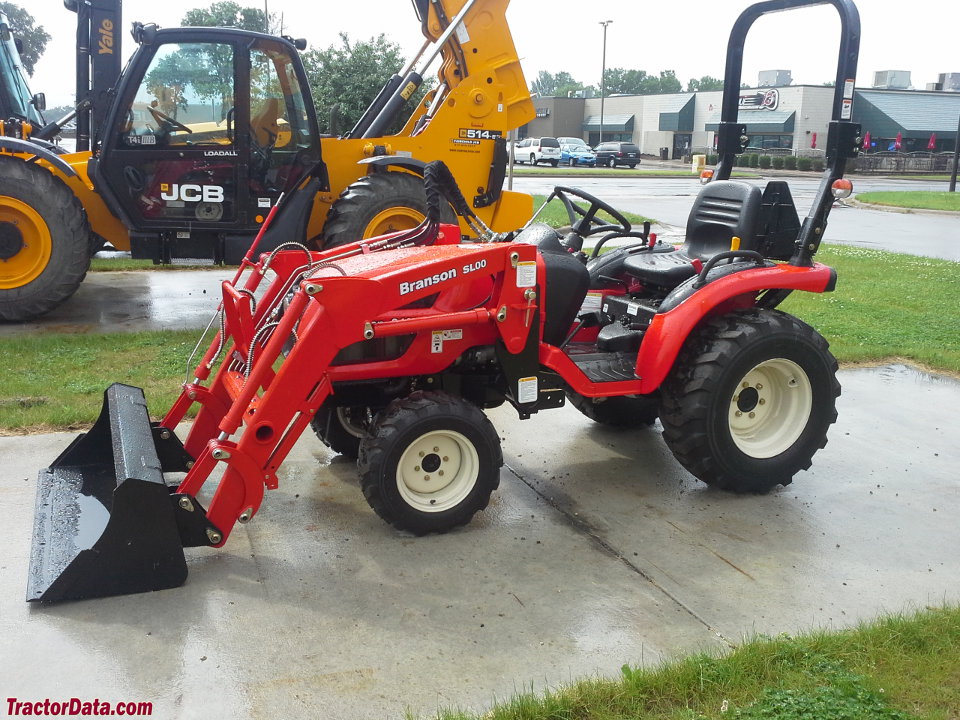

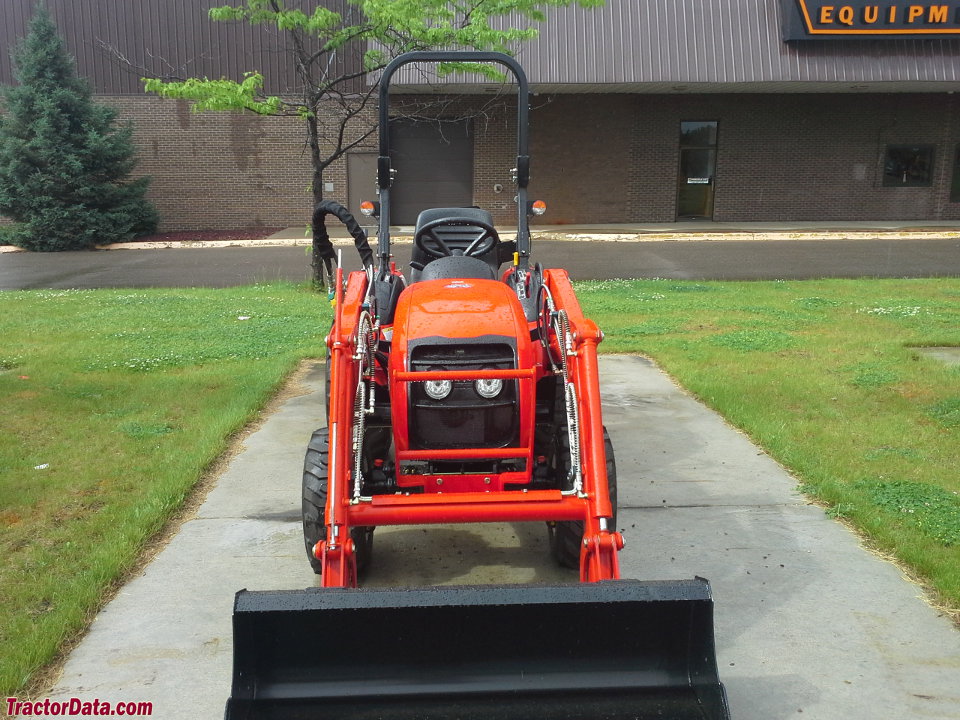

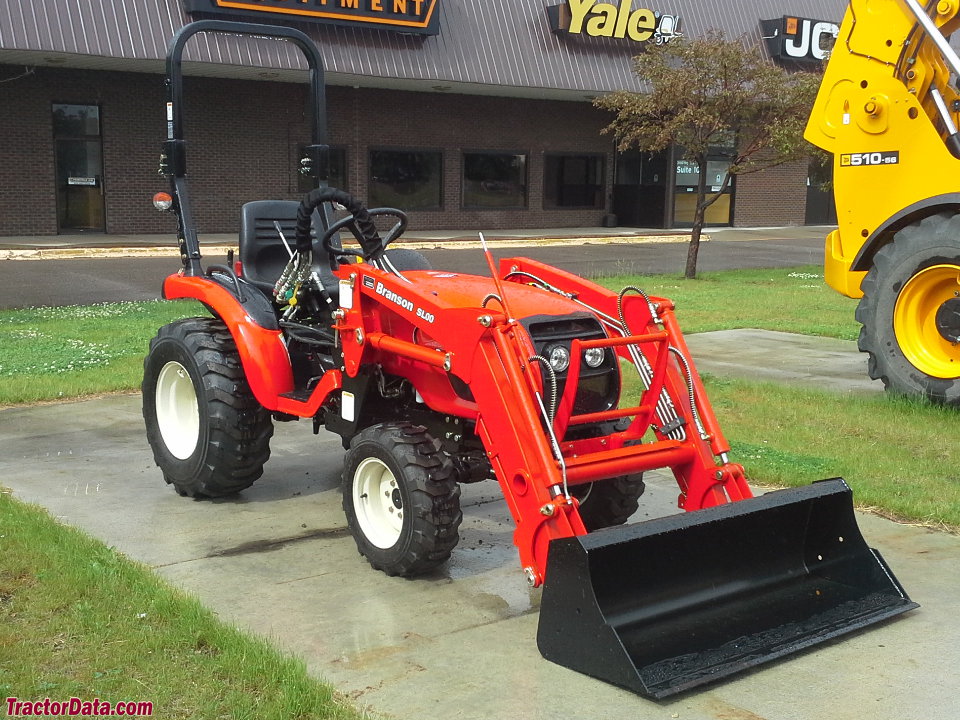

front-end loaderReference
2400 Serial Number Location
Serial number plate on the right side of the Branson 2400 tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
