Tractor · 2020Unverified

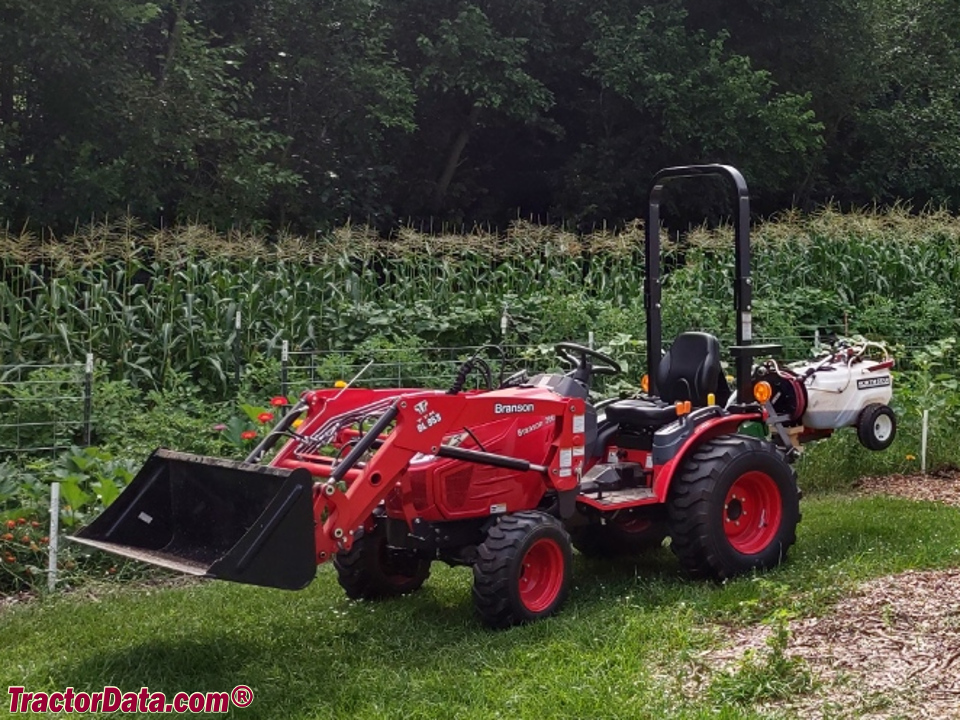

Branson 2505h

Name: Branson 2505h
Brand: Branson

Branson 2505h — 05 Series · 25 hp. Reference specifications; pending source verification.

The Branson 2505h is a lightweight tractor with a rated power of 25 hp, situated at the lower end of its class. Manufactured between 2020 and 2023, this model features a 3-cylinder diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. It has an operating weight of 742 kg, making it suitable for use on 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Weight

742 kg

Catalogue coverage

Variants represented

Richest spec table

73 rows

Recorded power

25 hp

Recorded weight

742 kg

Transmissions

hydrostatic

Production years

2020-2023

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerBranson (a part of Kukje)Reference

Compact Utility tractorReference

Built in South KoreaReference

Four-wheel driveReference

Differential lockmechnanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Yanmar 1.3L 3-cyl dieselReference

Fuel tank22.0 LReference

Engine (gross)18.3 kWReference

Yanmar 3TNV80FReference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.3 LReference

Bore/Stroke80 x 84 mmReference

EmissionsTier IVReference

Power (gross)18.3 kWReference

Fuel systemindirect injectionReference

Rated RPM3000Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

PTO (claimed)14.0 kWReference

Typeopen centerReference

Rear valves2Reference

Pump flow15.9 lpmReference

Total flow26.5 lpmReference

Steering flow10.6 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)550 kgReference

Rear lift (at 24"/610mm)499 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTO Type2000Reference

Dimensions

Wheelbase146 cmReference

Weight742 kgReference

Front tire6-12Reference

Rear tire9.5-16Reference

Weight123 kgReference

Standard tires (ag)Front: 6-12. Rear: 9.5-16Reference

Lawn/turf front20x8.00-10Reference

Lawn/turf rear29x12.5-15Reference

Industrial front23x8.50-12Reference

Industrial rear12-16.5Reference

Length255 cmReference

Width116 cmReference

Height (ROPS)231 cmReference

Ground clearance24 cmReference

Branson 2505h attachments

60" mid-mount mower deckReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

Branson BL95S loaderReference

Branson BL95SL loaderReference

BackhoeReference

60" Mower deck

Typemid-mount Branson BM60GReference

Type3-bladeReference

Cutting width152 cmReference

Overall width188 cmReference

Cut height2 to 10 cmReference

Branson BH95 Backhoe

Backhoe typeBranson BH95 BackhoeReference

Transport height179 cmReference

2-Foot flat digging depth193 cmReference

Loading height162 cmReference

Bucket Rotation180°Reference

Swing Arc150°Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
